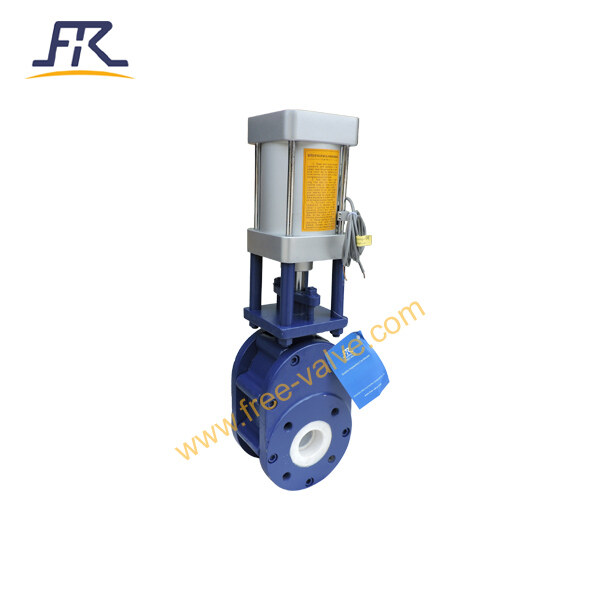

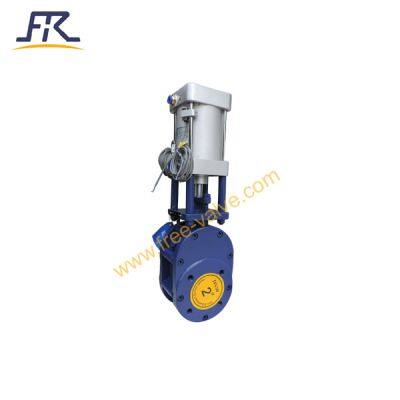

Help CenterAPI Pneumatic Ceramic Lined Double Gate Valve
Related Products
-
Lever Operated Carbon Steel Ceramic Ball ValveUS$ 600 - 20000MOQ: 1 Piece -
Lever Operated Carbon Steel Flange End Ceramic Ball ValveUS$ 600 - 20000MOQ: 1 Piece
-
3 Pieces Lever Operated Ceramic Lined Flange End Floating Ball ValveUS$ 600 - 20000MOQ: 1 Piece
-
Ceramic Ball Valve With Forged Steel MaterialUS$ 500 - 1800MOQ: 2 Sets
-
A105 Ceramic Lined Ball ValveUS$ 500 - 1800MOQ: 2 Sets
FREE-VALVE’s API pneumatic ceramic lined double gate valves are mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and auto-rotate valve disc, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently.Thereby, It guarantee the high requirements of sealing performance of this valve and long working time.
Features:
1. Sealing pair is made of structural ceramics，which have perfect performance to resist wear and flushing.
2. Bi-directional sealing can realized due to double disc structure of the pneumatic ceramic double disc gate valve.
3. It inserts spring between double valve discs to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The blow sweep port or automatic blow sweep device can be set on the valve body according to your different operating conditions.
Technical Parameters
1) Size Range: 2”-12”
2) Pressure Range: Class 150
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange
5) Sealing material: Engineering ceramics
6) Pressure test:API598
7) Face to Face: ASME B16.10
8) Flange standards:ASME B16.5
9)Operating Type: Pneumatic
Applications
You can find FREE-VALVE’s API pneumatic ceramic lined double gate valves are installed at the following abrasive medium.
1. Power plant ash handling system.
2. Portland Cement industry-dry powder conveying and dumping.
3. Dressing works-dry powder materials’ selection and conveying.
4.Alumina hydrate
5.Kiln dust
6.Titanium dioxide
7.Calcined kaolin
8.ilmenite and rutile ores
Model：FRZ674TC
Price:500-5000USD/set
Price terms:FOB,CIF,CFR,FCA
Payment terms:TT/LC
Delivery time:30days
