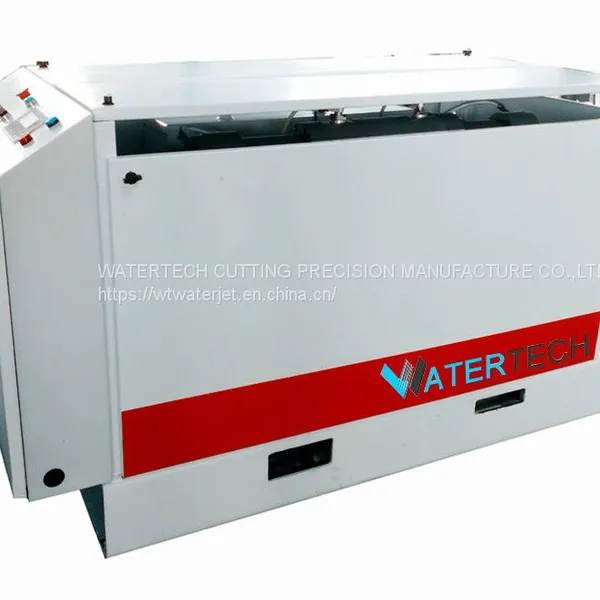

Stable performance 60000psi Water Jet Pump for Water Cutting Watertech waterjet machine Water Cutting Machine Intensifier Pump
Waterjet Pump Parameters
1.SIEMENS main motor
2.Customized Hydraulic pump
3.Booster Pump 10 Micron Filter and oil Pressure Gauge
4.Bleed down valve as a safety element which depressurizes the HP tubing when pump is stopped
5.Automatically quit on condition of super pressure or lower pressure for protection Ÿ
6.Adjustable pressure, Manual stepless adjustment
Max. Pressure |
420 MPa |
Boosting Ratio |
20:1 |
Max. Water Flow |
3.7L/min |
Max. Orifice Diameter |
0.33mm |
Hydraulic Reservoir Capacity |
30 gal (114 L) |
Attenuator Volume |
.26 gal (1L) |
Water Inlet Pressure |
≥0.2MPa |
Power of Main Motor |
37kw |
Power Supply Voltage |
380V/50HZ |
The waterjet cutting machine is a cutting device that uses ultra-high pressure water jets to perform cold cutting. It is mainly composed of a high-pressure pump, a CNC machining platform, a jet cutting head, a sand supply system and a cooling system.
The application range of waterjet is very wide, from metal materials to non-metal materials, from natural materials to artificial materials, from food to daily necessities, basically can cut, and it is known as the "universal cutting machine". The main application areas are:
1. Processing of building materials such as ceramics and stone
2. Glass product processing, such as cutting of glass parts in home appliances, architectural decoration, craft glass
3. Cutting and cutting of sheet metal in the machinery industry
4. Signs and artistic pattern cutting in the advertising industry
Folding cutting advantage
1. Strong versatility, almost all materials can be cut.
2. The water jet is cold cutting, it does not produce thermal effects, deformation, slagging, and ablation during cutting, and it will not change the physical and chemical properties of the material.
3. Small kerf, coupled with the characteristics of cooling and cutting, can improve material utilization.
4. The cutting medium is only water and natural abrasives, and no other substances are produced during the cutting process. It is a clean and environmentally friendly cutting process.
5. After cutting, the cutting surface is neat and smooth, without any damage to the object being cut during the cutting process, and can perform many cutting operations that cannot be achieved by cutting tools.
Of course, we don't just sell waterjet cutting machines. Our service technician team can also provide high-quality waterjet cutting machine accessories for your equipment.
