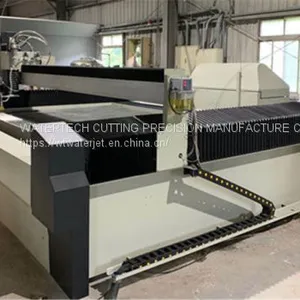

Watertech 3020 Waterjet Cutting Machine
Waterjet Cutting Machine Description
table support is interval model with welding.no expand and no transformation.
water tank is use automatic welding technology.
The whole ant-rust is made of fluorocarbon grade aviation paint.
adopts double-layer dust proof protection device.
adopts waterproof grade PH3 servo motor.
control system adopts Italy import system, multi language option.
precision level sand control system has high utilization rate of abrasives.
The cutting head system adopts a double layer condensation water column device, and the cutting force is stronger.
Waterjet Waterjet Cutting Machine specification
Structural style |
Cantilever style |
Cutting area |
3000*2000*1800 |
Max. moving speed for X/Y-axis |
6000mm/min |
Max. moving speed for Z axis |
1000mm/min |
Load bearing |
500kg/squre meter |
Control accuracy |
0.01mm |
Cutting accuracy |
0.1mm |
Power supply |
220v |
Way of drive |
AC Servo |
X/Y-axis structure |
Aluminum structure |
More about Watertech waterjet, please click here
