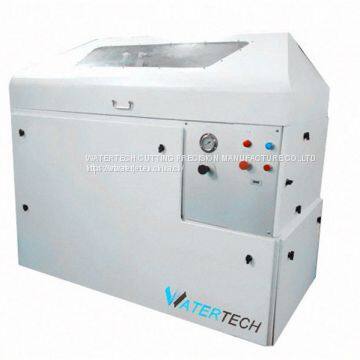

60000PSI Waterjet Intensifier Pump for Water Jet Cutter
Waterjet Pump Parameters
1.SIEMENS main motor
2.Customized Hydraulic pump
3.Electrically-shifted 60,000 psi intensifiers with ceramic plungers to minimize component wear seal carrier design for maximum performance and easy maintenance
4.Water booster and filtration system to ensure quality and constant water pressure at 60 to 80 psi; 5.a two-stage filter bank filters water of particulate matter to 0.5 micron.
6. Automatic high-pressure bleed-down valve to relieve system water pressure to 0 psi within 1 second of shutting down the pump.
Max. Pressure |
420 MPa |
Boosting Ratio |
20:1 |
Max. Water Flow |
3.7L/min |
Max. Orifice Diameter |
0.33mm |
Hydraulic Reservoir Capacity |
30 gal (114 L) |
Attenuator Volume |
26 gal (1L) |
Water Inlet Pressure |
≥0.2MPa |
Power of Main Motor |
37kw |
Power Supply Voltage |
380V/50HZ |
