Help CenterHandheld High Accuracy Single / Dual Channel Industrial Thermometer Used as Standard Temperature Reference in Thermal Laboratory
Related Products
-
High Quality 60~300 Deg C Heated Liquid Mini Thermostatic Bath for Thermal CalibrationUS$ 2500 - 3500MOQ: 1 Piece -
Micro Humidity Generator for Sensor CalibrationUS$ 16000 - 22000MOQ: 1 Set
-
Outdoor Wireless Multi-point Temperature and Humidity Monitor Long-distance up to 1500mUS$ 4000 - 10000MOQ: 1 Set
-
Customizable Flexible Wire Pt100 Sensor Probe Digital Thermometer With Wireless Data TransmissionUS$ 300 - 1600MOQ: 1 Piece
-
Dry Block Well Type Furnace for 50 to 1200 Deg C Temperature Calibration on SiteUS$ 1700 - 3200MOQ: 1 Piece

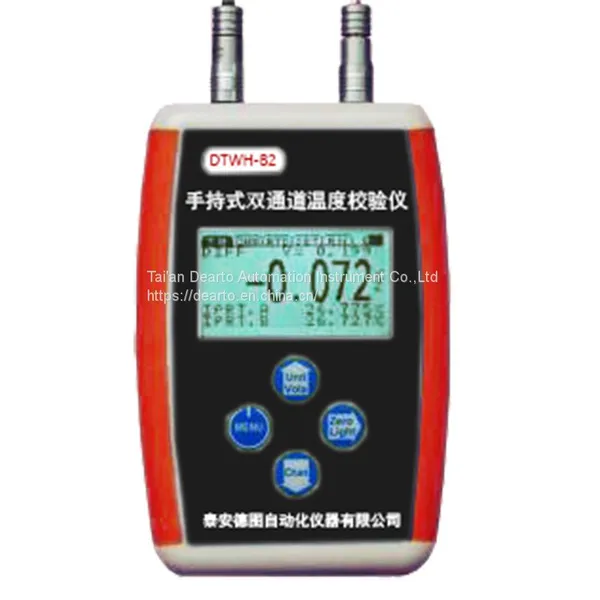

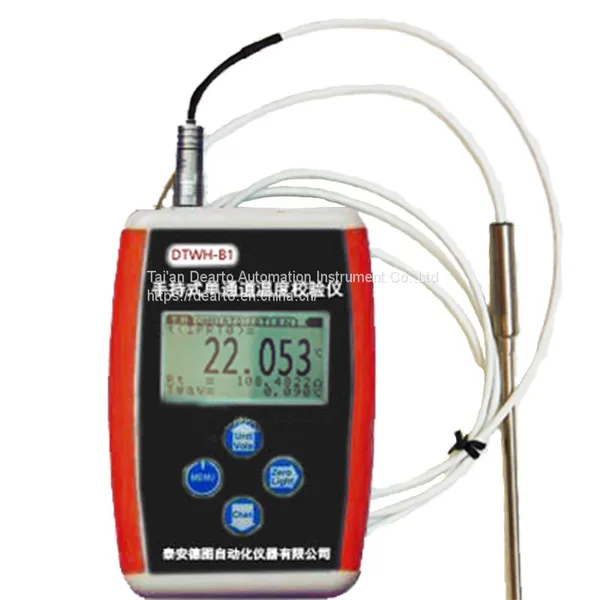

DTWH-B handheld multi-channel temperature calibrator adopts precision platinum thermal resistance (IPRT, Pt100) or standard platinum resistance (SPRT, Pt25) sensors for accurate temperature measurement, with extremely high stability and resolution; the instrument uses two sections No. 7 (AAA) battery-powered, low power consumption, long standby time; simple instrument operation interface, quick and convenient application.
1. Single/Dual channel, resistance type, precision temperature difference measurement
2. Convenient test for constant temperature bath, directly read fluctuation and temperature difference
3. The hardware circuit seeks temperature difference, resolution and stability far exceed software calculation
4. No sensor calibration is required to measure the temperature difference and fluctuation of the constant temperature bath
5. Low power consumption, using two AAA alkaline batteries
6. Temperature measurement can be calibrated as a whole
7. The temperature unit can be switched: Celsius (° C), Fahrenheit (° F), Kelvin (K)
8. The instrument body is small and exquisite (excluding sensors)
9. Automatic complete shutdown function, delay can be set
10. The display adapts to sunlight and dark places
Dimensions | 115×75×24(mm) |
Use environment | Temperature: (0 ~ 50) ℃; Humidity: ≤95% RH, no condensation |
Power supply | 2 AAA alkaline batteries |
Resolution | Temperature: 0.001 ℃, 0.0001 ℃ (temperature difference); Resistance: 0.0001Ω |
Resistance tolerance | MPE: ± (0.005% × reading + 0.002Ω) |
Resistance measurement range | IPRT:(0~400)Ω;SPRT:(0~100)Ω |
Temperature measurement range | IPRT:(-200~+850)℃;SPRT:(-200~660)℃ |
Calibration method | Host / overall CVD equation / overall SPRT |
Number of measurement channels | Two-way + one-way temperature difference |
Note:
1) This instrument is based on the ITS-90 international temperature scale
2) The temperature measurement range is related to the equipped sensor.
