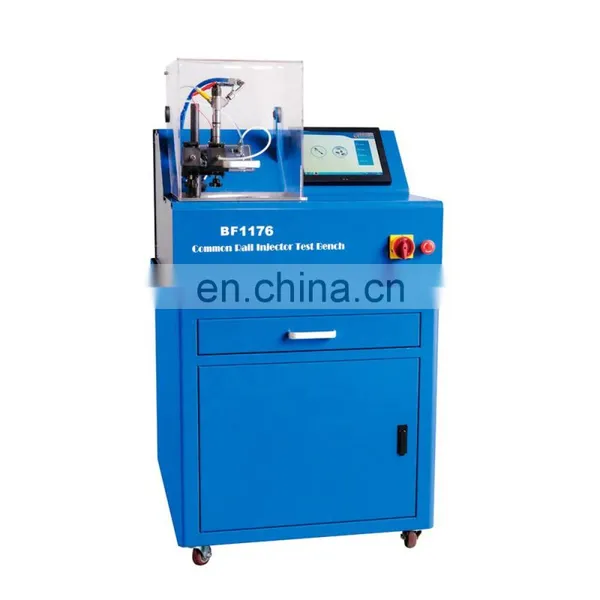

China famous brand Beifang BF1176 diesel fuel common rail injector test benchProduct introduction
China Beifang BF1176 diesel fuel common rail injectors tester injection testing equipment is used to test the performance of high pressure common rail injectors. It is controlled by industrial computer,windows operating system. The oil quantity is measured by sensor and displayed on computer screen.
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 2700 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed B,OSCH common rail pump to provide 0~2300 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9.Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.

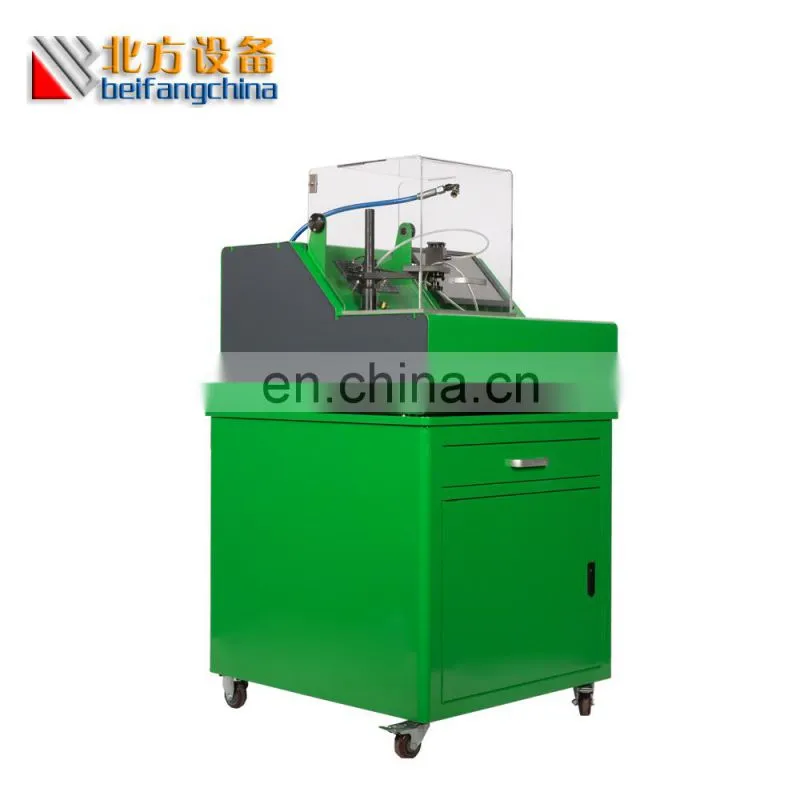

BF1176 common rail diesel injector test bench
1.Test all brands brands
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
|
1. Pulse width |
0.1~20ms |
|
2. Continuous injection times |
0~1000 |
|
3. Fuel temperature |
40±2°C |
|
4. Rail high pressure |
0~2300 bar |
|

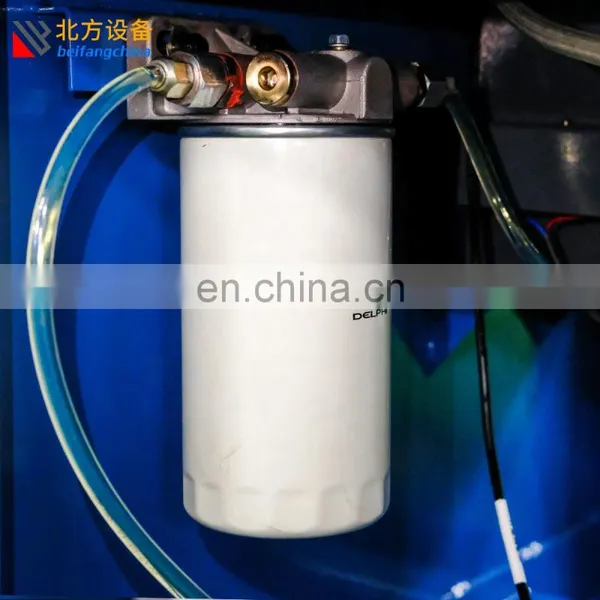

5. Test oil filtered precision |
5μ |
|
6. Input power |
380V/50hz/3phase or 220V/60hz/3phase, 4KW |
|
7. Rotation speed |
0~3000RPM |
|
8. Oil tank capacity |
15L |
|
9. Overall dimension(MM) |
920×860×1620 |
|
10. Weight |
350KG. |
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit

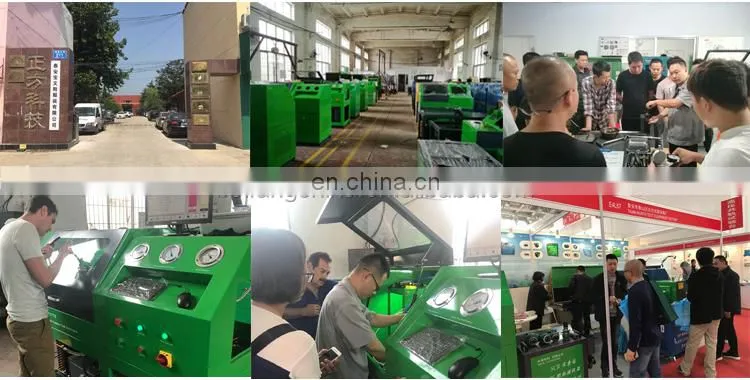

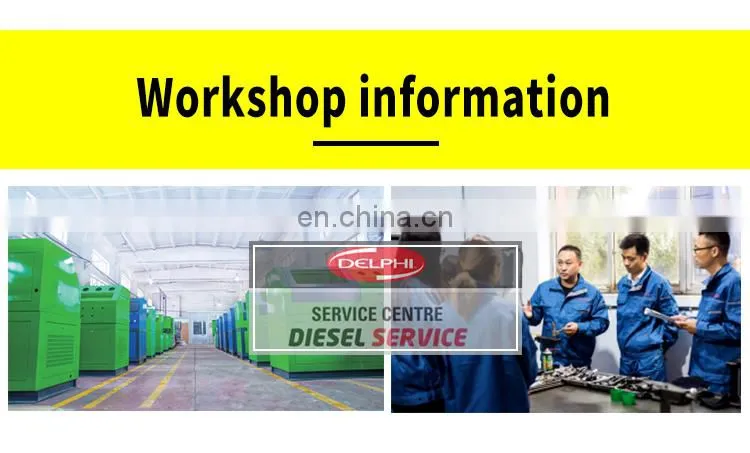

Taian North Test Equipment Factory founded in 2003. It is the top manufacturer of diesel fuel injection system testing equipment and diagnostic tools in China. It is also one of the first factories in mainland China to develop and manufacture diesel fuel injection system testing equipment and diagnostic tools.
The factory has always attached importance to customer needs and product quality.
Beifang equipment factory welcome domestic and overseas friends visit our factory and communicate the technology of diesel fuel injection system repair and maintenance. Let's make progress together!
