Cell Phone Plug Wire Durability Tester Plug Cord Cable Bending Flexing Test Machine
Application:
Cell Phone Plug Wire Durability Tester apply for bending endurance test for cable connected with plug.Fix the sample on jig and put the weight at the cable, then to swing the jig right and leftwith the setting angle. after rotating to required cycles then stop to check the cable; or check the rotation cycles after cable broken while the cable is tested by connecting to the electricity. While the cable is broken and disconnected from electricity, the tester will automatically count and then stop.
Corresponding standard: GB2099,UL,VDE,IEC,JIS.
Specifications:
Jig |
6 sets |
Bending angle |
30°,45°,60°,90°,120°,150°,180°(Adjustable) |
Bending speed |
10~60c.p.m (Adjustable) |
Counter |
6pcs counter individually |
Load |

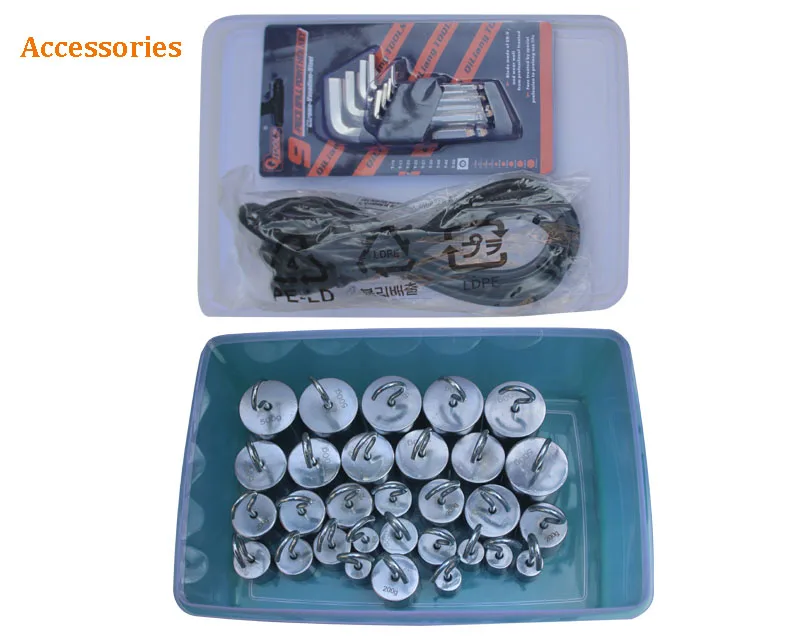

50g,100g,200g,300g,500g (6 pcs per each) |
Bend times |
0-999999 times |
Weight |
100kg |
Dimension (WxDxH) |
850x600x750mm |
Power supply |
AC220V 3A or specified by user |
