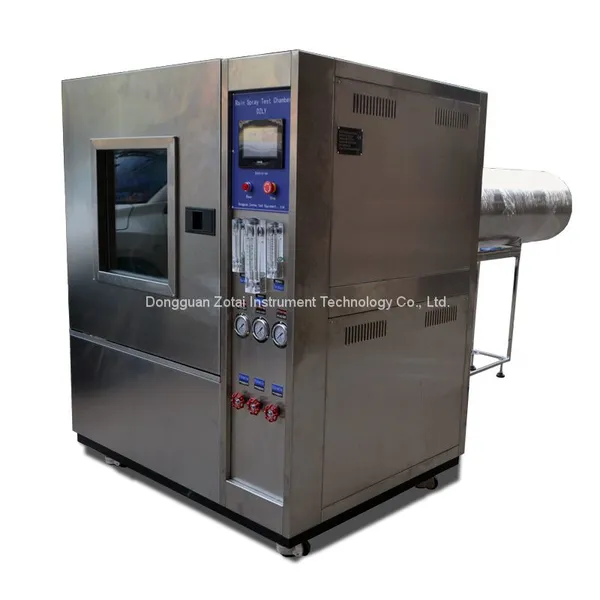

IPX5 IPX6 High Pressure Water Spray Resistance Tester

Technical parameters :

Meet the test standard:

DIN 40050-9-1993 (IEC 529-1989) High pressure / steam jet wash test defined in electrical equipment for road vehicles

DIN EN 60529-2000 Shelf protection class (International degree of protection code)

Road vehicles - Environmental conditions and tests for electrical and electronic equipment (general requirements) ISO16750-1-2006.

DIN 40050-9 enclosure protection class IP code

ISO20653 Road vehicles - Degree of protection (IP code) - Protection of electrical equipment against foreign objects, water and contacts

IEC60529 electrical enclosure protection classification level (IP) code

General test conditions for electrical and electronic components on automobiles

Specification for automotive wiring harness connectors

Application:

Rain/Spray Test Chamberis applied to test the shell’s waterproof effect of electronics, automobile and communication,using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.

Feature:

1. Water pressure and flow rate adjustable.

2. Unique sprinkler can stably control the rain quantity and pressure.

3. This equipment (Model B) can make the test products’ temperature rising from RT-85°C

4. Inner case’s material is imported steel plates, Shell is made of #304 stainless steel.

5. This equipment applies rain spray test for products and parts.

Out case protection grade:

1.IPX1, IPX2 test

    IPX1, X2 Negative pressure to absorb design

    Unique nozzle, not easy to block

2.IPX3, IPX4 test

    Pipe swing-type designed with gear motor, angle and speed adjustable.

    Nozzle Angle aiming at the circle center

3.IPX5, IPX6 test

     IPX5, IPX6 titanium alloy Nozzle

     Water column non-proliferation

4.IPX9K test

     IPX9K imported pump, high temperature & high pressure resistant

     Standard titanium alloy Nozzle

     Homogeneous distribution of pressure

Structural features:

1. Insulation Structure Inner Wall Material: Stainless Steel Plate SUS304, Mirror

Outer wall material: stainless steel plate SUS304, drawing

Insulation layer: Polyurethane (PU) foam insulation

2. Laboratory body standard configuration lead hole: diameter φ50mm 1, (located behind the box)

Sample Rotation Table: Load: 50kg

Moving Casters: 4

3. Door hinge single door (plexiglass), 1

Rain, one

Protective pipe door, one (open when 6K test)

4. Control panel temperature, flow, time control display

5. Mechanical room The machine room contains:

High pressure water pump, water tank, speed motor, inverter, high temperature and high pressure electromagnetic flowmeter, water temperature control device

6. Distribution control cabinet cooling fan

Power distribution board

Total power leakage circuit breaker

7. Heater with stainless steel armored heater

Heater control mode: non-contact cycle pulse width, SSR (solid state relay)

8. Water supply cycle, water level control, inlet and outlet valves. (To change the water regularly)

Flow (pressure), time control system:

Working mode High-pressure water pump → three-way → nozzle and balance pressure outlet → electromagnetic flowmeter (pressure gauge, 100bar) → four-way (controlled by solenoid valve, solenoid valve set by time → controlled by the controller) (Four high pressure nozzles: 0, 30, 60 and 90 degrees), at each angle for 30 seconds, a total of 120 seconds (2 minutes), the cycle of work.

Working mode BT (H) C Balance thermostat mode:

When the water temperature through the nozzle after the hot steam scouring test, less than 80 ± 5 ℃, return to the tank, the tank heating system automatically heated (4KW), in a short time to maintain the water temperature at 80 ± 5 ℃, to ensure that The test water temperature runs normally. The touch screen controller can be set to display the temperature of the water.
