Help Center5um 40inch High Flow Water Filter Cartridge HFU660GF100H13
Related Products
-
High Flow Water Cartridge Industrial Filtering EquipmentUS$ 31.25 - 60.28MOQ: 4 Pieces -
Replacement HFU660UY020JUW High Flow Water Filter CartridgeUS$ 43.08 - 59.68MOQ: 4 Pieces
-
Replacement HFU660CAS010JUW High Flow Water Filter CartridgeUS$ 43.08 - 461.54MOQ: 4 Pieces
-
3M HF60PP005D01 High Flow Water Filter CartridgeUS$ 46.15 - 76.92MOQ: 4 Pieces
-
HFU640UY200J High Flow Water Filter CartridgesUS$ 43.75 - 59.68MOQ: 4 Pieces
large flow filters have a big diameter of 6 inches/152mm, but no center support frame. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case. Due to its large flow and long life, Pall large flow filter can lower investment and human cost in many applications.
Product properties
Inside-out directions guarantee all impurities will be left inside the filters.
Filter size:
outer diameter: 6"(152mm)
Length:20"(528mm),40"(1022mm),60"(1538mm)Part material:
Performance of filter elements:
Filtering accuracy:1μm,4.5μm,6μm,10μm,20μm,40μm,70μm,100μm
Highest operating temperature: folding glass fiber:121ºC
folding deep polypropylene(PP):82ºC
MBPP:65ºC
Maximum pressure drop: folding glass fiber:3.4bar,121ºC
folding deep polypropylene(PP):3.4bar,82ºC
MBPP:1.03bar,65ºC
Recommended pressure drop for filter replacement: 2.4Bar ,20ºC
Recommended maximum filtering water flow: 20"filter: 660L/min 40"filter: 1300L/min 60"filter: 1900L/min
The Application fields of high flow water filter:
Micro-electronics, film, fiber, resin

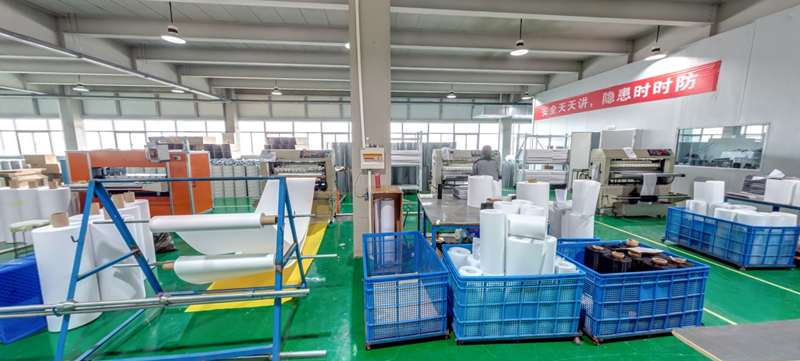

Our company shot:

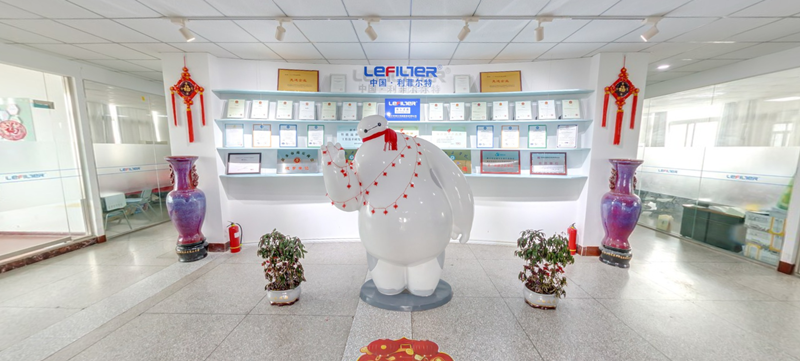

Our certification:
FAQ
1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.
Contact us:
Nora Hou
Whatsapp/Skype:+ 86 15537368730
e-mail:sales08@lefilter.com
