1800 Degree High Temperature Muffle Furnace

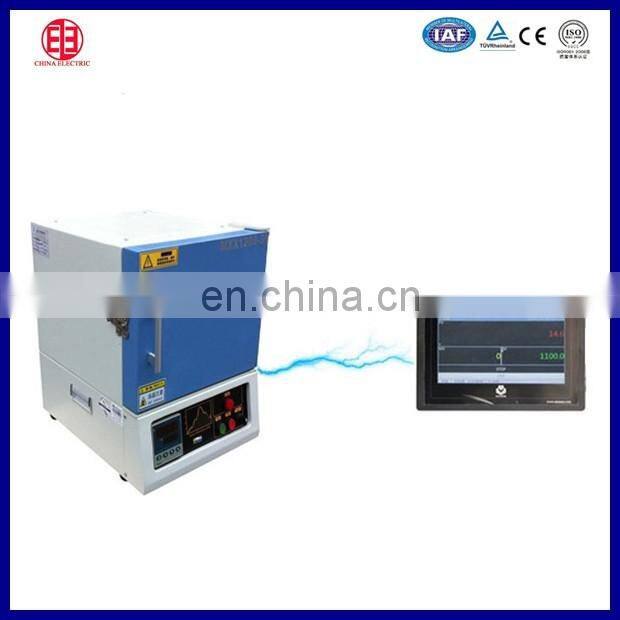

1800 Degree High Temperature Muffle Furnace photo-1
1800 Degree High Temperature Muffle Furnace photo-2
1800 Degree High Temperature Muffle Furnace photo-3
1800 Degree High Temperature Muffle Furnace photo-4
1800 Degree High Temperature Muffle Furnace photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Product Application

Colleges and universities, research institutes, industrial and mining enterprises do the high temperature sintering, metal material processing, quality inspection.

Model
The size of the furnace
Max.temp.
Working Temp.
Power
Voltage
Recommended heating rate
MXX1100-10
100*100*100mm



1100℃



100℃
1.2Kw
220


≤20℃/min
MXX1100-60
600*600*600mm
40Kw
380
MXX1100-80
800*800*800mm
54Kw
380
MXX1100-90
900*900*900mm
60Kw
380
 MXX1200-20
200*120*80



1200℃



1100℃
1.5Kw
220V



≤20℃/min

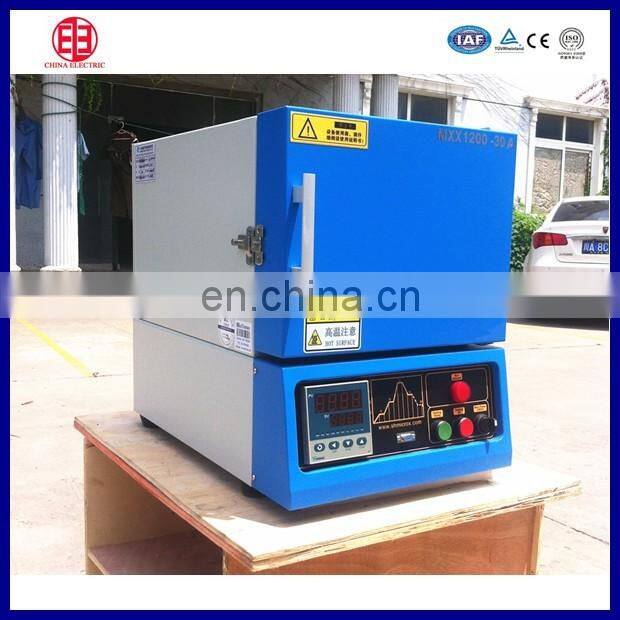

MXX1200-30A
300*200*120
3Kw
220V

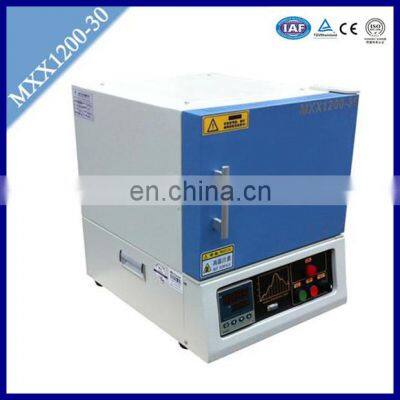

MXX1200-30
300*200*200
4Kw
220V
MXX1200-40
400*300*300
9Kw
380V
MXX1200-50
500*400*400
15Kw
380V
MXX1400-12
120*120*120





1400℃





1300℃
3Kw
220V





≤20℃/min
MXX1400-15
150*150*150
4Kw
220V
MXX1400-30
300*200*200
7Kw
220V
MXX1400-50A
500*200*200
10Kw
380V
MXX1400-40
400*300*300
12Kw
380V
MXX1400-50
500*400*400
18Kw
380V
MXX1400-60
600*600*600
40Kw
380V

Main Features

1, the chamber of a stove or furnace adopts imported polycrystalline alumina fiber materials, heat preservation performance is good, durable, heating element is made of high quality wire OCr27Al7Mo2, the highest temperature can reach 1800 ℃.
2, three or more surface embedded type resistance wire heating, uniform temperature field;
3, side open oven door, open the door without electricity;

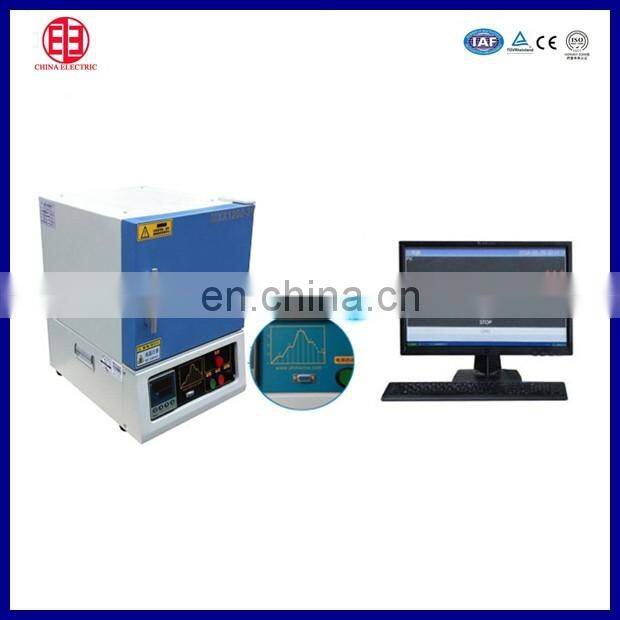

4, reserved 485 conversion interface, by our software, and computer networking, can realize single or many sets of electric remote control, real-time tracking, historical records, the output statements, and other functions; Can be installed the paperless recording device, realize data storage and output;
5, over temperature alarming and power outages, leakage protection, safe and reliable operation.

Detailed Images
Spare parts
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
