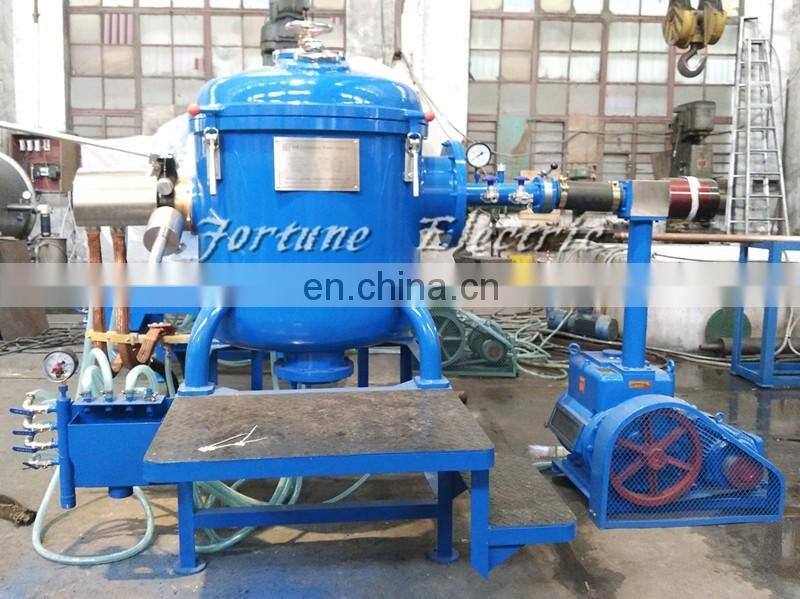

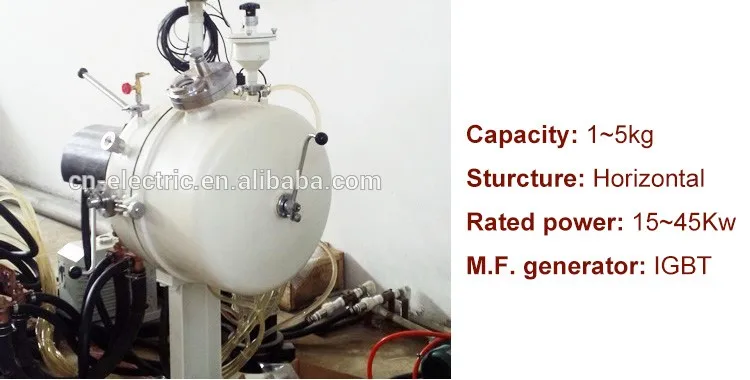

Laboratory vacuum induction titanium melting furnace
Brief discription
Laboratory vacuum induction titanium melting furnace is mainly used for the melting in vacuum or protective atmosphere. The raw material can be silver-base alloy, nickel-base alloy, steel alloy, special stainless steel, oxygen-free copper, rare earth Nd-Fe-B, and other metal materials.
Features
1 Continuous pouring and casting ingots
2 Bottom pouring and top casting
3 Counter flow cooling ingots
4 Automatical additional charging
5 Manual adjusting pouring speed
6 Automatical mold pallet

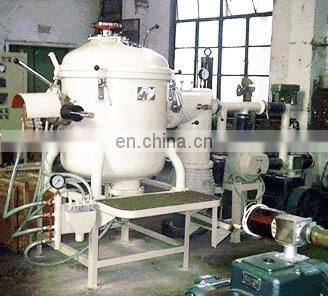

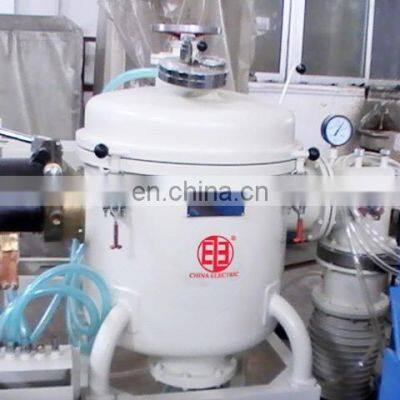

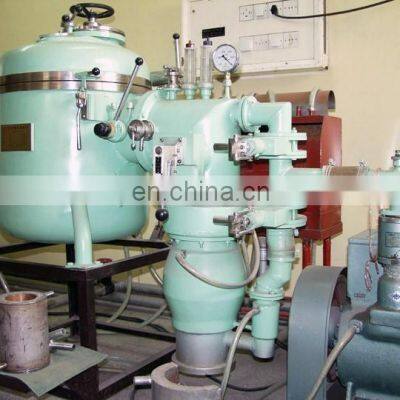

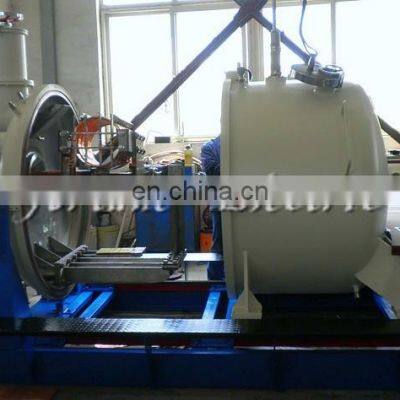

Detailed picture
Technical parameters for reference
Model |
Power |
Capacity |
Max Temperature |
Max vacuum value |
Pressure rise rate |
Working frequency |
Cooling water consumption |
|
Kw |
Kg |
℃ |
Pa |
Pa |
Khz |
m3/h |
VIF-1 |
15 |
1 |
1700 |
6.67*10-3 |
4 |
6-10 |
0.8 |
VIF-3 |
30 |
3 |
1700 |
6.67*10-3 |
4 |
6-10 |
1 |
VIF-5 |
35 |
5 |
1700 |
6.67*10-3 |
4 |
6-10 |
1.3 |
VIF-10 |
100 |
10 |
1700 |
6.67*10-3 |
4 |
1-2.5 |
2.0-2.4 |
VIF-25 |
100 |
25 |
1700 |
6.67*10-3 |
4 |
1-2.5 |
0.6-6 |
VIF-50 |
100 |
50 |
1700 |
6.67*10-3 |
4 |
1-2.5 |
5.0-6.5 |
VIF-100 |
100 |
100 |
1700 |
6.67*10-3 |
4 |
0.8-1.5 |
8.0-11.5 |
Main equipement
Product composition
1. Furnace lid, translational device
2. Furnace body, crucible, tilting device
3. Ingot mould lifting device
4. Vacuum system( oil-perssured pump, roots pump, slide valve pump)
5. Silicon controlled rectifier medium frequency power supply, PLC control cabinet
