FXE350 Automatic Continuous Copper Busbar Production Line
This copper busbar extruding production line is specially used for the production of flat wire, copper busbar, commutator, contact wires of electric locomotive and other solid copper materials. It is widely used in factories that need relative copper products, such as transformer, big and middle type motor, high-low voltage switch electric appliance, DC electric commutator and so on.

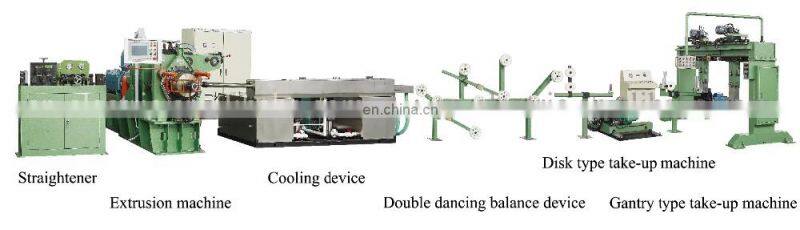

Busbar production line composing: pay-off stand for copper rods, straightener, continuous extrusion machine, oxidation preventive cooling system, double dancing balance device, take-up machine, and electric control system.
Main technical parameters:
| Model | FXE350 |
| Nominal diameter of extrusion wheel | 350 mm |
| Power of main motor | 180 kw, DC |
| Rotary speed of extrusion machine | 4~12.5 rpm |
| Raw material | No oxygen upcast copper rod |
| Upcast copper rod diameter | Φ16 or Φ17 |
| Max size of product | Bar width 100 mm, rod diameter Φ45 mm |
| Sectional area of product | 800~1000 mm² |
| Flakiness ratio of finished product | ≤ 15:1 |
| Average of productivity | 700 kg/h |
| Flash rate | 2~3 % |
Technical process:
Features:
1. Pure copper as raw material, and also suitable for copper alloy, convenient to prepare the materials.
2. No need of annealing, obvious energy saving effect, good uniformity.
3. Simple production process, direct shaping by one mould of copper busbar production line, no need of mould matching, easy replacement.
4. Precise product size by copper busbar production line, good surface roughness, with excellent mechanical and conductive performances.
5. Only need to replace a mould for defferent product shapes or sizes, fast and convenient, specially suitable for small quantity and multiple types product making.
6. Compact structure, small occupying space, low cost for equipment and plant construction, low running cost.
7. Less operators needed, low labor intensity, low comsumption, environment friendly.

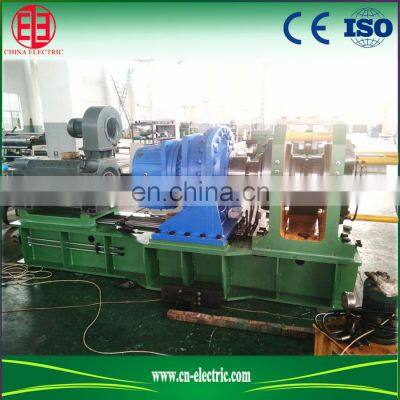

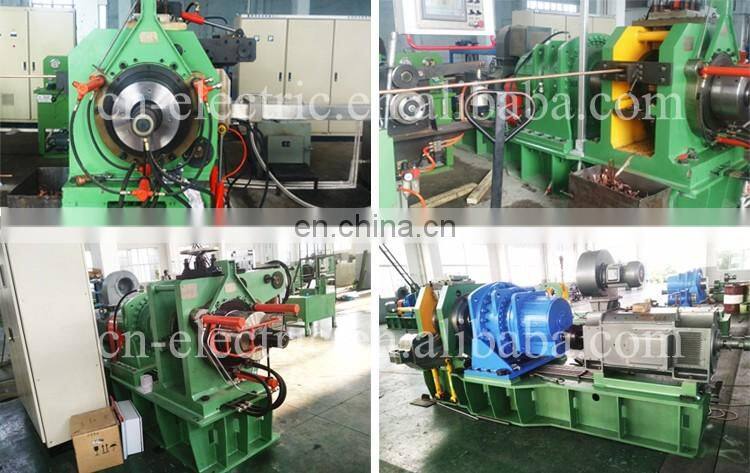

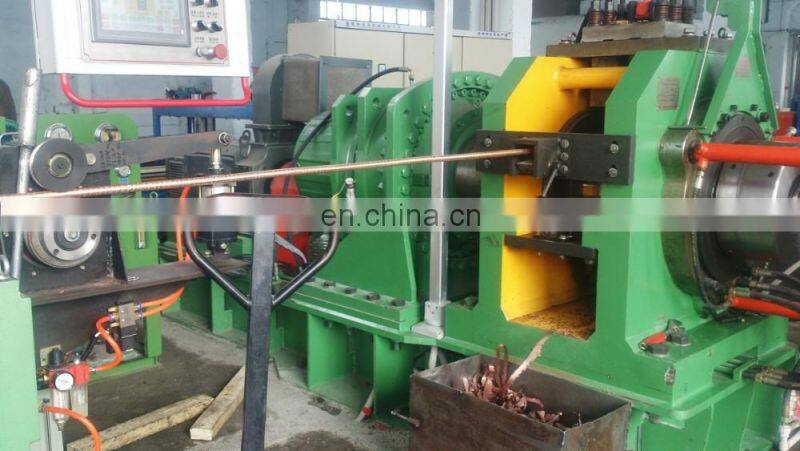

Copper busbar extrusion machine

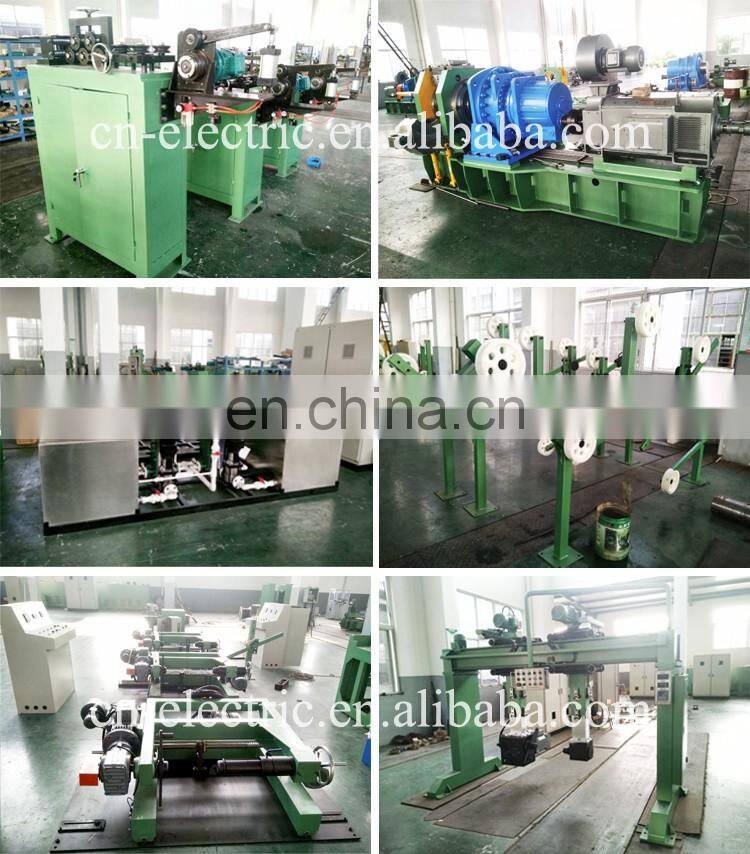

Machines in the whole busbar production line
1. Are you a manufacturer?
Ans: Yes, we have our own factory, strong technology team, advanced machining equipments, and over 20 years manufacturing experience.
2. How do you control the quality?
Ans: We have experienced workers separately controling each production process to ensure good quality, and we have 100% test before delivery.
3. How about the payment term?
Ans: 30% in advance by T/T, 70% the balance by T/T or L/C, however, customer advice can be taken into consideration for defferent situations.
4. How about your delivery time?
Ans: Normally, it will take 60~90 days after receiving your advance payment. However, the specific delivery time depends on the product kinds and quantity than you order.
5. How do you make our business long-term and good relationship?
Ans: We keep good quality and competitive price to ensure the benifit of our customers, and we're always here providing good service for you.
