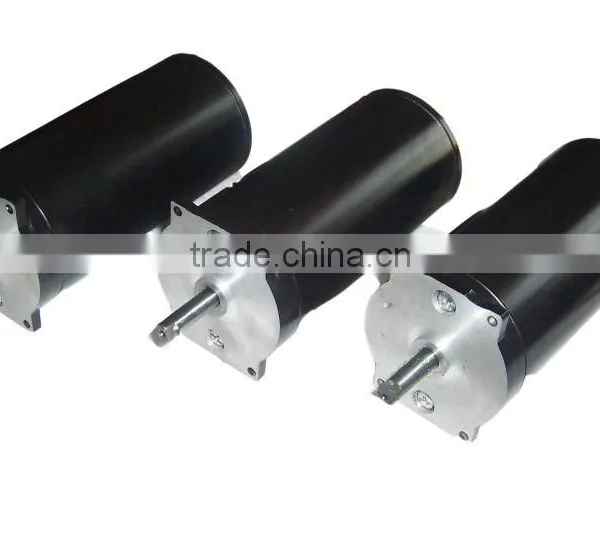

Large Torque Machine Core Micromotor, Micro Motor

Specifications

Large torque machine core micromotor, micro motor:
1.Rated Voltage:3-24V
2.Speed: 3-1500RPM
3.Stall Torque: 50kg.cm
4.mi

Large torque machine core micromotor, micro motor







MODEL		VOLTAGE		NO LOAD		AT LOAD					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
			V	rpm	A	rpm	A	N.m	Kg.cm	w	N.m	Kg.cm	A
GM37-3530	0650-10	3-9	6.0	490	0.12	430	0.22	0.02	0.24	0.65	0.1	1.2	1.9
	0650-30	3-9	6.0	160	0.12	147	0.22	0.06	0.63	0.65	0.3	3.2	1.9
	0650-90	3-9	6.0	55	0.12	47	0.22	0.16	1.6	0.65	0.8	8.0	1.9
	0650-169	3-9	6.0	29	0.12	25	0.22	0.28	2.8	0.65	1.4	13.9	1.9
	0650-270	3-9	6.0	18	0.12	16	0.22	0.45	4.5	0.65	3.0	30	1.9
	0650-506	3-9	6.0	9.5	0.14	8	0.22	0.59	5.9	0.65	3.0	30	1.9
	0650-810	3-9	6.0	6	0.14	5	0.22	0.75	7.5	0.65	3.0	30	1.9
	12100-10	6-15	12.0	970	0.25	930	0.4	0.02	0.24	2.9	0.24	2.4	5.5
	12100-30	6-15	12.0	330	0.25	310	04	0.06	0.63	2.9	0.63	6.3	5.5
	12100-90	6-15	12.0	110	0.25	103	0.4	0.16	1.6	2.9	1.6	16	5.5
	12100-169	6-15	12.0	59	0.25	55	0.4	0.28	2.8	2.9	2.9	29	5.5
	12100-270	6-15	12.0	37	0.25	35	0.4	0.45	4.5	2.9	3.0	30	5.5
	12100-506	6-15	12.0	20	0.25	18	0.4	0.59	5.9	2.9	3.0	30	5.5
	12100-810	6-15	12.0	12	0.25	11	0.4	0.75	7.5	2.9	3.0	30	5.5





Ordering Information :



   Please contact us, prices are negotiable, your needs and satisfaction is our greatest power forward and goals.

Shenzhen  Hafond Hardware Plastic Co., Ltd. specializes in the development and production of metal products, has complete equipment and strong technical force. Quality service, reasonable prices, innovation and development, win-win cooperation, our products are widely used in communications, construction, electronics, household, automotive and other industries.



         Founded in June 1999, Shenzhen Shun Feng Hardware Products Factory (China-Hong Kong joint venture)
         Founded in August 2003, Shenzhen  Hafond Hardware Plastic Co., Ltd.
         October 2003 through the national tax authorities as the general taxpayer;
         May 2004 passed ISO9001, 2000 certification;
         Founded in June 2005 Guiyang County, Chenzhou City, Hunan Guangyuan City of Industry;



Our products have been recognized by our customers and trust, and to meet the evolving needs of the community.



We warmly welcome all the Friends, hope to establish friendly cooperation with your business contacts to achieve win-win goal.





note:

   Our company can provide the most satisfactory OEM products according to customers' drawings and requirements.
It will be highly appreciated if  you could send us detailed drawings, specifications, quality requirements, and actual samples . We will provide you not only the most satisfactory processing service but also very competitive price.
If you have any question or need any help, please feel free to contact us.
Thank you !
