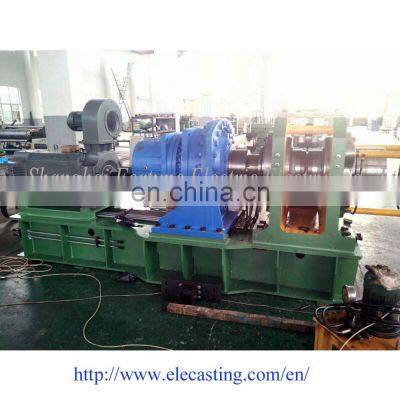

Copper wire/bar continuous extrusion machine
Parameter
| Type | FXJ350 |
| Nominal diameter of extrusion wheel (mm) | 350 ( different according to model) |
| Power of main motor (kw) | DC 180 ( different according to model) |
| Rotating speed of extruder (rpm) | 4 ~ 12.5 ( diferent according to model) |
| Type of material | Brass copper alloy |
| Diameter of wire rod (mm) | 16 or 17mm ( different according to model) |
| Max. width of the product (mm) | 100mm for copper busbar, 45mm for copper rod ( different according to model) |
| Sectional area of the product (mm²) | 80~ 1000( different according to model) |
| Flakiness ratio of finished product | ≤15:1 |
| Average productivity (kg/h) | 700 (different according to model) |
| Flash rate ( % ) | 2~3 |
Simple introduction:

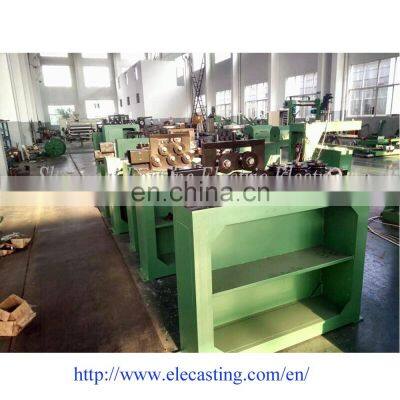

The production line is composed of pay-off stand for copper rods, straightener, continuous extruder, Anti-oxidation cooling system, spooling machine, and electrical control unit. The raw material can be the pure copper rod produced by upward continuous casting machine, and also be the copper alloy. If the surface of copper rods is clean, the cleaning system is not necessarily needed. Firstly, the pay-off stand sends the wire or rod to straightener; then the wire or rod is sent to continuous extrusion host machine; after extrusion, the wire or rod becomes strips or other required products. They go through Anti-oxidation cooling system and are rolled by spooling machine, or cut by other equipment.
The production line are used to produce copper flat wire, copper busbar, commutator, contact wires for electric locomotive or other solid copper material. The finished products are widely used for manufacturing transformer, big and middle size motor, high or low electric switch, DC electric commutator and so on.
Copper extruding technology has many outstanding features compared with the traditional drawing technology:
1. Raw material can be pure copper or copper alloy
2. The production process doesn’t need annealing process, which helps to save more energy.
3. Simple production process. One model can form the shape; It is convenient to change the mold.
4. With accurate dimensions and fine finish, our products possess very good mechanical and electric conduction ability.
5. The convenient production process is especially suitable for producing varieties of products in small quantity.
6. The equipment saves space for compact structure. What’s more, it costs not much to set and operate the equipment.
7. The equipment is characterized with less operators, energy-saving advantages, environment protection and less methodology consumption.
Composition
1. Inquiry response within 24 hour.
2. Ensure every quatation is practical &customized according to your requirement.
3. Provide the design suggestions and layout plan for the clients workshop.
4. Provide the technical specification of the auxiliary facilities.
5. Provide professional installation drawing before order.
6. Engeneers are available to serve the machines overseas.
7. Our factory always welcome to your visit. We can take you to visit our local customers.
8. Quality assurance: 12 months except consumable parts.
As a professional manufacturer and exporter of metallurgical machinery and euipment, we are specialized in the design, research and developments, manufacture, sales and service of metallurgical casting equipment. Owning the advanced technology and experienced engineer team, we provide professional solutions to the field of metallurgical machinery and equipment.
After more than twenty-year operation, we have formed complete metallurgical equipment supply chains. All of our products conform to the international quality standards and win extremely great reputation in a variety of markets throughout the world. Nowadays, we have cooperated with many well-know domestic and foreign companies as a gold supplier.
Our main products include induction melting furnace, continuous casting machine, rolling mill and other ralated metallurgy and casting equipment.
We sincerely welcome the old and new clients to communicate and negotiate with us. We are willing to work with you hand in hand to develop forward together and creat brilliant future.
