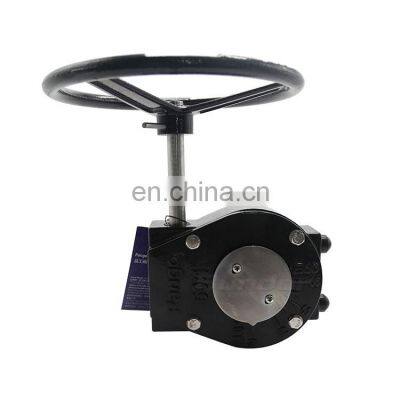

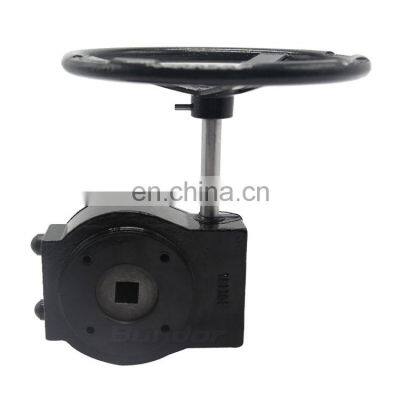

Help CenterBundor QT450 Cast Iron Gearbox for Valves With Handwheel
Related Products
-
Bundor 1/2 Inch Brass PN16 DN15-25 Two Way Automatic Flow Control Ball Valves FCU Motorized Controller ValveNegotiableMOQ: 1 -
Bundor Brass PN16 AC24 AC110 AC220V 50/60Hz DN25 FCU Motorized Valve With Actuator For Air ConditionerNegotiableMOQ: 1
-
Bundor Electric Control Valve Modulating For Air ConditionerNegotiableMOQ: 1
-
Bundor Brass AC24V AC220V 50/60Hz Electric Control Valve Modulating SupplierNegotiableMOQ: 1
-
Bundor Brass Electric Control Valve Modulating For Central Air Conditioning Cool Heat WaterNegotiableMOQ: 1
Product advantages:
1. The protection grade of worm gear box reaches IP65.
2, worm gear box regularly do dust and anti-spray type test, to ensure that the product protection performance is reliable.
3, lithium base grease, water and oil resistant, not easy to aging, long life (high temperature 150 degrees, low temperature -20 degrees), worm head warranty for 5 years.

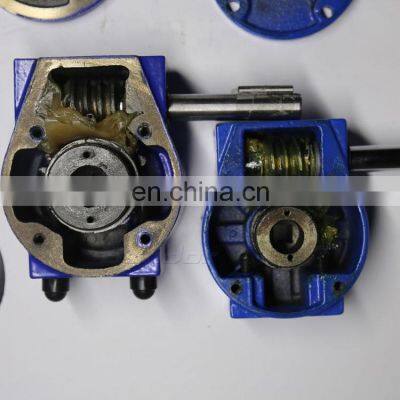

4. The worm adopts 45 steel quenched and tempered treatment, with good comprehensive mechanical properties and long service life.
5, the range of worm gear regulation is large, most of the products on the market is + 5 degrees, as the worm head is + 10 degrees.
| Name | Body | Turbine | Lid | Worm | Worm shaft | Handwheel |
| Material | HT200 | QT450 | QT450 | 45 | 45 | DI |

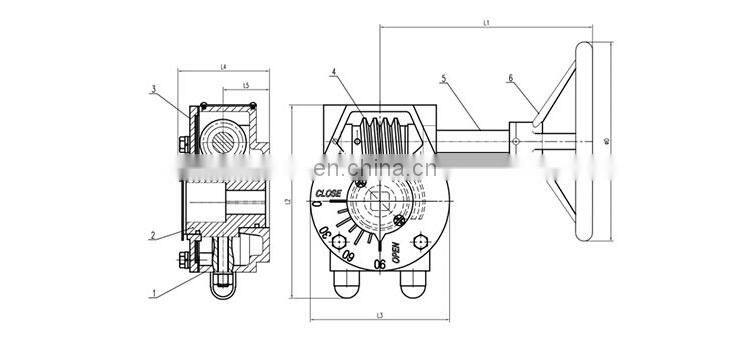

| Ratio | Size | Flange | (24:1) | (30:1) | (50:1) | ||||
| DN | NPS | L1 | 149 | L1 | 206 | L1 | 217 | ||
| 24:1 | 50 | 2" | F05 | ||||||
| 65 | 2 1/2" | L2 | 146 | L2 | 210 | L2 | 215 | ||
| 80 | 3" | ||||||||
| 100 | 4" | F07 | L3 | 105 | L3 | 153 | L3 | 156 | |
| 125 | 5" | ||||||||
| 150 | 6" | L4 | 70 | L4 | 90 | L4 | 92 | ||
| 30:1 | 200 | 8" | F010 | ||||||
| 250 | 10" | L5 | 35 | L5 | 41 | L5 | 49 | ||
| 50:1 | 300 | 12 | |||||||
| 350 | 14 | ΦD | 150 | ΦD | 200 | ΦD | 250 | ||
