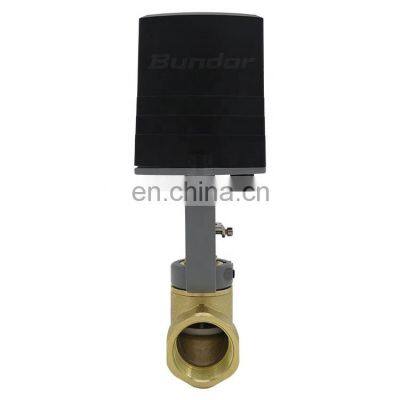

Help CenterBundor Brass Electric Control Valve Modulating For Central Air Conditioning Cool Heat Water
Related Products
-
Bundor Carbon Steel Lever Floating Ball Automatic Steam TrapNegotiableMOQ: 1 -
Bundor High Performance Valve Accessories Double Acting Pneumatic Actuator for Ball Valve Butterfly ValveNegotiableMOQ: 1
-
Bundor High Performance Ball Valve Butterfly Valve Accessories Double Acting Electric ActuatorNegotiableMOQ: 1
-
Bundor High Performance Valve Accessories Acting Electric ActuatorNegotiableMOQ: 1
-
Bundor Valve Accessories Electro Pneumatic Control Valve PositionerNegotiableMOQ: 1
Advantages

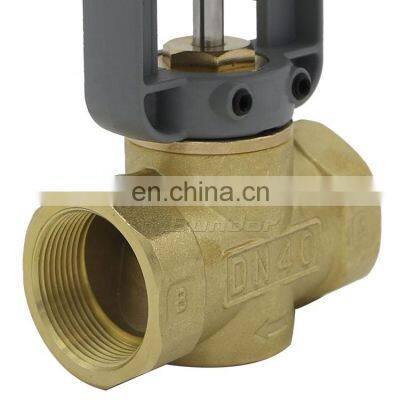

1.One-time hot forging brass valve body, higher density, intensity 5 times than casting item.
2.Valve stem with 4 layer sealing protection, extend the usage life.
3.Die-casting aluminum bracket and actuator cover, steel gears, to keep the valve acting stable and safety.
4.AC synchronous motor, built-in two floating auxiliary switch, equip with shut power function while in position to protect motor.High control precision, quick response speed, low power consumption, low noise.
5.With manual lever easy to operate valve while power off.
6.Configuration travel self-adaption, easy to install and test.
| Name | Body | Core | Seat | Stem |
| Material | Brass59-1 | Brass+NBR | NBR | Stainless steel |

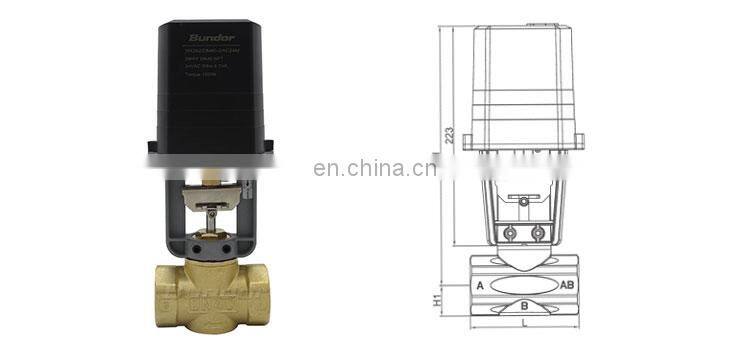

| DN | NPS(Inch) | L | H | H1 |
| 20 | 3/4" | 69 | 262 | 18.5 |
| 25 | 1" | 80 | 262 | 22 |
| 32 | 1-1/4" | 92 | 262 | 27.5 |
| 40 | 1-1/2" | 110 | 263 | 31 |
| 50 | 2" | 125 | 268 | 38 |
| 65 | 2-1/2" | 150 | 276 | 48 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
