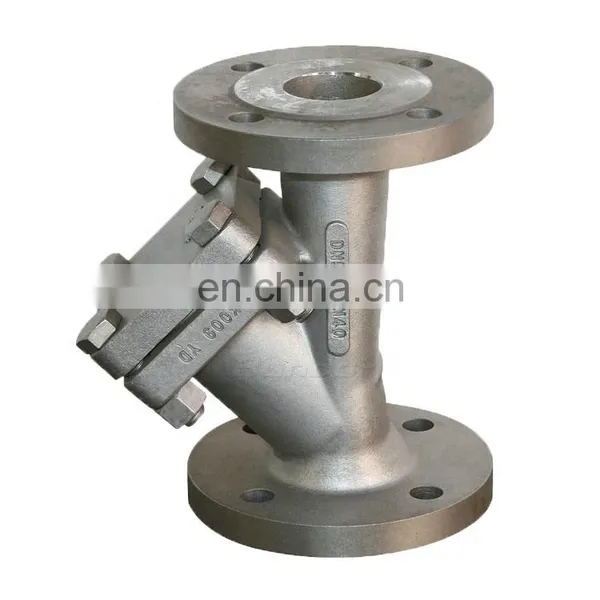

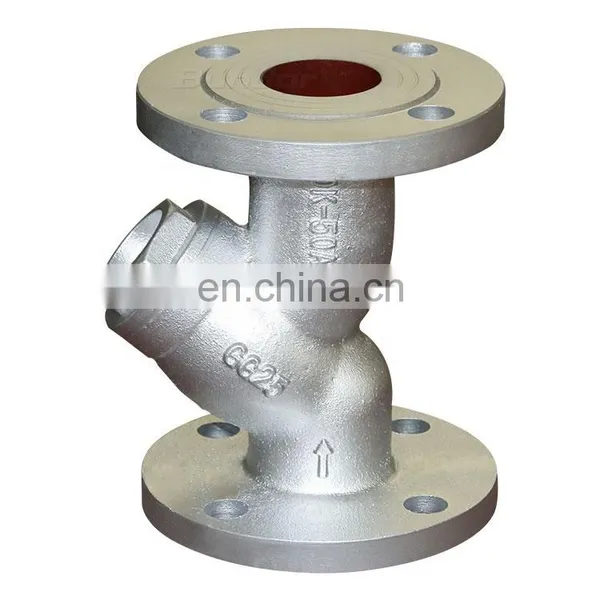

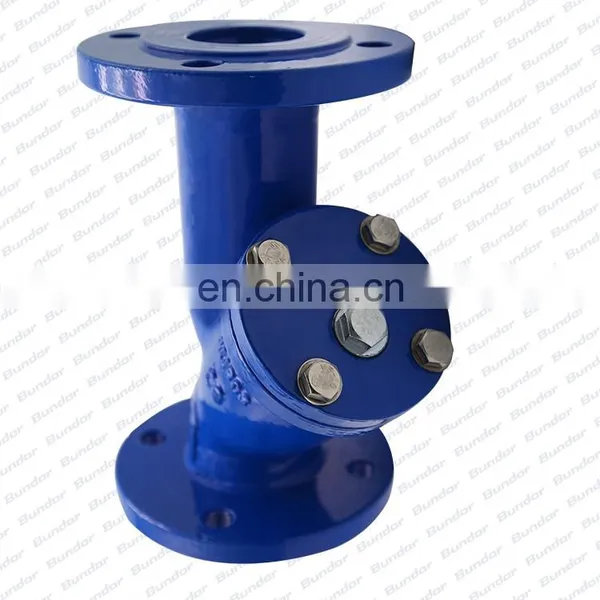

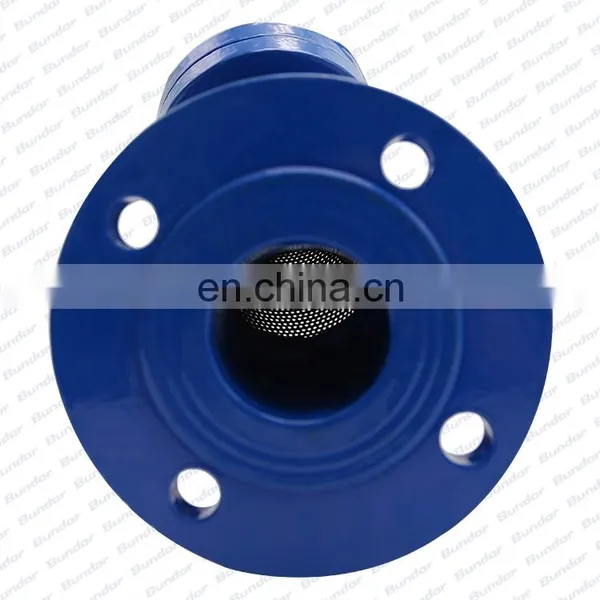

Help CenterBundor DN15-600 Cast Iron Y Type Strainer Ductile Iron GL41H y Strainer Dn150
Related Products
-
Bundor Stainless Steel y Type Strainer y Strainer Factories Ss316 Flange End 1.0-1.6Mpa (10-25bar) Y Type StrainerNegotiableMOQ: 1 -
Bundor DN50-500 Cast Steel Y Type Strainer Flanged Y-type Strainer Water Strainer for IndustryNegotiableMOQ: 1
-
Bundor Cast Steel Y Type Strainer Factories Flange Y-type StrainerNegotiableMOQ: 1
-
Bundor DIN Ductile Iron y Type Strainer Supplier PN16 Flanged End Water Y Strainer PriceNegotiableMOQ: 1
-
Bundor DIN Ductile Iron y Strainer Prices PN16 Flanged End Water Y StrainerNegotiableMOQ: 1
Advantage:

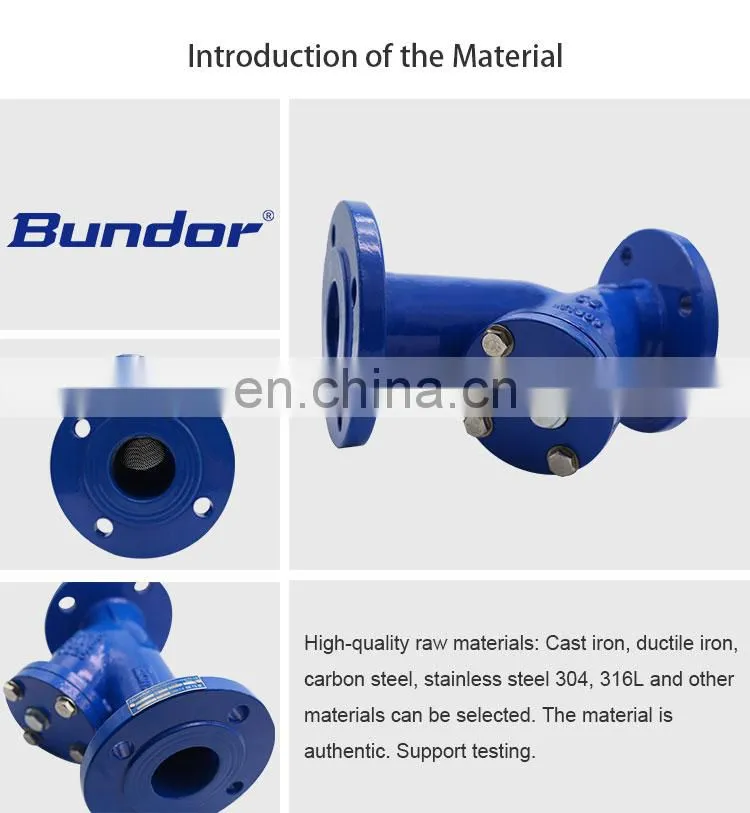

1.Cast iron body material,can't broken by transfer and install.
2.Streamline design for low pressure drop.Epoxy coating,prevent corrosion and rust
3.There is pressure tap leave on the bonnet,can install pressure measuring device to test pipe pressure
4.Can supply different precision filter according to different customer's request,clean easily
5.Dimension of inner cavity inlet is 1.2-1.3 time larger than size,the screen length is 1.5 time than normal,improve flow,Extended cleaning cycle
6.The screen is install by 45 degree,the mesh area is 3-4 times larger than nominal diameter area, lower flow resistance,larger flow
Technical Parameters:(DN15-600)
| Body | Strainer | Mouth mat | Screw | Bonnet | End Cap | |||
| HT250 | SS304 | PTFE | 35 | HT250/QT450 | 35 | |||
| DN | NPS | L | D | Dk | Dg | f | b | W.T(kg) |
| 15 | 1/2” | 130 | 95 | 65 | 46 | 2 | 14 | 2.4 |
| 20 | 3/4” | 150 | 105 | 75 | 56 | 2 | 16 | 2.8 |
| 25 | 1” | 160 | 115 | 85 | 65 | 3 | 16 | 3.6 |
| 32 | 1 1/4” | 180 | 140 | 100 | 76 | 3 | 18 | 5.5 |
| 40 | 1 1/2” | 200 | 150 | 110 | 84 | 3 | 19 | 7 |
| 50 | 2” | 230 | 165 | 125 | 99 | 3 | 20 | 9.5 |
| 65 | 2.5” | 290 | 185 | 145 | 118 | 3 | 20 | 13 |
| 80 | 3” | 310 | 200 | 160 | 132 | 3 | 22 | 16 |
| 100 | 4” | 350 | 220 | 180 | 156 | 3 | 24 | 23 |
| 125 | 5” | 400 | 250 | 210 | 184 | 3 | 26 | 31 |
| 150 | 6” | 480 | 285 | 240 | 211 | 3 | 26 | 45 |
| 200 | 8” | 600 | 340 | 295 | 266 | 3 | 30 | 85 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
