ANSI Class150 Flange Y-type strainer
Y-type strainer is a indispensable device in transmission pipeline system, usually installed inlet in pressure reducing valve, pressure relief valve, water valve and other device, the valve is used to remove impurities in order to protect the valve and equipment in normal use.
Size:1/2"--18"

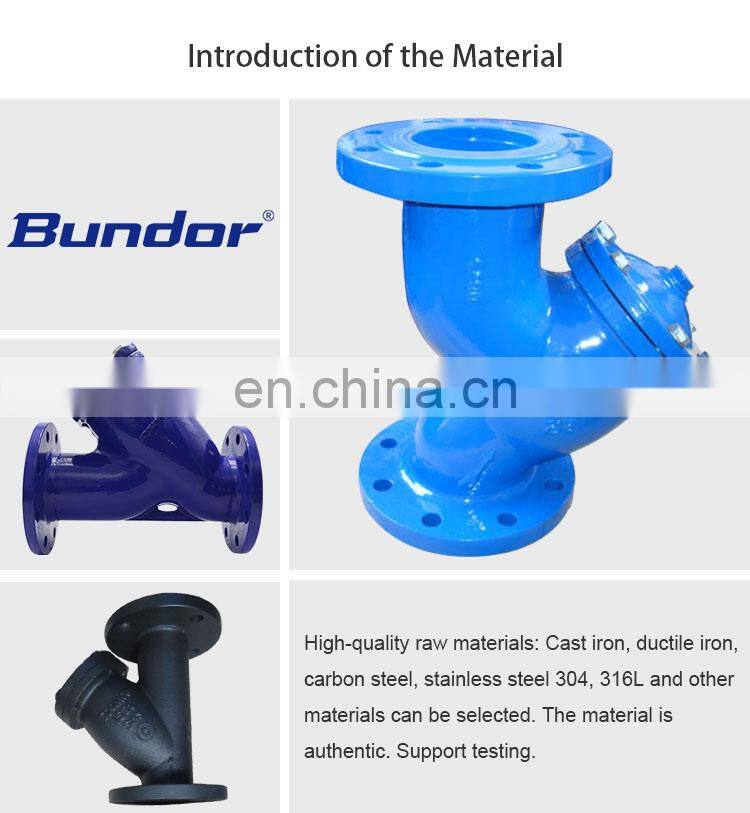

Material: cast iron,WCB,stainless steel 304(CF8)
Pressure: Class 150
Connection:Flange
Temperature range: ≤250℃

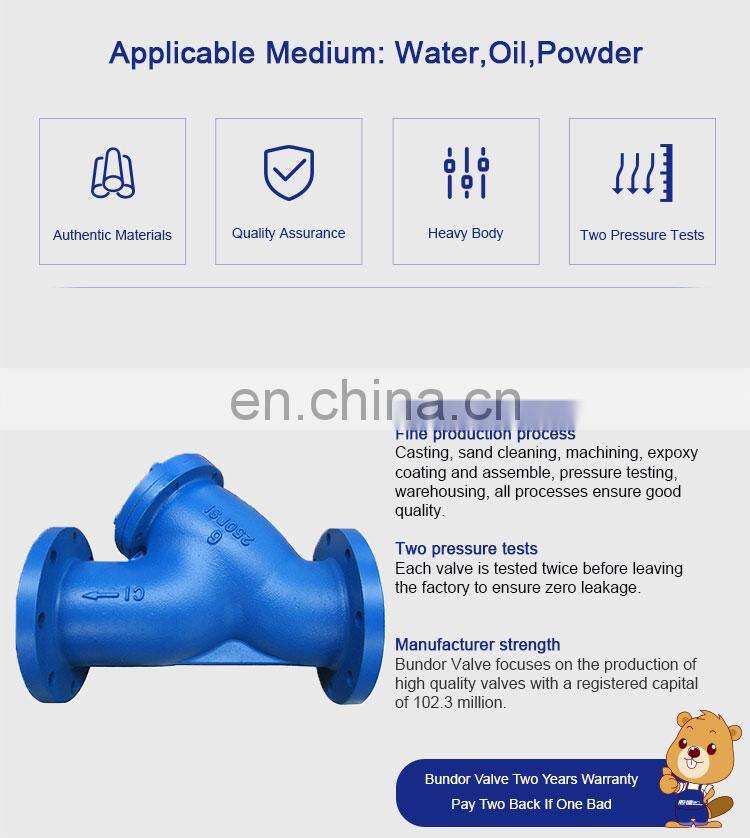

Applicable Media:water,oil
Product Features:
1.Bundor patent products, patent certification.
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The thickness of valve body wall is up to standard.
The valve body wall thickness meets the requirement of GB 26640, the thickness is up to the standard, and the pressure strength is guaranteed.
3.The product has an independent identity to ensure traceability.
Each Bundor product has its own QR code mark, unique identification number, to ensure product traceability.
4.Provide material inspection report.
All Bundor products can provide the material inspection report of the main parts.
5.As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, they will be compensated for the product's quality problem without any conditions.

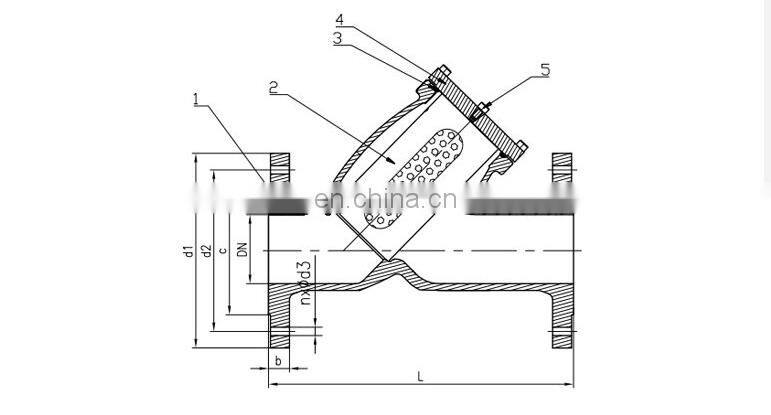

| Name | 1-Body | 2-Strainer Screen | 3-Bonnet | 4-End Cap | ||
| Material | DI | 201/304 | DI | DI | ||
| DN | L | D1 | D2 | nxd3 | c | b |
| 50 | 205 | 160 | 125 | 4x19 | 99 | 16 |
| 65 | 215 | 180 | 145 | 4x19 | 118 | 16 |
| 80 | 250 | 195 | 160 | 8x19 | 132 | 19 |
| 100 | 295 | 215 | 180 | 8x19 | 156 | 19 |
| 125 | 315 | 245 | 210 | 8x19 | 184 | 19 |
| 150 | 345 | 280 | 240 | 8x23 | 211 | 19 |
| 200 | 420 | 335 | 295 | 12x23 | 266 | 23 |
| 250 | 530 | 400 | 355 | 12x26 | 319 | 24 |
| 300 | 610 | 455 | 410 | 12x26 | 370 | 27 |
