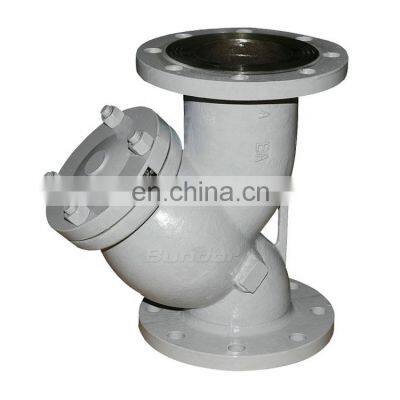

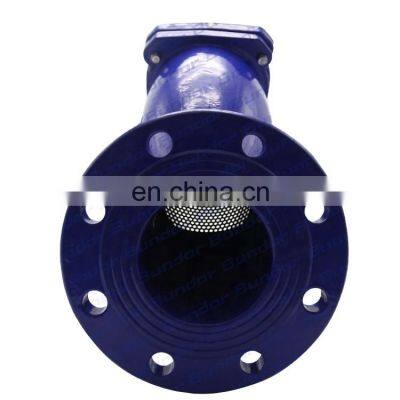

Help CenterBundor DIN Ductile Iron y Type Strainer Supplier PN16 Flanged End Water Y Strainer Price
Related Products
-
Bundor DIN Ductile Iron y Strainer Prices PN16 Flanged End Water Y StrainerNegotiableMOQ: 1 -
Bundor Cast Steel Y Type Strainer Valve y Strainer Flange Y-type Water Flange StrainerNegotiableMOQ: 1
-
Bundor Cast Iron Y Type Strainer Ductile Iron GL41H DN15-600 Y-strainerNegotiableMOQ: 1
-
Bundor Ductile Iron Flanged Connection Ansi y Strainer PN16 y Type Strainers SupplierNegotiableMOQ: 1
-
Bundor Ductile Iron GL41H Class 150 Flange Y-type StrainerNegotiableMOQ: 1
Product Features:
1.Strainer body meets applicable DIN standard,large inner space,reduce pressure drop.
2.Ductile iron body material,can't broken by transfer and install.
3.Streamline design for low pressure drop.
4.Epoxy coating,prevent corrosion and rust.
5.There is pressure tap leave on the bonnet to install pressure measuring device in order to test pipe pressure.
6.The drain plug can be changed to ball valve according to customer's request.The ball valve can connect with drain pipe.No need to assemble the bonnet when drain contamination with pressure.
7.Bundor patent products, patent certification.
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
8.The thickness of valve body wall is up to standard.
The valve body wall thickness meets the requirement of GB 26640, the thickness is up to the standard, and the pressure strength is guaranteed.
9.The product has an independent identity to ensure traceability.
Each Bundor product has its own QR code mark, unique identification number, to ensure product traceability.

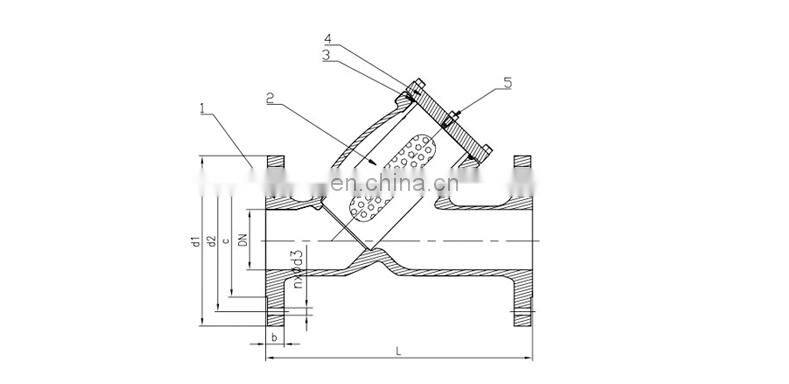

| Name | 1-Body | 2-Strainer | 3-Rings | 4-Cap | 5-Plug |
| Material | DI | SS304 | EPDM | DI | DI |
| SIZE | DN | D | D1 | D2 | L |
| 1/2" | 15 | Φ95 | Φ65 | Φ46 | 130 |
| 3/4" | 20 | Φ105 | Φ75 | Φ56 | 150 |
| 1" | 25 | Φ115 | Φ85 | Φ65 | 160 |
| 1 1/4" | 32 | Φ140 | Φ100 | Φ76 | 180 |
| 1 1/2" | 400 | Φ150 | Φ110 | Φ84 | 200 |
| 2" | 50 | Φ165 | Φ125 | Φ99 | 230 |
| 2 1/2" | 65 | Φ185 | Φ145 | Φ118 | 290 |
| 3" | 80 | Φ200 | Φ160 | Φ132 | 310 |
| 4" | 100 | Φ220 | Φ180 | Φ156 | 350 |
| 5" | 125 | Φ250 | Φ210 | Φ184 | 400 |
| 6" | 150 | Φ285 | Φ240 | Φ211 | 480 |
| 8" | 200 | Φ340 | Φ295 | Φ266 | 600 |
| 10" | 250 | Φ405 | Φ355 | Φ319 | 730 |
| 12" | 300 | Φ460 | Φ410 | Φ370 | 850 |
| 14" | 350 | Φ520 | Φ470 | Φ429 | 980 |
| 16" | 400 | Φ580 | Φ525 | Φ480 | 1100 |
| 18" | 450 | Φ640 | Φ585 | Φ548 | 1200 |
