Home > Industrial Equipment & Components > Valve > Ball Valve > Bundor 6 Inch Ht200 Dn80 Pn16 Gate Valve With Handwheel Water Non Rising Resilient Seat Flanged Gate Valve

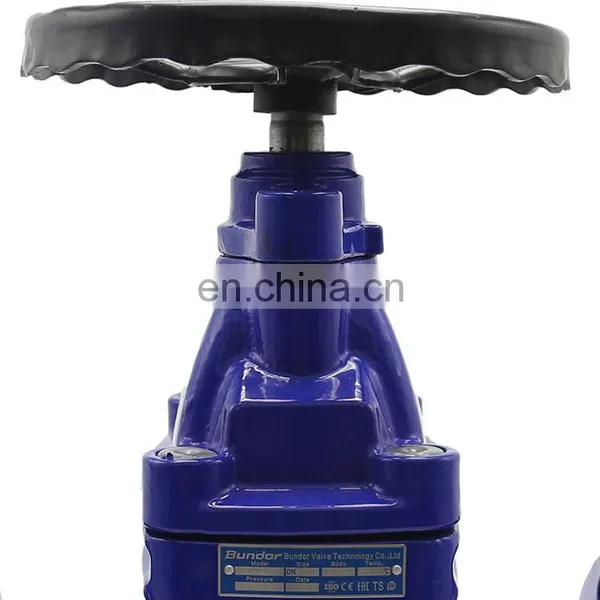

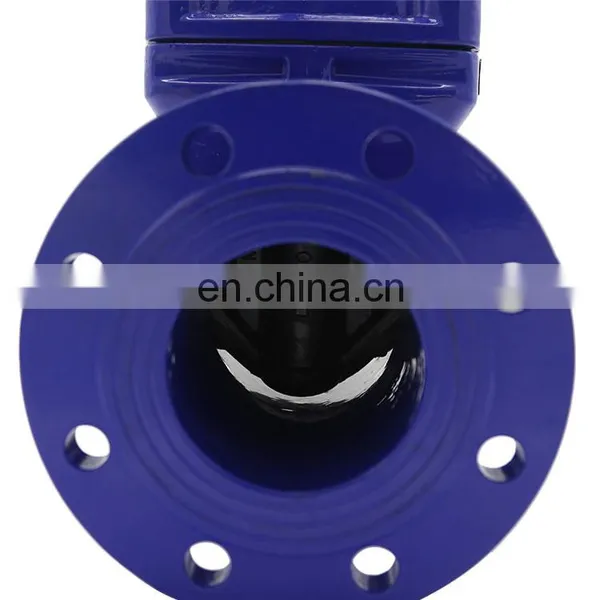

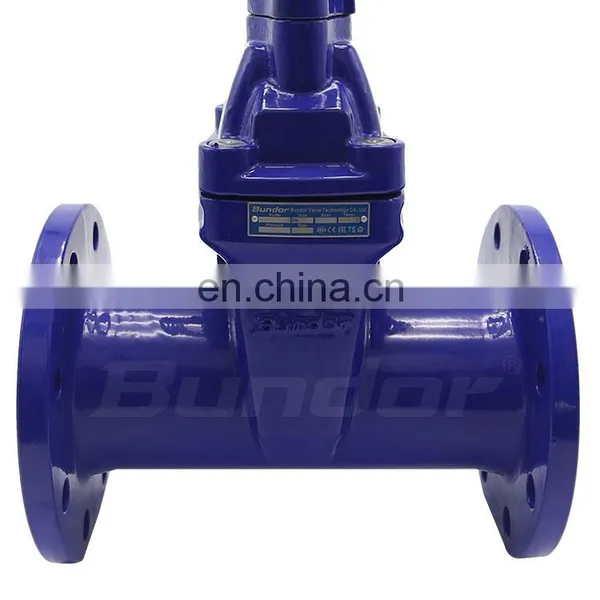

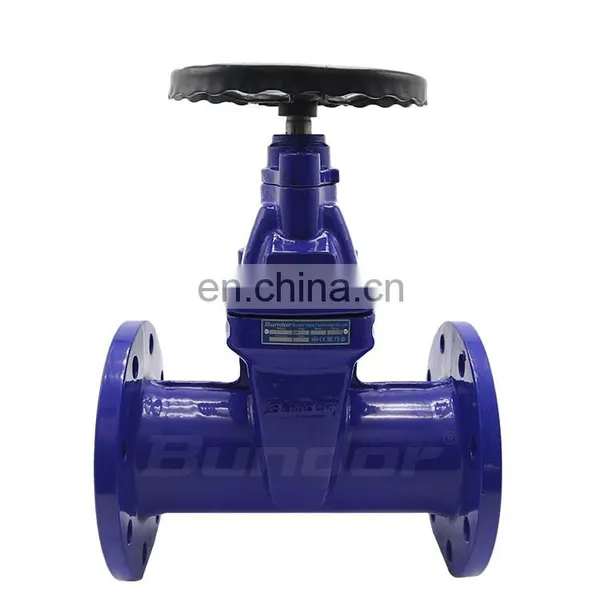

Bundor 6 Inch Ht200 Dn80 Pn16 Gate Valve With Handwheel Water Non Rising Resilient Seat Flanged Gate Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1992
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bundor 4 Inch Water Gate Valve DN250 Ductile Iron Gate ValveNegotiableMOQ: 1 -
Bundor DN50-600 Flange Wedge Gate Valve PN16 Hand Wheel Rising Stem Extension Stem Gate ValveNegotiableMOQ: 1
-
Bundor 4" /DN100 Flanged Dn20 Brass Seal Ggg50 Class150 Large Diameter 300mm Gate Valve With PricesNegotiableMOQ: 1
-
Bundor Natural Gas Gate Valve API 600 Ductile Iron Manual Gate Valve 12 Inch Sluice Gate ValveNegotiableMOQ: 1
-
Bundor DN50-DN1200 Ductile Iron Sluice Valve Flange Gate Valve Manual Gate ValveNegotiableMOQ: 1
Product Description
DIN 3352 F5 Resilient Seated Flanged Gate Valves
Features

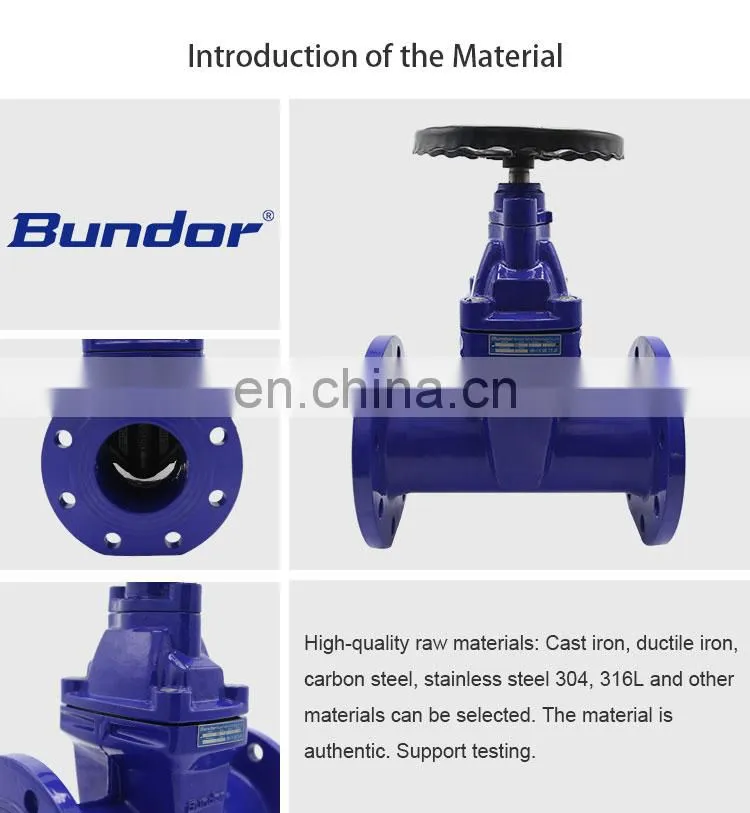

1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient;
4.3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water
5.The stem use brass, operate easily,prevent block
6.Every link, from workblank to the finished product packaging will be inspected strickly.
7.Bundor product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient;
4.3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water
5.The stem use brass, operate easily,prevent block
6.Every link, from workblank to the finished product packaging will be inspected strickly.
7.Bundor product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.
| Name | 1-Body | 2-Seat | 3-Wedge | 4-Stem | |
| Material | DI | EPDM | DI+EPDM | 2Cr13 | |
| Nominal Size | Inch | Face to Face Length F5 | PN16 | ||
| DN | NPS | L | ΦA | ΦB | ΦC |
| 50 | 2'' | 250 | 165 | 125 | 102 |
| 65 | 2 1/2'' | 270 | 185 | 145 | 122 |
| 80 | 3'' | 280 | 200 | 160 | 138 |
| 100 | 4'' | 300 | 220 | 180 | 158 |
| 125 | 5'' | 325 | 250 | 210 | 188 |
| 150 | 6'' | 350 | 285 | 240 | 212 |
| 200 | 8'' | 400 | 340 | 295 | 268 |
| 250 | 10'' | 450 | 405 | 355 | 320 |
| 300 | 12'' | 500 | 460 | 410 | 378 |
| 350 | 14'' | 550 | 520 | 470 | 438 |
| 400 | 16'' | 600 | 580 | 525 | 490 |
| 450 | 18'' | 650 | 640 | 585 | 550 |
| 500 | 20'' | 700 | 715 | 650 | 610 |
| 600 | 24'' | 800 | 840 | 770 | 725 |
| 700 | 28'' | 900 | 910 | 840 | 795 |
| 800 | 32'' | 1000 | 1025 | 950 | 900 |
| 900 | 36'' | 1100 | 1125 | 1050 | 1000 |
| 1000 | 40'' | 1200 | 1255 | 1170 | 1115 |
| 1200 | 48'' | 1400 | 1485 | 1390 | 1330 |

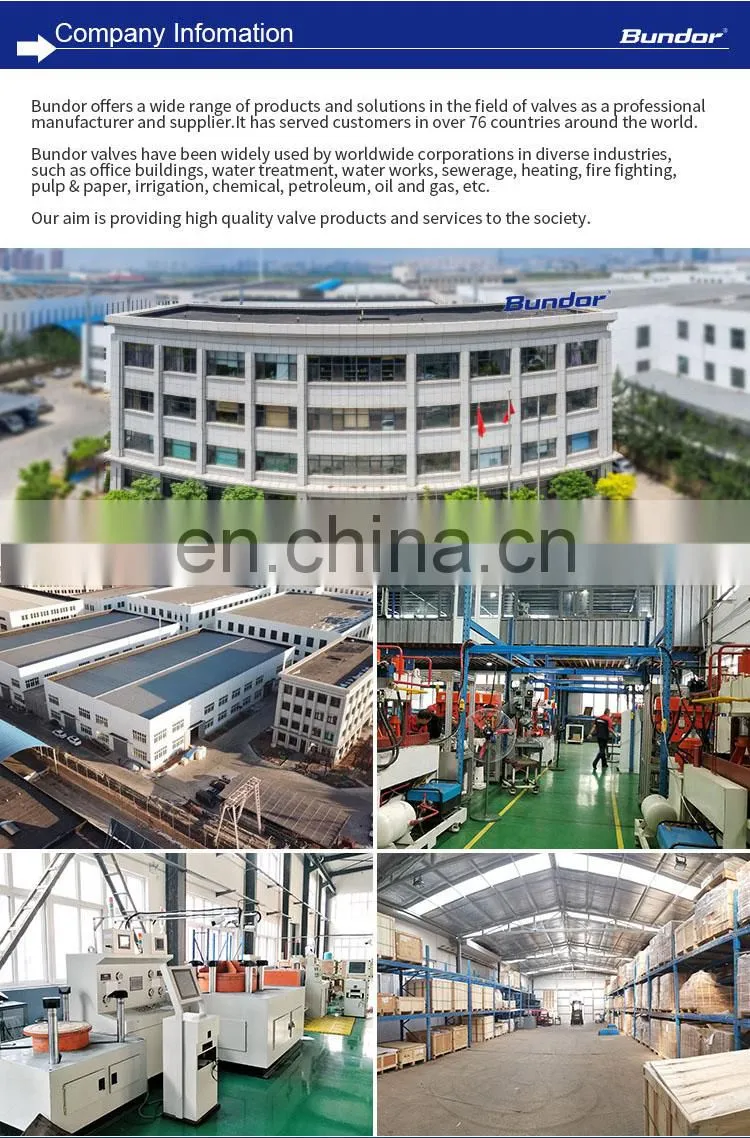

Company Information
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Packaging & Shipping
FAQ
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
