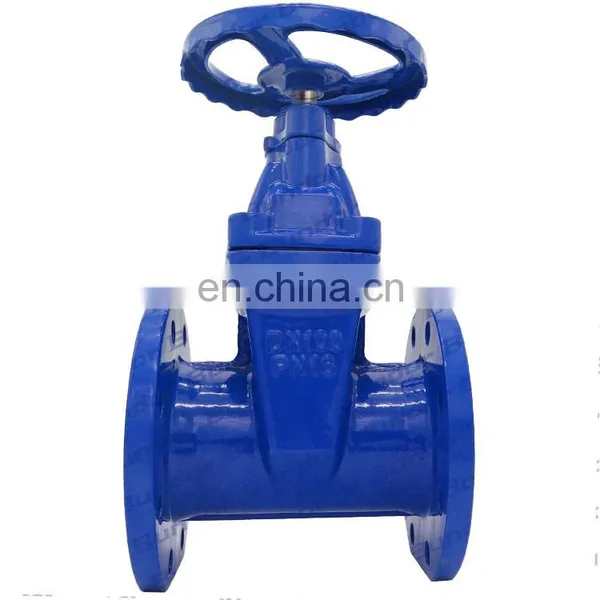

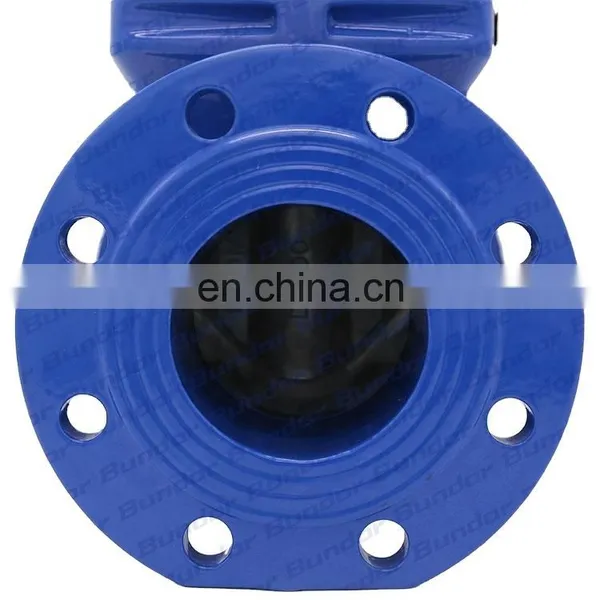

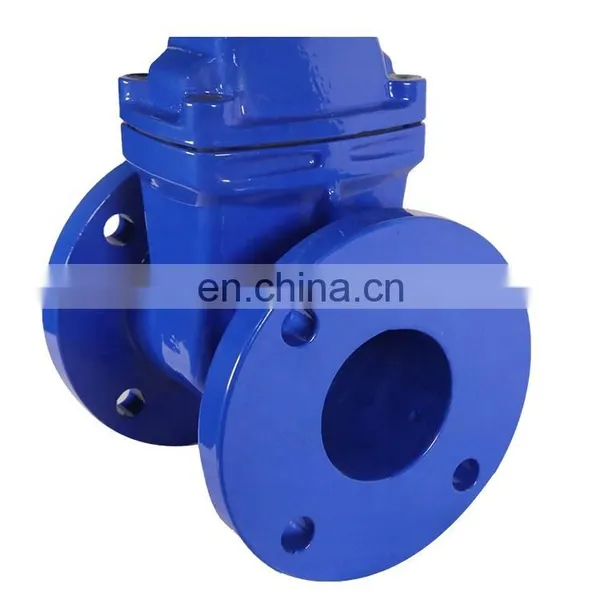

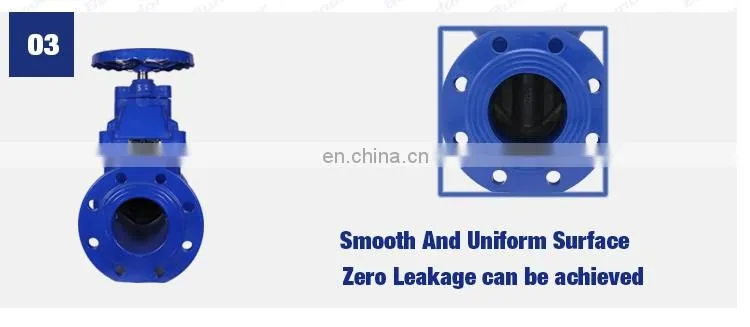

Bundor natural gas gate valve API 600 Ductile Iron manual Gate Valve 12 inch sluice gate valve
- 1000 per Month
- T/T Credit Card
- Bundor DN50-DN1200 Ductile Iron Sluice Valve Flange Gate Valve manual gate valve
- Bundor PN16 DN50-1200 Gate Valve Price Sluice Gate Valve 10" gate valves price
- Bundor class150 DN100 WCB wafer type knife gate valve manufacturer
- Bundor DIN Standard Resilient Gate Valve Non Rising Stem Flange Gate Valve Dimension
- Bundor 6 Inch 3 inch pn16 pn25 forged steel carbon steel rising stem Water Gate Valve Manual Slide Gate Valve
- Bundor Non ring stem Gate Valve Lockout 10 Inch Gate Valve 10" gate valves price
Product Description
Product Features
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside
Product Advantages

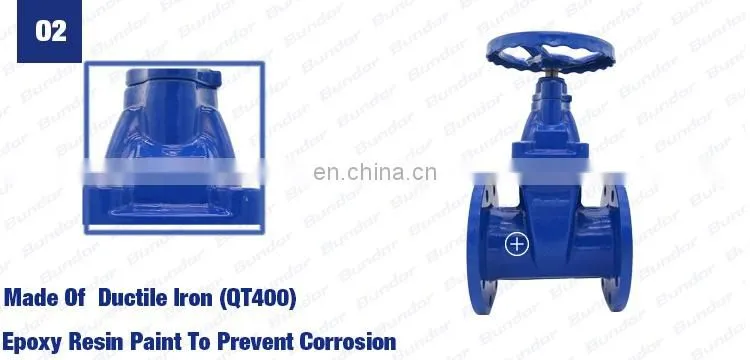

1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient.

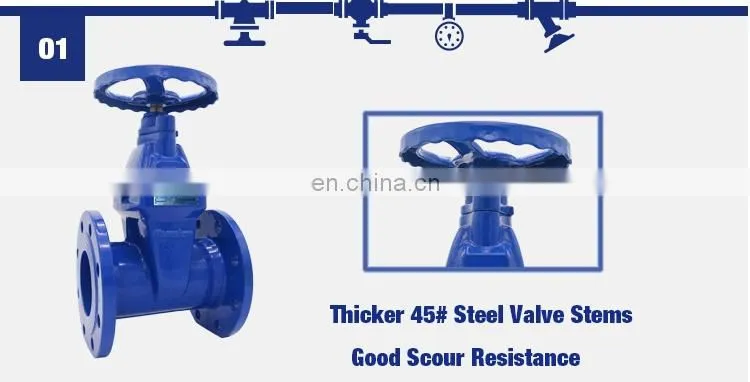

4. 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water.
5.The stem use brass, operate easily,prevent block.

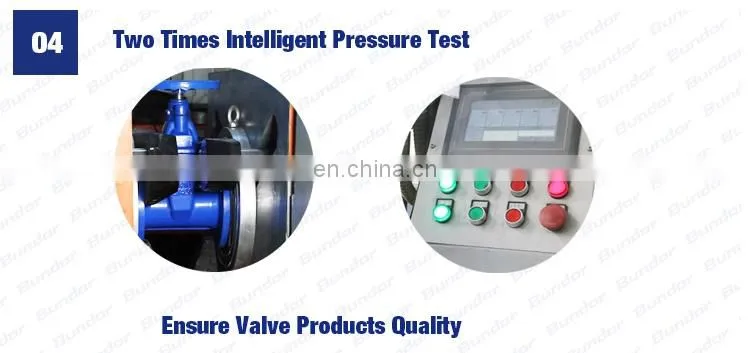

6.Every link, from workblank to the finished product packaging will be inspected strickly.
7.BUNDOR Product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.
Name | 1-Body Name | 2-Seat | 3-Disc | 4-Stem | 5-Handwheel |
Material | DI | EPDM | DI+EPDM | 2Cr13 | DI |
DN | NPS(Inch) | L | ΦA | ΦB | ΦC |
50 | 2'' | 150 | 165 | 125 | 102 |
65 | 2 1/2'' | 170 | 185 | 145 | 122 |
80 | 3'' | 180 | 200 | 160 | 138 |
100 | 4'' | 190 | 220 | 180 | 158 |
125 | 5'' | 200 | 250 | 210 | 188 |
150 | 6'' | 210 | 285 | 240 | 212 |
200 | 8'' | 230 | 340 | 295 | 268 |
250 | 10'' | 250 | 405 | 355 | 320 |
300 | 12'' | 270 | 460 | 410 | 378 |
350 | 14'' | 290 | 520 | 470 | 438 |
400 | 16'' | 310 | 580 | 525 | 490 |
450 | 18'' | 330 | 640 | 585 | 550 |
500 | 20'' | 350 | 715 | 650 | 610 |
600 | 24'' | 390 | 840 | 770 | 725 |
700 | 28'' | 430 | 910 | 840 | 795 |
800 | 32'' | 470 | 1025 | 950 | 900 |
900 | 36'' | 510 | 1125 | 1050 | 1000 |
1000 | 40'' | 550 | 1255 | 1170 | 1115 |
1200 | 48'' | 630 | 1485 | 1390 | 1330 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
