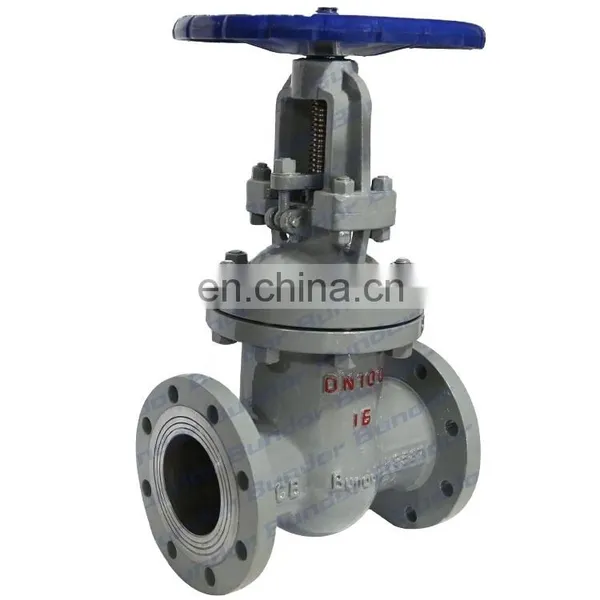

Help CenterBundor DN50-600 Flange Wedge Gate Valve PN16 Hand Wheel Rising Stem Extension Stem Gate Valve
Related Products
-
Bundor 4" /DN100 Flanged Dn20 Brass Seal Ggg50 Class150 Large Diameter 300mm Gate Valve With PricesNegotiableMOQ: 1 -
Bundor Natural Gas Gate Valve API 600 Ductile Iron Manual Gate Valve 12 Inch Sluice Gate ValveNegotiableMOQ: 1
-
Bundor DN50-DN1200 Ductile Iron Sluice Valve Flange Gate Valve Manual Gate ValveNegotiableMOQ: 1
-
Bundor PN16 DN50-1200 Gate Valve Price Sluice Gate Valve 10" Gate Valves PriceNegotiableMOQ: 1
-
Bundor Class150 DN100 WCB Wafer Type Knife Gate Valve ManufacturerNegotiableMOQ: 1
Product Features:
1.Bundor patent products, patent certification.
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The thickness of valve body wall is up to standard.
The valve body wall thickness meets the requirement of GB 26640, the thickness is up to the standard, and the pressure strength is guaranteed.
3.The product has an independent identity to ensure traceability.
Each Bundor product has its own QR code mark, unique identification number, to ensure product traceability.
4.Provide material inspection report.
All Bundor products can provide the material inspection report of the main parts.
5.As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, they will be compensated for the product's quality problem without any conditions.
| Name | 1-Body | 2-Wedge | 3-"O" Ring | 4-Stem | 5-Actuator | ||||||
| Material | Ductile Iron | Ductile Iron+ EPDM | NBR | 2Cr13 | Hand wheel | ||||||
| DN | D | D1 | D2 | n-d | |||||||
| Mpa | 1 | 1.6 | 1 | 1.6 | 1 | 1.6 | f | t | 1 | 1.6 | |
| 50 | 178 | 160 | 125 | 99 | 3 | 17 | 4-Φ18 | ||||
| 65 | 190 | 180 | 145 | 118 | 3 | 17 | 4-Φ18 | ||||
| 80 | 203 | 195 | 160 | 132 | 3 | 18 | 4-Φ18 | ||||
| 100 | 229 | 215 | 180 | 156 | 3 | 19 | 4-Φ18 | ||||
| 125 | 254 | 245 | 210 | 184 | 3 | 20 | 4-Φ18 | ||||
| 150 | 267 | 280 | 240 | 211 | 3 | 21 | 4-Φ18 | ||||
| 200 | 292 | 335 | 295 | 266 | 3 | 20 | 43689 | 43811 | |||
| 250 | 330 | 390 | 400 | 350 | 355 | 319 | 3 | 22 | 43811 | 43825 | |
| 300 | 356 | 440 | 455 | 400 | 410 | 370 | 4 | 24.5 | 43811 | 43825 | |
| 350 | 381 | 500 | 510 | 460 | 470 | 429 | 4 | 26.5 | 16-22 | 16-26 | |
| 400 | 406 | 560 | 575 | 515 | 525 | 480 | 4 | 28 | 16-26 | 16-30 | |
| 450 | 432 | 615 | 640 | 565 | 585 | 530 | 548 | 4 | 30 | 20-26 | 20-30 |
| 500 | 457 | 670 | 715 | 620 | 650 | 582 | 609 | 4 | 31.5 | 20-26 | 20-33 |
| 600 | 508 | 780 | 840 | 725 | 770 | 682 | 720 | 5 | 36 | 20-30 | 20-36 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
