Help CenterBundor Resilient Seat Gate Valve Flanged Ends Dn100 Pn16 Handwheel Non Ring Stem Soft Seal Gate Valve
Related Products
-
Bundor Non Risng Stem Gate Valve Double Bonnet 2 Inch 4 Inch Water Flanged Gate ValveNegotiableMOQ: 1 -
Bundor 6 Inch Ht200 Dn80 Pn16 Gate Valve With Handwheel Water Non Rising Resilient Seat Flanged Gate ValveNegotiableMOQ: 1
-
Bundor 4 Inch Water Gate Valve DN250 Ductile Iron Gate ValveNegotiableMOQ: 1
-
Bundor DN50-600 Flange Wedge Gate Valve PN16 Hand Wheel Rising Stem Extension Stem Gate ValveNegotiableMOQ: 1
-
Bundor 4" /DN100 Flanged Dn20 Brass Seal Ggg50 Class150 Large Diameter 300mm Gate Valve With PricesNegotiableMOQ: 1
Product Advantages
1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.
2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.
3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient.
4. 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water.
5.The stem use brass, operate easily,prevent block.
6.Every link, from workblank to the finished product packaging will be inspected strickly.
7.Budor product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.

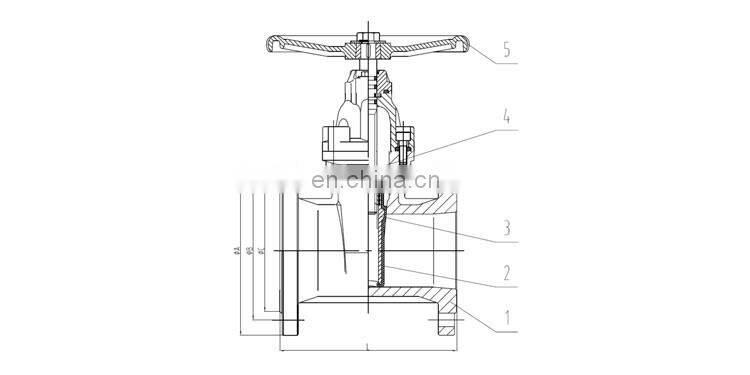

| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator |
| Material | DI | EPDM | DI | 2Cr13 | Manual |
| DN | NPS | L | ΦA | ΦB | ΦC |
| 50 | 2" | 150 | 165 | 125 | 102 |
| 65 | 2 1/2" | 170 | 185 | 145 | 122 |
| 80 | 3" | 180 | 200 | 160 | 138 |
| 100 | 4" | 190 | 220 | 180 | 158 |
| 125 | 5" | 200 | 250 | 210 | 188 |
| 150 | 6" | 210 | 285 | 240 | 212 |
| 200 | 8" | 230 | 340 | 295 | 268 |
| 250 | 10" | 250 | 405 | 355 | 320 |
| 300 | 12" | 270 | 460 | 410 | 378 |
| 350 | 14" | 290 | 520 | 470 | 438 |
| 400 | 16" | 310 | 580 | 525 | 490 |
| 450 | 18" | 330 | 640 | 585 | 550 |
| 500 | 20" | 350 | 715 | 650 | 610 |
| 600 | 24" | 390 | 840 | 770 | 725 |
| 700 | 28" | 430 | 910 | 840 | 795 |
| 800 | 32" | 470 | 1025 | 950 | 900 |
| 900 | 36" | 510 | 1125 | 1050 | 1000 |
| 1000 | 40" | 550 | 1255 | 1170 | 1115 |
| 1200 | 48" | 630 | 1485 | 1390 | 1330 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
