Medium Intensity LED Aviation Obstacle Lights

Medium Intensity LED Aviation Obstacle Lights photo-1

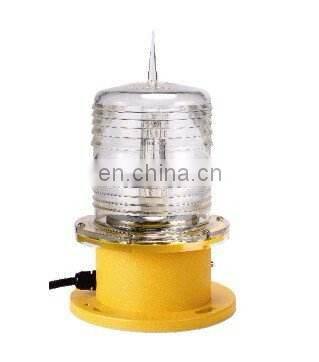

Medium Intensity LED Aviation Obstacle Lights photo-2

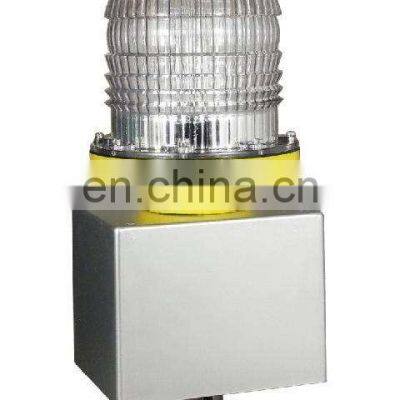

Medium Intensity LED Aviation Obstacle Lights photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Medium intensity LED aviation obstacle light/lamp

Product Details

Base with high intensity aviation aluminum casting, fully sealed structure. Light source adopts independent research and development dedicated LED chip, which have the specific of low power consumption and long long life. Lampshade adopts PC material, it can resist corrosion, anti-UV, anti-shock; Inner adopts imported switching power supply for circuit, it can adapt to global voltages.

With the anti-surge protection device, which can adopt to any high altitude or any possible lightning stroke working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.

medium intensity LED aviation obstacle lightsmedium intensity LED aviation obstacle lights

medium intensity LED aviation obstacle lights


Specification
Specification
LIGHTING

Effective Intensity
2000cd (±25%)
Compliant with
ICAO Annex14,FAA L-864/885
Emitting Color
Red
Operation Mode
Flashing
Vertical Divergence
Horizontal Out-put
360°
Light source
LED
Light lifespan
>10000h
POWER

Power Supply
Optional voltage:AC220V, AC120V, DC12V,DC24V,DC48V
Supply Frequency
50HZ~60HZ
Power Consumption
≤15W
STRUCTURE

Overall Size
Φ186 by 280mm
Installation Size
Φ120 by M8
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
aviation Aluminum alloy, Die-casting
Temperature Range
-40℃~70℃
Weight
≤3kg
Waterproof
IP65
