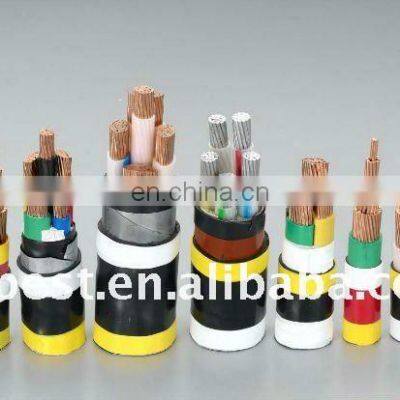

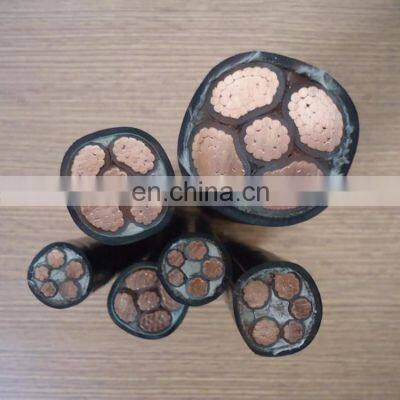

NYM (PVC insulated PVC sheathed 300/500V) VV power cable
- 1000 per Month
- T/T Credit Card
Product Description
NYM (PVC insulated , PVC sheathed, 300/500V) VV power cablewirePVC insulated cable is mainly used for alternating rated voltage as U0/U 0.6,1KV or below transmission and transformation lines
FEATURES:
1) AL or Cu conductor, PVC insulated, PVC or PE sheathed cable;
2) Al or Cu conductor, PVC insulated, steel wire or steel tape amour, PVC or PE sheathed cable;
Note: We can also produce this kind of cables with flame-retardant, Fire-resistant, anti-termite, low smoke and non-halogen cables, respectively according to the requirements of customers.
CHARACTERISTICS
PVC insulated PVC sheathed power cable has the advantages of not only good electrical properties and chemical stability,
but also simple construction and convenient to use. It applies to electrical power transmission and distribution lines with A.C. rate voltage U0/U up to and including 0.6/1 kilovolts.
APPLICATIONS
(1) Rated voltage U0/U is 450/750 kilovolts.
(2) Maximum rated temperature of cable conductor is 70°C.
(3) Maximum conductor temperature is lower than 160°C when cable is shorted for less than 5 seconds.
(4) Ambient temperature is not lower than 0°C and its minimum bending radius is as follows when cable is installed
STANDARDS
The cable is manufactured in accordance with the standards of GB/T12706-2002. It can also be produced according to special requirements put forward by clients.
Type | Name | Application |
VV | Copper conductor ,PVC insulated, PVC sheathed electrical cable | For laying in doors,in tunnel or cable trench, unable to bear external mechanical forces,S ingle core cable in magnteicduct is not permissible |
VLY | Aluminum conductor ,PVC insulated, PVC sheathed electrical cable | |
VY | Copper conductor,PVC insulated , PE sheath electrical cable | |
VLY | Aluminum conductor ,PVC insulated, PE sheathed electrical cable | |
VV22 | Copper conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable | For laying in doors,in tunnels,in cable trench or direct buried,able to bear external mechanical forces, but unable to bear large pulling force. |
VLV22 | Aluminum conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable | |
VV23 | Copper conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable | |
VLV23 | Aluminum conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable | |
VV32 | Copper conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable | For laying indoors,in tunnels,cable trench, well or direct buried,able to bear external mechanical forces and determinate pulling force. |
VLV32 | Aluminum conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable | |
VV33 | Copper conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable | |
VLV33 | Aluminum conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable |
All above can do as every different standards OR as your special request! if any questions, please contact us, sales009(at)
