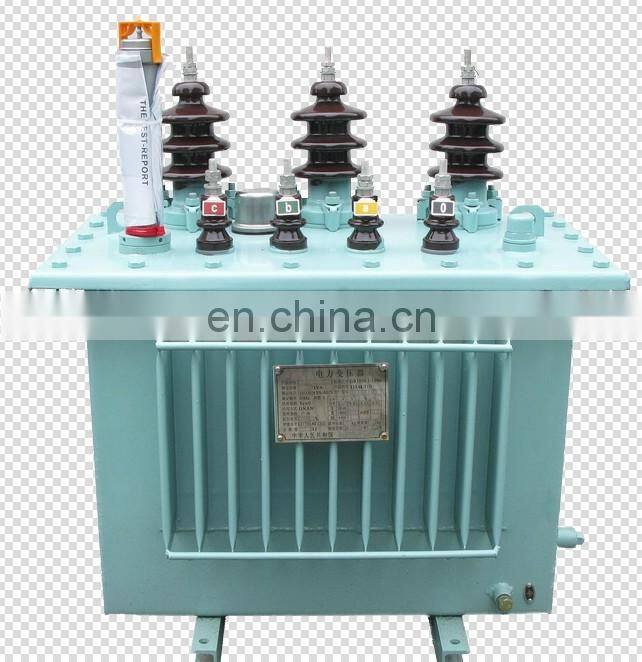

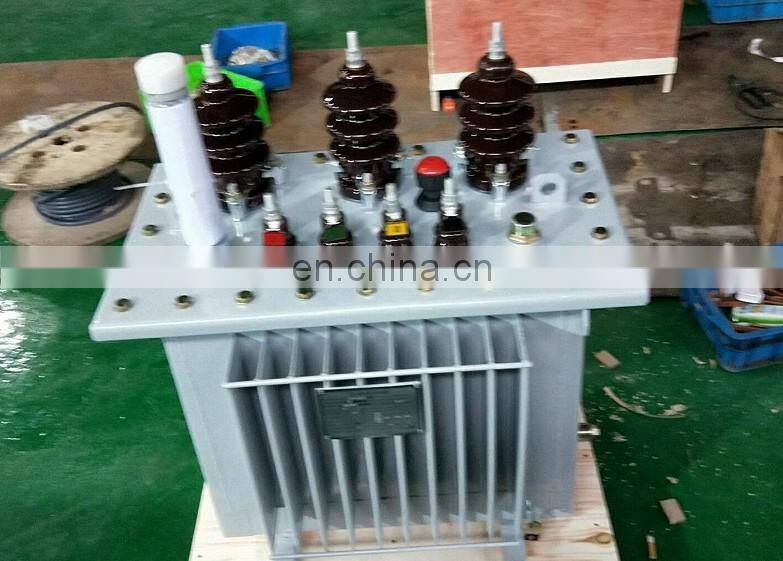

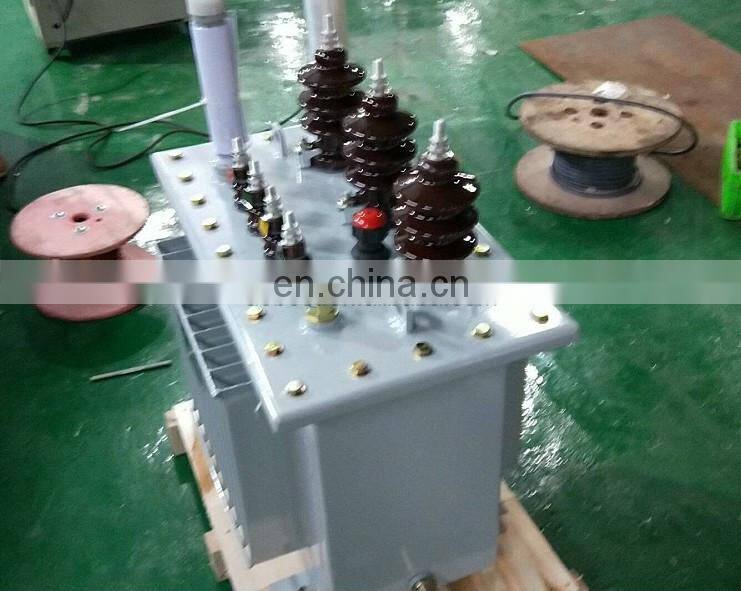

2019 Hot Sale Best Quality 11kv Power Oil Type Transformer
three phase oil type transformer:
Conformed Standards
IEC 60076: Power Transformers
GB 1094: Power Transformers
GB/T 6451-1999: Specifications and Technical Requirements for Three-Phase Oil-Immersed
Power Transformers
Characteristic
Good quality, smart appearance
Good mechanical strength, Excellent ability to with stand short-circuit, compact airtight
Structure, wound tightly, reliable operation
Long life
For further details, pls. Refer to User Manual
| Rated Capacity (kVA) |
Voltage Details & Tapping Range | Coupling Group Mark |
No-Load Loss (kW) |
Load Loss (W) |
No-load Current (%) |
Short-circuit Impedance (%) |
||
| HV (kV) | Tapping Range (%) | LV (kV) | ||||||
| 10 | 6 6.3 10.5 10 11 |
±5 ±2x2.5 |
0.4 | Yyn0 |
0.07 | 0.32/0.35 | 2.3 | 4 |
| 20 | 0.10 | 0.46/0.50 | 2.2 | |||||
| 30 | 0.13 | 0.60/0.65 | 2.1 | |||||
| 50 | 0.17 | 0.87/0.94 | 2.0 | |||||
| 63 | 0.20 | 1.04/1.11 | 1.9 | |||||
| 80 | 0.25 | 1.25/1.36 | 1.8 | |||||
| 100 | 0.29 | 1.50/1.61 | 1.6 | |||||
| 125 | 0.34 | 1.80/1.87 | 1.5 | |||||
| 160 | 0.40 | 2.20/2.39 | 1.4 | |||||
| 200 | 0.48 | 2.60/2.67 | 1.3 | |||||
| 250 | 0.56 | 3.05/3.13 | 1.2 | |||||
| 315 | 0.67 | 3.65/3.73 | 1.1 | |||||
| 400 | 0.80 | 4.30/4.45 | 1.0 | |||||
| 500 | 0.96 | 5.10/5.28 | 1.0 | |||||
| 630 | Dyn11 | 1.20 | 6.20/6.50 | 0.9 | 4.5 | |||
| 800 | 1.40 | 7.50/7.88 | 0.8 | |||||
| 1000 | 1.70 | 10.3/10.83 | 0.7 | |||||
| 1250 | 1.95 | 12.0/12.6 | 0.6 | |||||
| 1600 | 2.40 | 14.5/15.2 | 0.6 | |||||
| 2000 | 2.66 | 18.5/19.4 | 0.6 | 5.5 | ||||
Package:
| Packing: | wood carton or as the requirement of the customer |
|---|---|
| Standard: | IEC60076, GB |
| Origin: | China |
| HS Code: | 85042100 |
| Production Capacity: | 20000pcs/year |

Welcome inquiry us!!
