Rubber Cable
Rubber Sheathed Flexible Cable
H07RN-F Cable 450/750V
Application |
The rubber sheathed flexible cables are mostly used as power cable for equipment in industry work such as boilers, heating plates, hand lamps, transportable motor etc. They can be installed at medium mechanical stress in dry, damp and wet areas as well as in open air and in agriculture plants. These cables are also suitable for fixed installation on plaster, in temporary buildings and residential barracks. They are suitable for direct laying on components and mechanical parts of machines like lifts and cranes. The cables are able to be used in case of protected and fixed installation in tubes or in equipment as well as rotor connecting cable of motors with a working voltage up to and including AC 1000V or DC 750V against ground. They are designed to provide high flexibility and have the capacity to withstand weather, oils, mechanical and thermal stresses. The cable is resistant to ozone and weather effects. |
||
Standard |
IEC 60245-4:2004 (60245 IEC 57 YZW, 60245 IEC 66 YCW) |
||

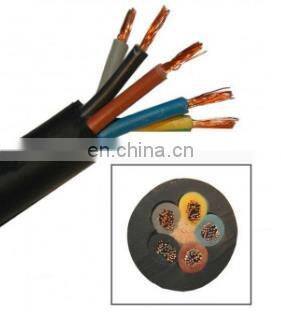

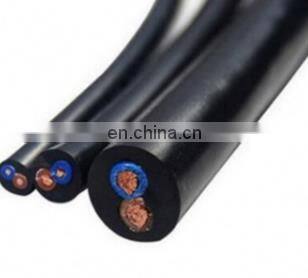

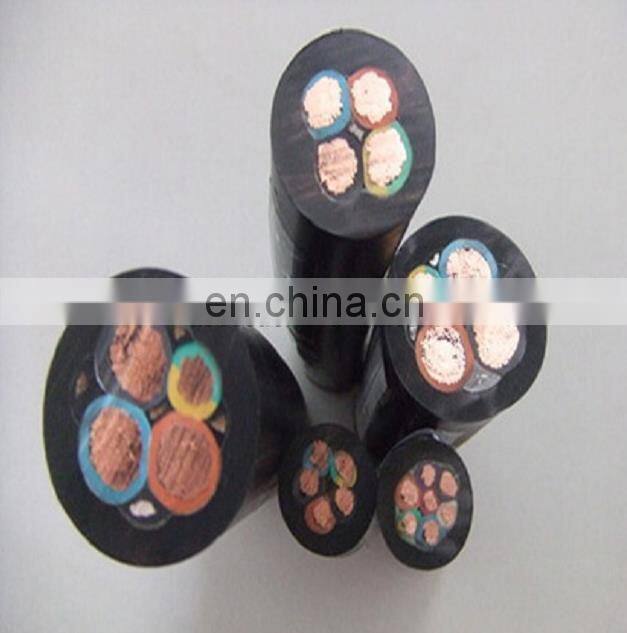

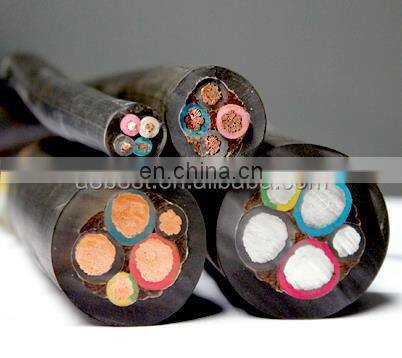

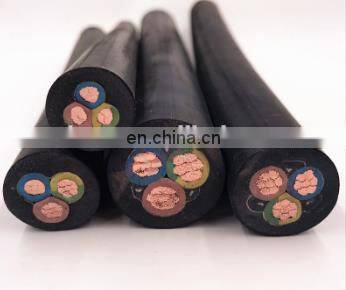

Cable Structure |
Conductor : |
Electrolytic copper, tinned, Class 5 according to IEC 60228 |
|
Insulation : |
EPR (Ethylene Propylene Rubber) compound |
||
Sheath : |
Heavy duty rubber compound |
||
|
Technical Data |
Voltage Rating : |
H05RN-F: AC 300/500V H07RN-F: AC 450/750V |
|
Temperature Rating : |
Conductor operating max temperature +90°C |
||
|
Cable operating environment temperature from -40°C to +90°C |
||
|
Short circuit conductor max temperature +250°C for 5s |
||
Test Voltage : |
AC 50Hz 2500V/5min No breakdown |
||
Min. Bending Radius : |
Up to 25mm²: 6×overall diameter Above 25mm²: 8×overall diameter |
||
Core Identification : |
2 cores |
Blue, Brown |
|
(VDE 0293) |
3 cores (+ earth 3G) |
Blue, Brown, Black Blue, Brown (+ Green/Yellow) |
|
|
4 cores (+ earth 4G) |
Blue, Brown, Black, Black Blue, Brown, Black (+ Green/Yellow) |
|
|
5 cores (+ earth 5G) |
Blue, Brown, Black, Brown, Black Blue, Brown, Black, Black (+ Green/Yellow) |
|
|
6 cores and more |
Black core, white numbering (+ Green/Yellow) |
|
Sheath Color : |
Black |
|
|
Cable Marking : |
RUBBER CABLE H05RN-F (H07RN-F) **mm² 300/500V (450/750V) SHSU |
||
