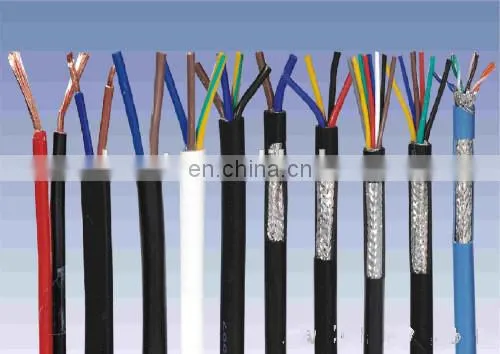

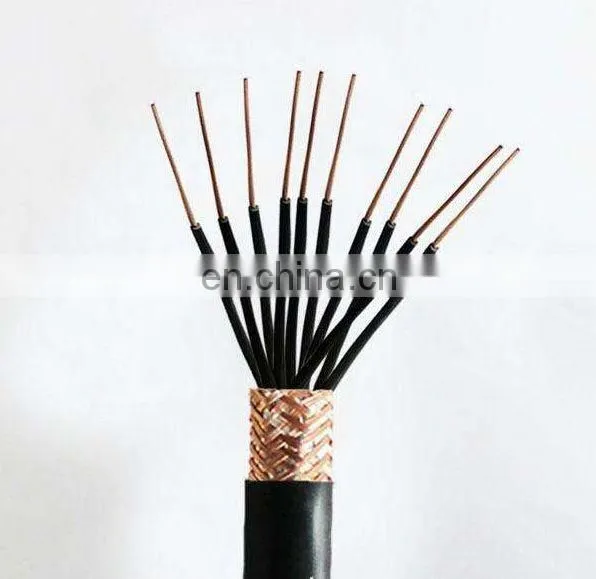

Hot Sale SY FLEXIBLE CONTROL CABLE Steel Wire Braid Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Aluminum Foil Screened Control Cable For ChileNegotiableMOQ: 1 -
Most Competitive Price Fireproof Signal Control Cable IEC 60331 - ScreenedNegotiableMOQ: 1
-
2011 Hot Sale Fireproof Signal Control Cable Communication IEC 60331 PTSNegotiableMOQ: 1
-
Best Price Best Quality Fireproof Signal Control Cable JE-H(ST)H FE180 E90NegotiableMOQ: 1
-
Hot Sale Flexible Screened Instrumentation Armoured CableNegotiableMOQ: 1
SY 5 Cores Steel Wire Braid Cable
Temperature range flexible : - 5OC to + 70OC
Static : - 40OC to + 70OC
| Size SQ. MM | Number of Cores | Diameter over laid up cores MM | Diameter over Bedding MM | Diameter over Braid MM | Nominal Overall Diameter MM | Weight KG / KM |
| 0.5 | 2 | 3.9 | 5.5 | 6.5 | 8.3 | 91 |
| 0.5 | 3 | 4.2 | 5.7 | 6.7 | 8.6 | 99 |
| 0.5 | 4 | 4.8 | 6.2 | 7.2 | 9.1 | 113 |
| 0.5 | 5 | 5.1 | 6.7 | 7.7 | 9.7 | 129 |
| 0.5 | 7 | 5.7 | 7.3 | 8.3 | 10.3 | 150 |
| 0.5 | 12 | 8.1 | 9.7 | 10.7 | 12.4 | 214 |
| 0.5 | 18 | 9.7 | 11.2 | 12.4 | 14.3 | 298 |
| 0.5 | 25 | 11.6 | 13.7 | 14.9 | 16.8 | 400 |
| 0.5 | 30 | 12.4 | 14.2 | 15.4 | 17.7 | 454 |
| 0.5 | 35 | 13.5 | 15.9 | 17.1 | 19.9 | 585 |
| 0.5 | 41 | 14.9 | 17.5 | 18.7 | 21.5 | 671 |
| 0.5 | 50 | 15.8 | 18.4 | 19.6 | 21.9 | 694 |
| 0.5 | 60 | 17.2 | 20.0 | 21.2 | 24.2 | 895 |
| 0.75 | 2 | 4.5 | 6.1 | 7.1 | 9.0 | 85 |
| 0.75 | 3 | 4.8 | 6.4 | 7.4 | 9.3 | 116 |
| 0.75 | 4 | 5.3 | 6.9 | 7.9 | 9.8 | 133 |
| 0.75 | 5 | 6.0 | 7.6 | 8.6 | 10.5 | 155 |
| 0.75 | 7 | 6.7 | 8.3 | 9.3 | 11.2 | 182 |
| 0.75 | 12 | 9.2 | 10.8 | 11.8 | 13.7 | 266 |
| 0.75 | 18 | 11.4 | 13.1 | 14.3 | 16.2 | 388 |
| 0.75 | 25 | 13.9 | 15.6 | 16.8 | 19.1 | 521 |
| 0.75 | 30 | 14.4 | 16.1 | 17.3 | 19.6 | 572 |
| 0.75 | 35 | 16.2 | 17.9 | 19.1 | 21.4 | 684 |
| 0.75 | 50 | 18.9 | 20.9 | 22.1 | 24.8 | 909 |
| 0.75 | 60 | 20.3 | 22.3 | 23.8 | 26.4 | 1050 |
| 1.0 | 2 | 4.7 | 6.3 | 7.3 | 9.3 | 101 |
| 1.0 | 3 | 5.0 | 6.6 | 7.6 | 9.5 | 126 |
| 1.0 | 4 | 5.6 | 7.2 | 8.2 | 10.1 | 146 |
| 1.0 | 5 | 6.3 | 7.9 | 8.9 | 10.8 | 171 |
| 1.0 | 7 | 7.8 | 8.6 | 9.6 | 11.5 | 203 |
| 1.0 | 12 | 9.7 | 11.2 | 12.4 | 14.3 | 314 |
| 1.0 | 18 | 11.6 | 13.6 | 14.8 | 16.7 | 441 |
| 1.0 | 25 | 14.0 | 16.2 | 17.4 | 19.7 | 594 |
| 1.0 | 30 | 14.9 | 16.8 | 18.0 | 20.3 | 658 |
| 1.0 | 35 | 16.3 | 18.6 | 19.8 | 22.1 | 786 |
| 1.0 | 50 | 19.4 | 21.8 | 23.3 | 25.9 | 1070 |
| 1.0 | 60 | 20.9 | 23.6 | 25.1 | 27.7 | 1240 |
| 1.5 | 2 | 5.2 | 6.8 | 7.8 | 9.8 | 114 |
| 1.5 | 3 | 5.6 | 7.2 | 8.2 | 10.1 | 145 |
| 1.5 | 4 | 6.3 | 7.9 | 8.9 | 10.8 | 171 |
| 1.5 | 5 | 7.1 | 8.7 | 9.7 | 11.6 | 202 |
| 1.5 | 7 | 8.8 | 9.5 | 10.5 | 12.4 | 242 |
| 1.5 | 12 | 10.9 | 12.8 | 14.0 | 15.9 | 394 |
| 1.5 | 18 | 13.0 | 15.1 | 16.3 | 18.6 | 553 |
| 1.5 | 25 | 15.6 | 18.4 | 19.6 | 21.9 | 746 |
| 1.5 | 30 | 16.7 | 19.1 | 20.3 | 23.0 | 850 |
| 1.5 | 35 | 18.2 | 20.7 | 21.9 | 24.6 | 990 |
| 1.5 | 50 | 21.8 | 24.7 | 26.2 | 29.2 | 1380 |
| 1.5 | 60 | 23.4 | 26.3 | 27.8 | 30.8 | 1570 |
| 2.5 | 2 | 6.4 | 8.0 | 9.0 | 11.0 | 143 |
| 2.5 | 3 | 6.9 | 8.5 | 9.5 | 11.4 | 193 |
| 2.5 | 4 | 7.8 | 9.4 | 10.4 | 12.3 | 232 |
| 2.5 | 5 | 8.7 | 10.3 | 11.3 | 13.2 | 277 |
| 2.5 | 7 | 10.8 | 11.3 | 12.5 | 14.4 | 353 |
| 2.5 | 12 | 13.4 | 15.3 | 16.5 | 18.8 | 575 |
| 2.5 | 18 | 16.0 | 18.5 | 19.7 | 22.0 | 818 |
| 2.5 | 25 | 19.2 | 22.1 | 23.6 | 26.2 | 1130 |
| 2.5 | 30 | 20.6 | 23.4 | 24.9 | 27.5 | 1290 |
| 2.5 | 35 | 22.4 | 25.3 | 26.8 | 29.8 | 1540 |
| 2.5 | 50 | 26.8 | 29.8 | 31.3 | 34.7 | 2060 |
We have the most professional manufactory of cables.
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
