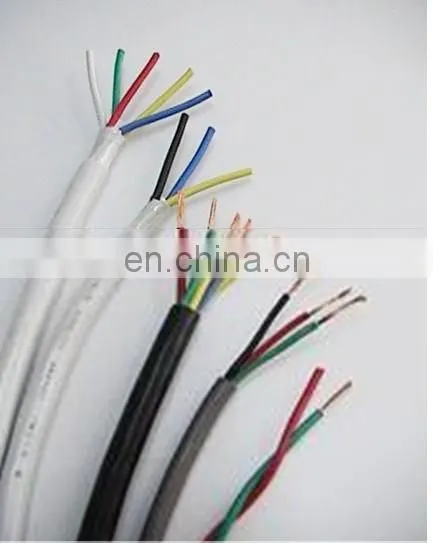

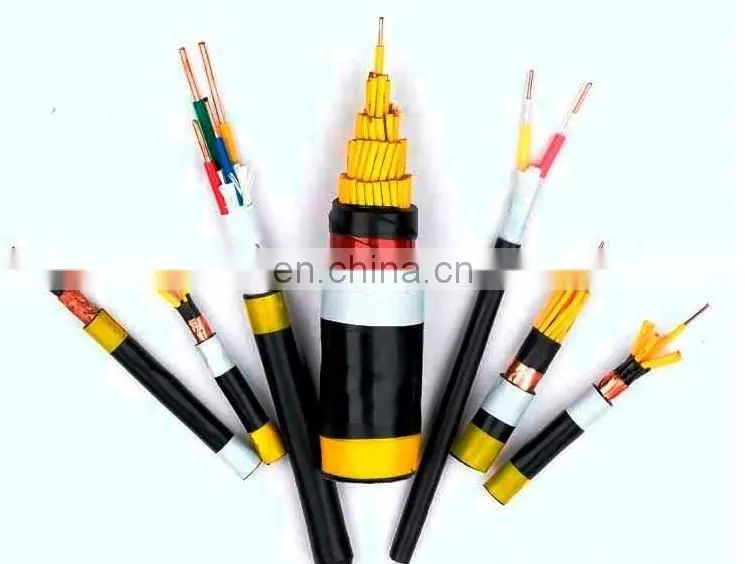

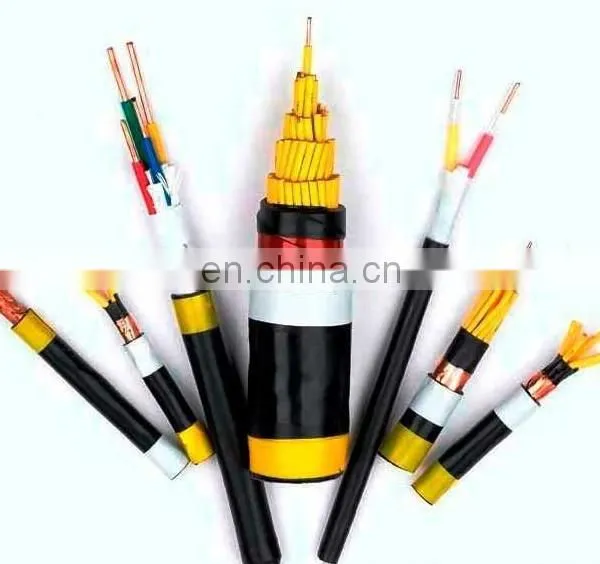

Help Center0.75mm 1mm 1.5mm 2.5mm PVC Shielded Multicore Control Cable
Related Products
-
HOT SALE Environment-friendly Control Cable KVV TypeNegotiableMOQ: 1 -
HOT CAKES Environment-friendly Instrumentation Electric Cable and Control CableNegotiableMOQ: 1
-
Pvc Insulated Pvc Sheathed Braid Shielded Flexible Automotive Control CableNegotiableMOQ: 1
-
Hot Sale SY FLEXIBLE CONTROL CABLE Steel Wire Braid CableNegotiableMOQ: 1
-
Factory Direct Aluminum Foil Screened Control Cable For ChileNegotiableMOQ: 1
Control Cable 450/750V~0.6/1kV Cable,copper conductor Flame-retardant PVC insulated and sheath steel tape armoured
1.Standard
The control cable can be produced according to the standard GB9330-1988,IEC60227(60502,60332),DIN, BS, and our factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
Flame-retardant control cable is suitable for connecting wires between electric equipments with a special flame-retardant requirement in controlling, monitoring loop and protecting circuit at rated voltage up to 600/1000V(A.C.). Our flame-retardant control cable includes A class flame-retardant control cable, special flame-retardant control cable, low smoke halogen free flame-retardant control cable, low smoke low halogen flame-retardant control cable, XLPE insulated control cable and XLPE insulated flame-retardant control cable.
3.Service Conditions
(1) The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D

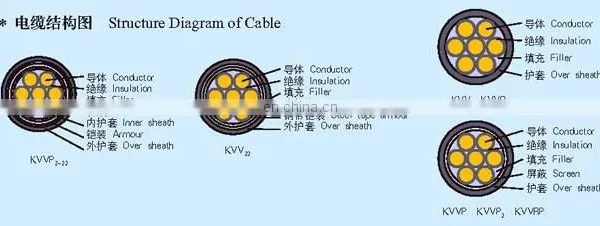

PVC Insulated Control Cable Parameter (Example)
Type |
Name |
Section Area(mm2) |
No. of Core |
KVV |
Copper Conductor, PVC Insulated and Sheathed control cable | 0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP |
Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP2 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP2-22 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVV22 |
Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVR |
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVRP |

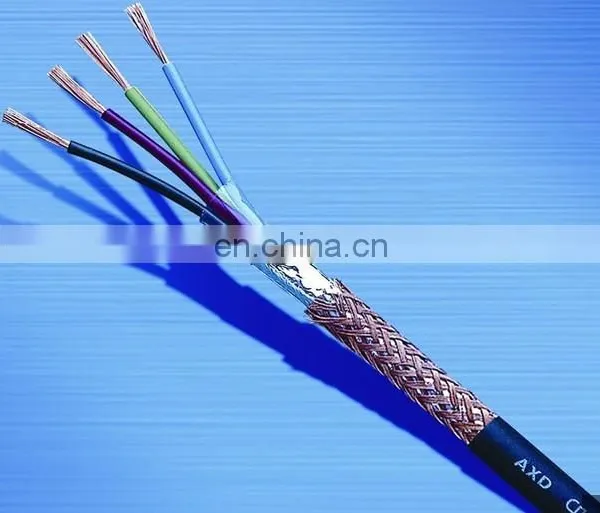

Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
