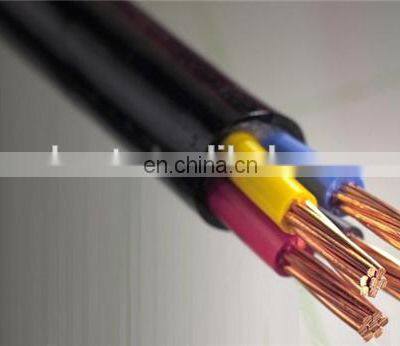

H05VV-F flexible cable 227 IEC 01
Reference Standard:
The product is manufactured according to the stand of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications:
The product is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively
Operating characteristics:
Rated power-frequency voltage Uo/U:450/750V; 300/500V and 300/300V
Max. permissible continuous operating temperature of conductor:
227 IEC 07 (BV-90)------------90oC
227 IEC 08 (BV-90)------------90oC
For other types------------------70oC
The ambient temperature under installation should not below 0
The bending radius of cable:
D≤25mm----------≥4D
D>25mm-----------≥6D
(D-diameter of the cable)
Type |
Name |
227 IEC 01 (BV) |
Single-core non-sheathed cable with solid conductor for general purposes |
227 IEC 02 (RV) |
Single-core non-sheathed cable with flexible conductor for general purposes |
|
227 IEC 05 (BV) |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
|
227 IEC 06 (RV) |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
|
227 IEC 07 (BV-90) |
Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
|
227 IEC 08 (RV-90) |
Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
227 IEC 10 (BVV) |
Light PVC sheathed cable |
227 IEC 42 (RVB) |
Flat non-sheathed flexible cable |
227 IEC 52 (RVV) |
Light PVC sheathed flexible cable |
227 IEC 53 (RVV) |
Ordinary PVC sheathed flexible cable |
|
227 IEC 74 (RVVYP) |
Oil-proof PVC sheathed, screened flexible cable |
|
227 IEC 75 (RVVY) |
Oil-proof PVC sheathed, non screened flexible cable |
Type |
Rated voltage V |
No. of cores |
Nominal cross-sectional area of conductor (mm2) |
Standards |
227 IEC 01 (BV) |
450/750 |
1 |
1.5~400 |
GB5023-1997 IEC60227-1997 |
227 IEC 02 (RV) |
450/750 |
1 |
1.5~240 |
|
227 IEC 05 (BV) |
300/500 |
1 |
0.5~1 |
|
227 IEC 06 (RV) |
300/500 |
1 |
0.5~1 |
|
227 IEC 07 (BV-90) |
300/500 |
1 |
0.5~2.5 |
|
227 IEC 08 (RV-90) |
300/500 |
1 |
0.5~2.5 |
|
227 IEC 10 (BVV) |
300/500 |
2,3,4,5 |
1.5~35 |
|
227 IEC 42 (RVB) |
300/300 |
2 |
0.5~0.75 |
|
227 IEC 52 (RVV) |
300/300 |
2,3 |
0.5~0.75 |
|
227 IEC 53 (RVV) |
300/500 |
2~24 |
0.75~6 |
|
227 IEC 74 (RVVYP) |
300/500 |
2~26 |
0.5~2.5 |
|
227 IEC 75 (RVVY) |
300/500 |
2~26 |
0.5~2.5 |
