Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Best Price 1mm SDI Cable --red Black

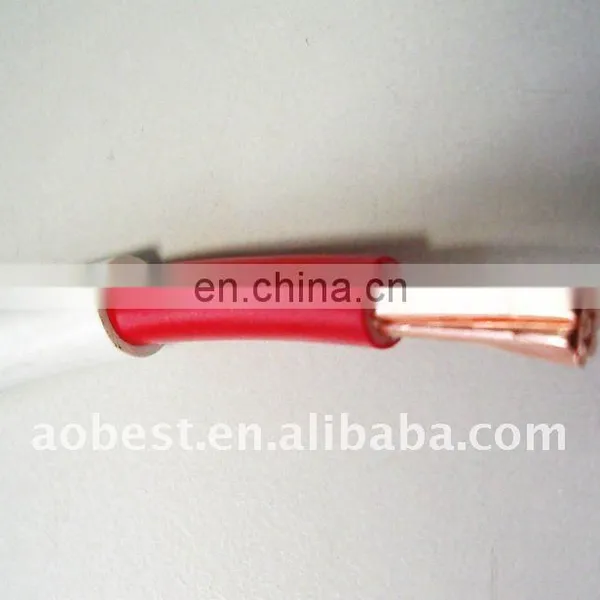

Best Price 1mm SDI Cable --red Black
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pay Later IEC 60245 57 (YZW) 3x1.5sqmm 300/500V Rubber Insulation Flexible CableNegotiableMOQ: 1 -
Pay Later PV Cable Solar Cable Single Core 6mm for Solar Power SystemNegotiableMOQ: 1
-
Pay Later High Quality Pvc Insulation Material Stranded and Solid 6mm Twin and Earth Flat CableNegotiableMOQ: 1
-
Pay Later IEC 60245 57 (YZW) 3x4mm 300/500V Rubber Insulation Flexible CableNegotiableMOQ: 1
-
Pay Later PV Cable Solar Cable Single Core 4mm for Solar Power SystemNegotiableMOQ: 1
SDI Cable
Voltage:
- 450/750 V
Construction:
- Conductor:1.5mm2 - 16 mm2
- Insulation:PVC, V-90, BLACK/RED
- Sheath:PVC, V-90 WHITE
Environmental Performance:
- Normal Operating Temperature 75 C
Standards Compliance:
- AS/NZS 5000.2
Cable Specifications
|
Part
Number
|
Conductor
mm2No./mm
|
Nominal
Overall Diameter
mm
|
Approx.
Mass
kg/km
|
Minimum Installed
Bending Radius
mm
|
Standard Packing
1000m
|
|---|---|---|---|---|---|
| S001.5 | 1.5 | 4.4 | 40 | 20 | |
| S002.5 | 2.5 | 5.1 | 55 | 25 | |
| S004 | 4 | 6.0 | 80 | 25 | |
| S006 | 6 | 6.6 | 100 | 30 | |
| S010 | 10 | 7.8 | 145 | 35 | |
| S016 | 16 | 9.1 | 225 | 40 |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
...
