Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > China Leading Manufacturer H05V-U H07V-U Cable PVC Insulated Non Sheathed Single Core Cable

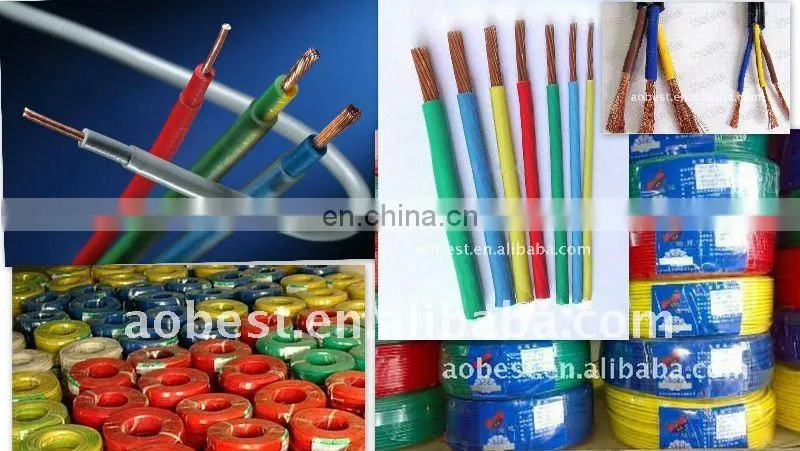

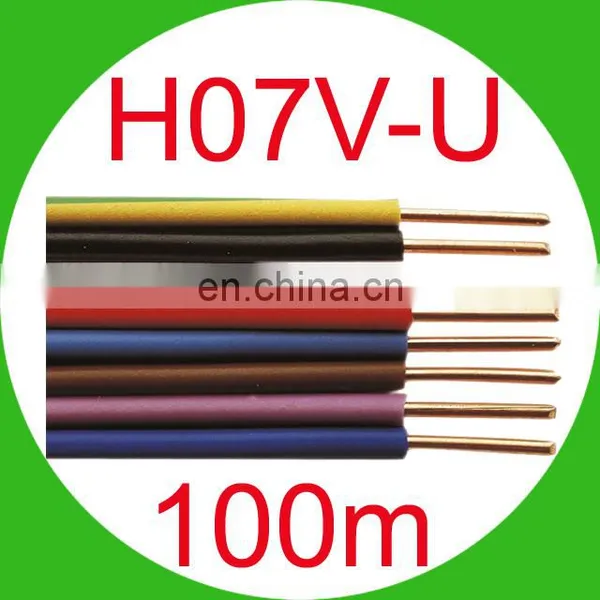

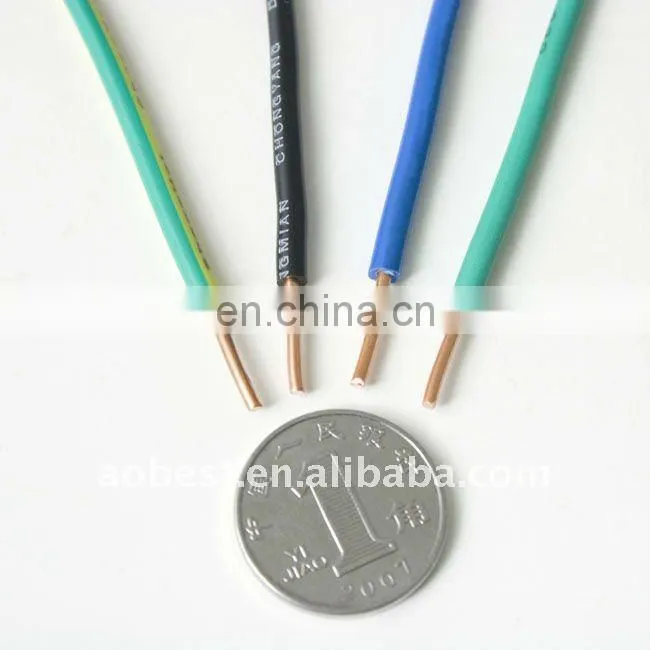

China Leading Manufacturer H05V-U H07V-U Cable PVC Insulated Non Sheathed Single Core Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price H05V-K Cable H07V-K Pvc Insulated Cable 300/500VNegotiableMOQ: 1 -
China Leading Manufacturer H05V-K Cable H07V-K Single Core 300/500V CableNegotiableMOQ: 1
-
2012 Hot Sale !China Yellow and Green Line Housing Wire for VietnamNegotiableMOQ: 1
-
2021 Year Main Export Wire H07V-U Wire 450/750V Power CableNegotiableMOQ: 1
-
Best Price PVC Insulated Single Core Wires H07V-U(Ye) H07V-R(Ym) H05V-U(Yse) H05V-K(Ysf) H07(Yf)NegotiableMOQ: 1
Electrical Wire H05V-U & H07V-U
Characteristics:
| Operating temperature: | +5°C to +70°C on the Conductor |
| Rated voltage: | H05V-U: 300/500 V H07V-U: 450/750 V |
| Max. temperature of short circuit: | 160° C on the conductor 140° C on the conductor / size>300 mm2 |
| Min. bending radius: | Fixed installation: 4x outer diameter |
Specifications Data:
|
Section |
Class of |
Insulation Thickness |
Outer |
Max Resistance |
Cable |
|
mm² |
|
mm |
mm |
ohms/km |
kg/km |
|
H05V-U
|
|||||
| 0,50 | 1 | 0,6 | 2,0 | 36,0 | 8 |
|
0,75 |
1 |
0,6 |
2,2 |
24,5 |
12 |
|
1,0 |
1 |
0,6 |
2,3 |
18,1 |
14 |
|
H07V-U
|
|||||
|
1,5 |
1 |
0,7 |
2,8 |
12,1 |
20 |
|
2,5 |
1 |
0,8 |
3,3 |
7,41 |
30 |
|
4 |
1 |
0,8 |
3,8 |
4,61 |
45 |
|
6 |
1 |
0,8 |
4,3 |
3,08 |
65 |
|
10 |
1 |
1,0 |
5,5 |
1,83 |
105 |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
