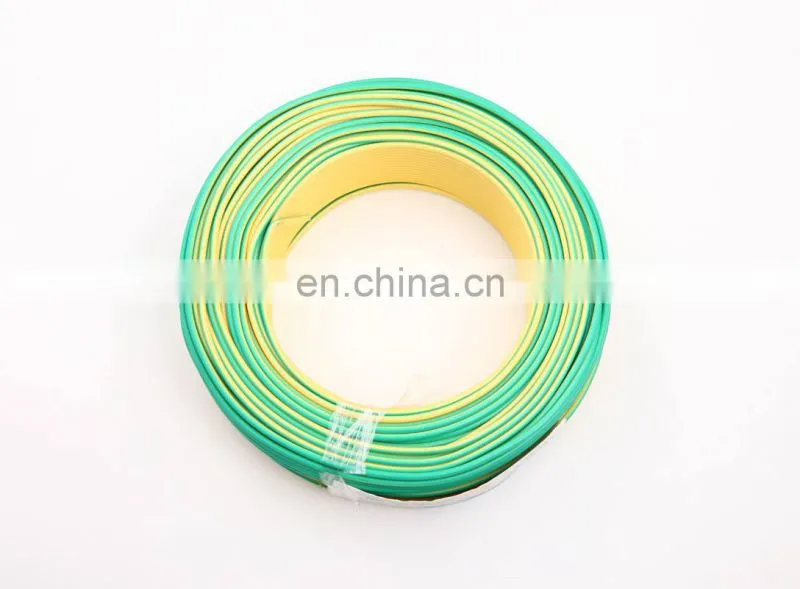

Best Price H05V-K Cable H07V-K Pvc Insulated Cable 300/500V
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Leading Manufacturer H05V-K Cable H07V-K Single Core 300/500V CableNegotiableMOQ: 1 -
2012 Hot Sale !China Yellow and Green Line Housing Wire for VietnamNegotiableMOQ: 1
-
2021 Year Main Export Wire H07V-U Wire 450/750V Power CableNegotiableMOQ: 1
-
Best Price PVC Insulated Single Core Wires H07V-U(Ye) H07V-R(Ym) H05V-U(Yse) H05V-K(Ysf) H07(Yf)NegotiableMOQ: 1
-
2021 Year Best Selling Cable H07V-R Wire 1.5mm 2.5mm 4mmNegotiableMOQ: 1

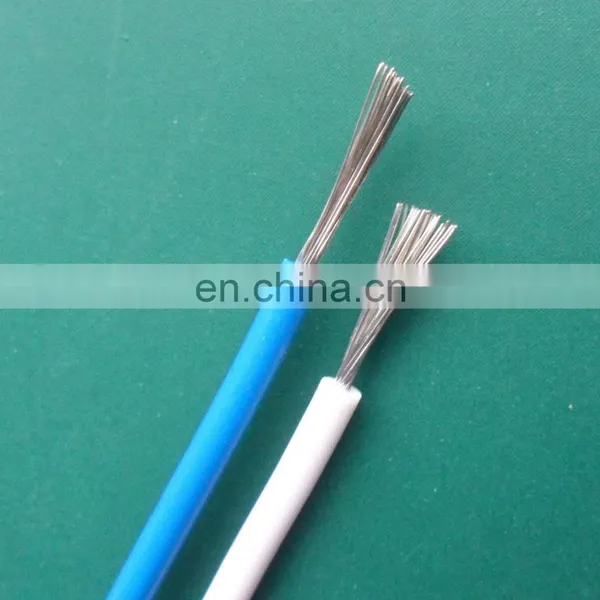

H05V-K H07V-K pvc insulated cable
It is used in connection of unsteady installation and equipment, in buildings, dry places, within tube, above and under plaster.
| Construction | ||
| Conductor | : | Flexible copper wires, plain |
| Insulation | : | PVC |
| Core Identification | : | Different Colours |
| Electrical Parameters | ||
| Standard | : | TS 9758 HD 21,3 S3 |
| Rated Voltage | : | 300/500 V (H05V-K), 450/750 V (H07V-K) |
| Test Voltage | : | 2kV-2,5kV |
| Temperature Range | : | -200C~+700C |
| Max. Short Circuit Temperature | : | 1600 C |
| Min. Bending Radius | : | 10xD |
| Part Number | Nominal Cross Section | No of Cores x Cross Section | Approx. outer Diameter | Approx. Cable Wieight | Conductor Resistance at 200C (Max) | Current Carrying Capacity in ground at 200C | Current Carrying Capacity on air at 300C |
| H05V-K | 0,50 | 15x0,20 | 2,1 | 9 | 39,0 | - | 11 |
| H05V-K | 0,75 | 22x0,20 | 2,3 | 11 | 26,0 | - | 16 |
| H05V-K | 1,00 | 30x0,20 | 2,5 | 14 | 19,5 | 11 | 26 |
| H07V-K | 1,5 | 27x0,50 | 2,9 | 20 | 13,3 | 15 | 24 |
| H07V-K | 2,5 | 47x0,25 | 3,6 | 32 | 7,98 | 20 | 32 |
| H07V-K | 4 | 51x0,30 | 4,2 | 50 | 4,95 | 25 | 42 |
| H07V-K | 6 | 76x0,30 | 4,8 | 70 | 3,30 | 33 | 54 |
| H07V-K | 10 | 73x0,40 | 6,5 | 115 | 1,91 | 45 | 73 |
| H07V-K | 16 | 119x0,40 | 8,0 | 175 | 1,21 | 61 | 98 |
| H07V-K | 25 | 187x0,40 | 10,0 | 270 | 0,780 | 83 | 129 |
| H07V-K | 35 | 255x0,40 | 11,0 | 370 | 0,554 | 103 | 158 |
| H07V-K | 50 | 374x0,40 | 13,5 | 525 | 0,386 | 132 | 198 |
| H07V-K | 70 | 336x0,50 | 15,0 | 700 | 0,272 | 165 | 245 |
| H07V-K | 95 | 456x0,50 | 17,5 | 970 | 0,206 | 197 | 292 |
| H07V-K | 120 | 576x0,50 | 19,5 | 1200 | 0,161 | 235 | 344 |
| H07V-K | 150 | 696x0,50 | 22,0 | 1500 | 0,129 | - | 391 |
| H07V-K | 185 | 888x0,50 | 24,0 | 1860 | 0,106 | - | 448 |
Please contact me freely; maybe I’ll give you a big surprise. ^.^
