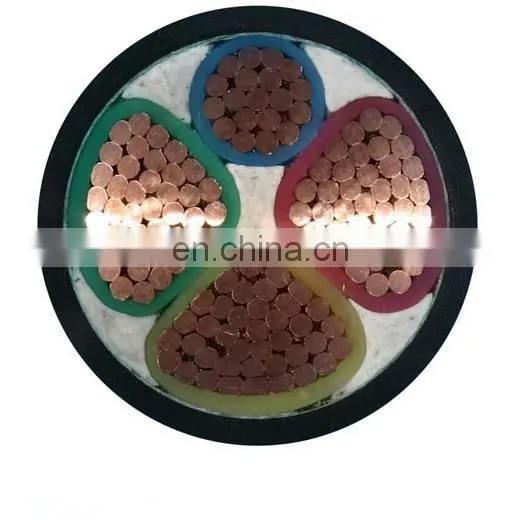

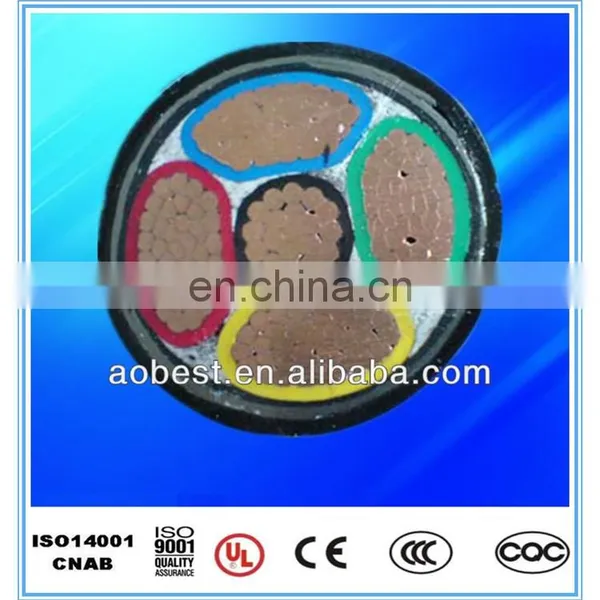

Supply Factory price 0.6/1KV 5x4mm2 Copper CONDUCTOR SWA steel wire PVC insulated power cable
Company Profile:
Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cables
Steel wire armoured cable is suitable for using in power transmission lines with rated voltage up to and including 1KV.
Steel wire armoured cable Product Code & Description:
steel wire armoured cable Model, core number, nominal cross-section and the description:
|
Model |
Core number |
Nominal cross-section |
Description |
|
|
Cooper core |
Aluminum core |
|||
|
VV |
VLV |
1~5 |
1.5~240 |
PVC insulated PVC(Polyvinyl chloride ) sheathed power cable |
|
VV22 |
VLV22 |
4~240 |
PVC insulated PVC sheathed steel tape armored power cable |
|
|
YJV |
YJLV |
1.5~240 |
XLPE insulated PVC sheathed power cable |
|
|
YJV22 |
YJLV22 |
4~240 |
XLPE(Crosslinked polyethylene) insulated steel tape armored PVC sheathed power cable |
|
Min. Bending
Radius For Installation
|
ITEM |
SINGLE CORE CABLE |
THREE-CORE CABLE |
||
|
NO ARMOR |
WITH ARMOR |
NO ARMOR |
WITH ARMOR |
|
|
Min. Bending Radius for Cable Installation
|
20D |
15D |
15D |
12D |
|
Min. Bending Radius Near Junction Box & Terminal Cable ( Bending Shall Be Controlled Carefully ) |
15D |
12D |
12D |
10D |
steel wire armoured cable Storage, transportation
1. Cable storage place should be dry and ventilated.
2. Cable tray is not allowed to place horizontally.
3. When storage avoid humidity and moisture into the cable core, both ends should not be
exposed to the air, uses cable caps to take the ends enclosed.
4. The cable tray is not allowed to place horizontally when transportation, as to avoid
crushing cables.
5. Lifting spreader should be used when lifting cables, pushing from the vehicle is strictly
prohibited.
6. Avoid the moisture into the cable core when transportation.
Technology property:
(1) Insulation core should bear the sparking test standard test standard GB/3048.13.
(2) The sheath should be closed tightened on the insulation. The surface of the sheath have to be smooth and its color should be well distributed.
(3) The finished cable should experienced soaking voltage testing as stipulated in the following table.
Table 1 :
|
Testing conditions |
Unit |
Property Nominal value |
|
The length of Sample |
m |
≥10 |
|
Soaking time |
H |
≥1 |
|
Water temperature |
deg |
20 ± 5deg |
|
Testing voltage value |
V |
3000 |
Our company is a professional supplier of various kinds of cables for over 10 years.
The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
- Any inquiries will be replied within 24 hours.
- OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
- High quality, reasonable and competitive price, fast lead time.
- Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
- Strong technical support (technical data, drawing, etc.)
- Free sample is available with economic express fee.
Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
