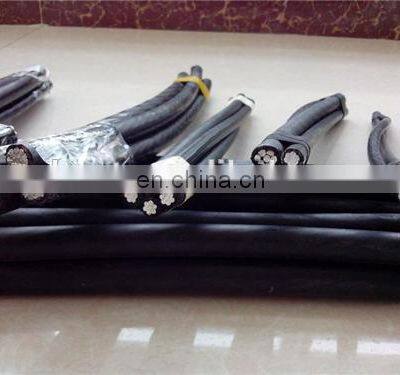

1*35+35mm2 Aluminum Duplex Service Drop Cable AAC / ACSR / Conductor Abc Overhead Cable photo-2

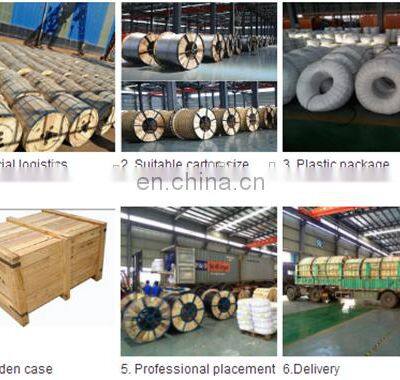

1*35+35mm2 Aluminum Duplex Service Drop Cable AAC / ACSR / Conductor Abc Overhead Cable photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Aobest Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Aluminum duplex service drop cable AAC / ACSR / conductor abc overhead cable



STANDARD: IEC228 IEC209 IEC60502

Application:the product is new type of aeriel cable for power transmitting, It is extensively used in overhead power transmission line,It improves the safety and reliance of electrified wire netting

Specification: Aluminiumstranded conductor(compacted),AAC messenger core (or ACSR messenger core),XLPE(or HDPE)insulated, Twisted(or parallel) power cable





XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation (optional)
+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors.

It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

ABC Aerial cable with ACSR messenger Core

Nominal csetion area(sqmm)

Conductor structure

Insulation material

Insulation Thickness(mm)

Approx. Overall Diameter(mm)

Approx. weight

(kg/km)

Packing meters per drum

Phase

(Compacted AL)

Neutral

(bare ACSR)

(No./mm)

Aluminum

(No./mm)

Steel

(No./mm)

1x16+16

7/1.72

6/1.72

1/1.72

XLPE

1.2

12.5

121.9

250-4000m

1x25+25

7/2.15

6/2.15

1/2.15



1.2

14.9

182.2

250-4000

1x35+35

7/2.54

6/2.54

1/2.54



1.4

17.5

254.7

250-3500m

1x70+70

19/2.15

12/2.15

7/2.15



1.4

23.6

382.2

250-3000m

1x95+95

19/2.54

12/2.54

7/2.54



1.6

27.6

528.2

250-3000m

2x16+16

7/1.72

6/1.72

1/1.72



1.2

14.2

187.6

250-4000m

2x25+25

7/2.15

6/2.15

1/2.15



1.2

16.7

273.8

250-3500m

2x35+35

7/2.54

6/2.54

1/2.54



1.4

19.7

386.9

250-3500m

2x70+70

19/2.15

12/2.15

7/2.15



1.4

26.1

617.2

250-3000m

2x95+95

19/2.54

12/2.54

7/2.54



1.6

30.5

850.9

250-3500m

3x70+70

19/2.15

12/2.15

7/2.15



1.4

29.7

1024.3

250-3000m

3x95+95

19/2.54

12/2.54

7/2.54



1.6

34.6

1413.7

250-3000m

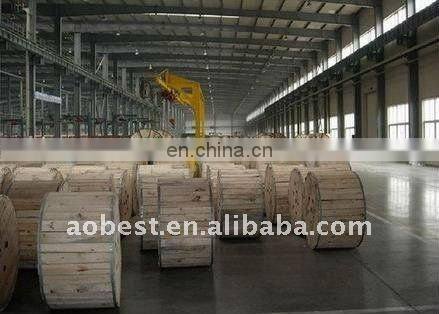

 1*35+35mm2 Aluminum duplex service drop cable AAC / ACSR / conductor abc overhead cable



We have the most professional manufactory of cables.
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
