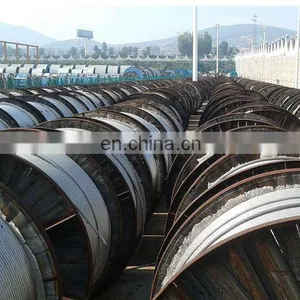

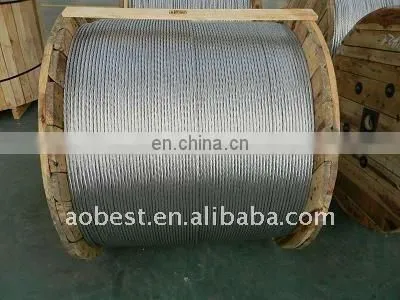

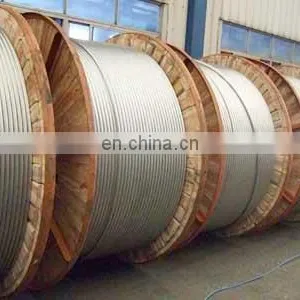

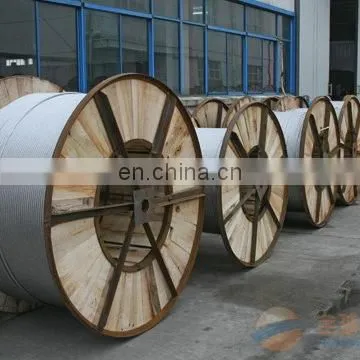

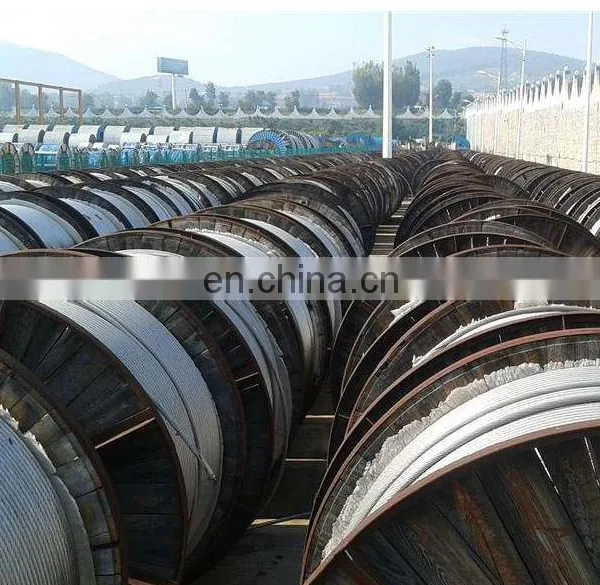

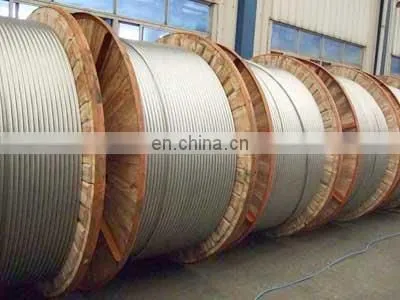

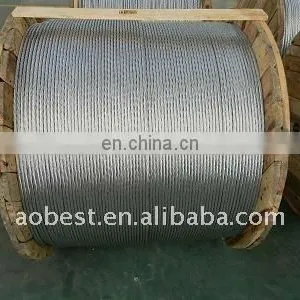

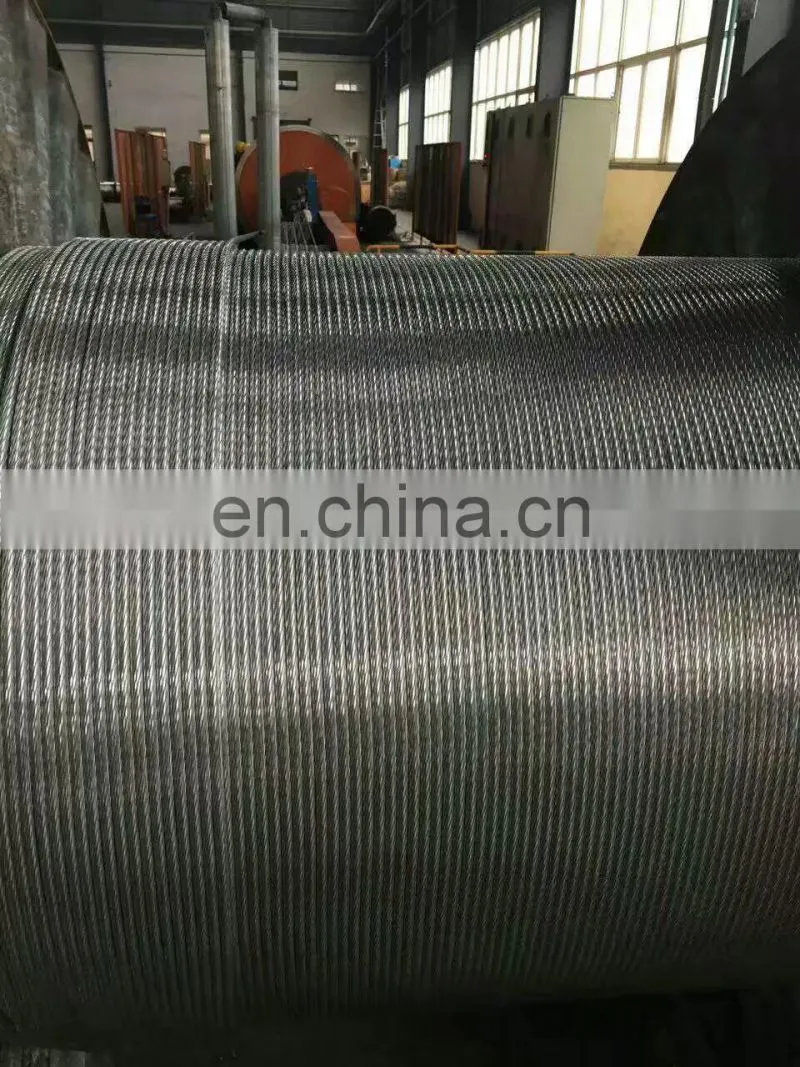

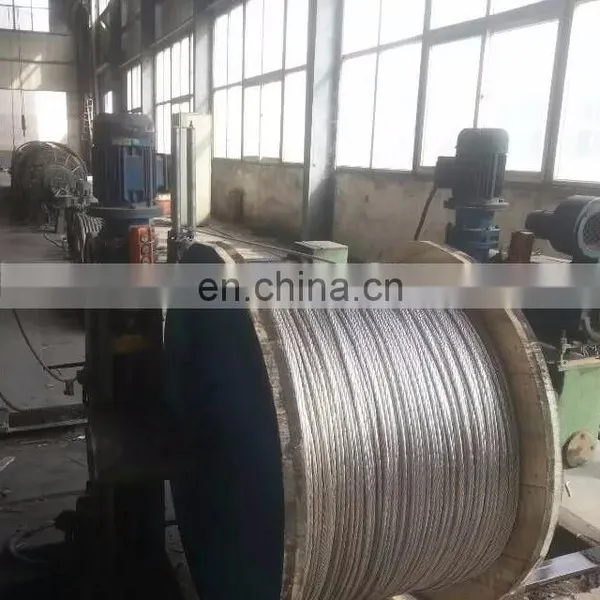

Aluminum bare aerial conductor
1. Applications
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2. Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR(Aluminum Conductor Steel Reinforced)
3)AAC(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)
3.Standard
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors can be produced fully in accordance with international standard such as IEC,BS,ASTM,DIN,JIS,NF,CSA,AS/NZS.
The data sheets below show the most common standards, British standard and IEC standard.
IEC Sizes IEC 61089
Code Number |
Stranding&wire diameter |
Approx Overall diameter |
Nominal |
Approx. |
Breaking Load |
DC Resistance at 20 |
area |
Weight |
|||||
mm |
mm |
mm 2 |
Kg/km |
KN |
Ohm/km |
|
16 |
7/1.83 |
5.49 |
18.4 |
50.4 |
5.43 |
1.7896 |
25 |
7/2.29 |
6.86 |
28.8 |
78.7 |
8.49 |
1.1453 |
40 |
7/2.89 |
8.68 |
46 |
125.9 |
13.58 |
0.7158 |
63 |
7/3.63 |
10.9 |
72.5 |
198.3 |
21.39 |
0.4545 |
100 |
19/2.78 |
13.9 |
115 |
316.3 |
33.95 |
0.2877 |
125 |
19/3.10 |
15.5 |
144 |
395.4 |
42.44 |
0.2302 |
160 |
19/3.51 |
17.6 |
184 |
506.1 |
54.32 |
0.1798 |
200 |
19/3.93 |
19.6 |
230 |
632.7 |
67.91 |
0.1439 |
250 |
19/4.39 |
22 |
288 |
790.8 |
84.88 |
0.1151 |
315 |
37/3.53 |
24.7 |
363 |
998.9 |
106.95 |
0.0916 |
400 |
37/3.98 |
27.9 |
460 |
1268.4 |
135.81 |
0.0721 |
450 |
37/4.22 |
29.6 |
518 |
1426.9 |
152.79 |
0.0641 |
500 |
37/4.45 |
31.2 |
575 |
1585.5 |
169.76 |
0.0577 |
560 |
61/3.67 |
33 |
645 |
1778.4 |
190.14 |
0.0516 |
630 |
61/3.89 |
35 |
725 |
2000.7 |
213.9 |
0.0458 |
710 |
61/4.13 |
37.2 |
817 |
2254.8 |
241.07 |
0.0407 |
800 |
61/4.38 |
39.5 |
921 |
2540.6 |
271.62 |
0.0361 |
900 |
91/3.81 |
41.8 |
1036 |
2861.1 |
305.58 |
0.0321 |
1000 |
91/4.01 |
44.1 |
1151 |
3179 |
339.53 |
0.0289 |
1120 |
91/4.25 |
46.7 |
1289 |
3560.5 |
380.27 |
0.0258 |
1250 |
91/4.49 |
49.4 |
1439 |
3973.7 |
424.41 |
0.0231 |
If you need , contact us ,we will offer you a competitive price with good quality cable and wire! sales009(at)
