Help CenterMost Competitive Price Bare AAC Cable All Aluminum Conductors
Related Products
-
China Gold Supplier Bare CONDUCTORS AAAC ASTM BS DIN IEC Standard (aluminium Alloy Stranded Conductor)NegotiableMOQ: 1 -
Hard Drawn Bare Copper Cable 29mm2NegotiableMOQ: 1
-
HOT SALE Annealed Copper Wire Stranded Bare Conductor for Middle EastNegotiableMOQ: 1
-
High Quality ACSR Cable ACSR Bare Conductor Transmission LineNegotiableMOQ: 1
-
TOP Rated Copper Wire Bare Copper Cable for OmanNegotiableMOQ: 1
Bare Conductor AAC All Aluminum Conductors
1.ABC AAAC,AAC,ACSR Bare Aluminium Cable
2.IEC61089,ASTM B232,DIN48204,BS215 PART2,DIN 48201,AS 1531 Part 2,BS EN 50182
ABC AAAC,AAC,ACSR Overhead Bare Aluminium Cable
Bare Conductors includes the following Product Range :
|
All Aluminum Conductors AAC |
ASTM B 231 |
|
All Aluminum Conductors AAC |
BS 215 Part 1 |
|
All Aluminum Conductors AAC |
BS EN 50182 |
|
All Aluminum Conductors AAC |
IEC 61089 |
|
All Aluminum Conductors AAC |
DIN 48201 |
|
Aluminum Conductor Steel Reinforce ACSR |
ASTM B 232 |
|
Aluminum Conductor Steel Reinforce ACSR |
BS 215 Part 2 |
|
Aluminum Conductor Steel Reinforce ACSR |
BS EN 50182 |
|
Aluminum Conductor Steel Reinforce ACSR |
IEC 61089 |
|
Aluminum Conductor Steel Reinforce ACSR |
DIN 48204 |
|
Bare All Aluminum Alloy Conductor (Bare AAAC) |
ASTM B 399 |
|
Bare All Aluminum Alloy Conductor (Bare AAAC) |
BS 3242 |
|
Bare All Aluminum Alloy Conductor (Bare AAAC) |
DIN 48201 |
|
Bare All Aluminum Alloy Conductor (Bare AAAC) |
AS 1531 Part 2 |
|
Low Voltage Aerial Bundle Cable (ABC) |
|

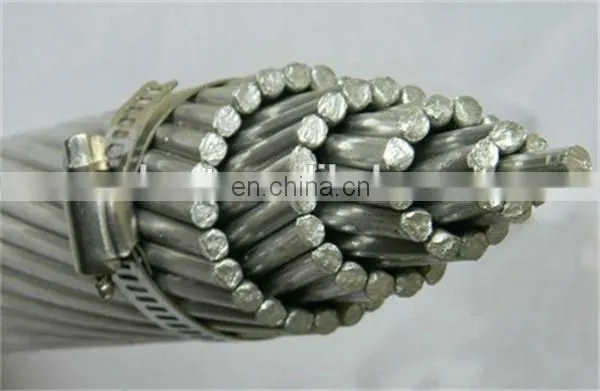

| ALL ALUMINIUM CONDUCTORS (AAC) |
Applications
Used as bare overhead conductor for distribution lines. Because of its poor strength to weight ratio, AAC has limited use in Transmission lines. AAC is extinsively used in urban areas where spans are usually short but high conductivity is required.
Specifications
'Anvil' AAC bare conductor can be supplied to meet various International Specifications like ASTM, BS, CSA, DIN, IEC. etc.
Construction
hard drawn alumium wires concentrically stranded.
| ALL ALUMINIUM ALLOY CONDUCTORS (AAAC) |
Applications
Used as bare overhead conductor for power distribution lines. Designed utilizing a high-strength aluminium alloy to achieve a high strength -to-weight ratio; affords better sag characteristics. Aluminium alloy gives AAAC higher resistance to corrosion than ACSR.
Specifications
'Anvil' AAAC bare conductor can be supplied to meet various International Specifications like ASTM, BS, CSA, DIN, IEC. etc.
Construction
Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 61 strands depending upon the size.
| ALUMINIUM CONDUCTOR ALUMINIUM ALLOY REINFORCED (ACAR) |
Applications
Used as bare overhead transmission conductor or primary or secondary distribution conductor. Where higher capacity and strength for equal weight are prime line considerations, ACAR is the solution over ACSR due to its better strength to weight ratio.
Specifications
'Anvil' bare ACAR conductors are tested to meet ASTM B-524 specification..
Construction
ACAR is constructed by concentrically stranding hard drawn EC grade aluminium wires over an aluminium alloy (6201) core. In some constructions, the aluminium alloy (6201) strands are distributed in layers throughout the EC aluminium strands.

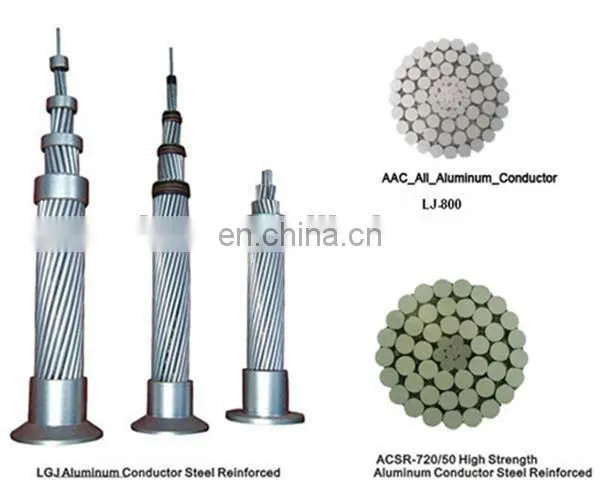

| ALUMINIUM CONDUCTOR STEEL RE-INFORCED (ACSR) |
Applications
ACSR has the established reputation for economy and dependibility in power transmission lines. Also used for primary and secondary distribution lines. Wide range of steel content from 7% to 40% can be achieved by different strandings, to meet desired strength.
Specifications
'Anvil' ACSR bare conductor can be supplied to meet various International specifications like ASTM, BS, CSA, DIN, IEC. etc.
Construction
Aluminium wires concentrically stranded over a steel core. The steel core wire is zinc coated. Various grades of coating is available. The steel core can also be 'aluminized' to produce ACSR/AZ or Aluminium clad' to produce ACSR/AW. If required additional protection against corrosion can be provided by application of steel core with grease.
|
ABC CABLE-AERIAL BUNDLE CONDUCTOR-ABC |
General:
We have the most professional manufactory of cables.
We can produce products as your requirement.
Please contact me freely; maybe I’ll give you a big surprise. ^.^
