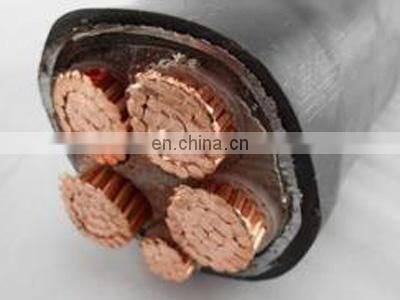

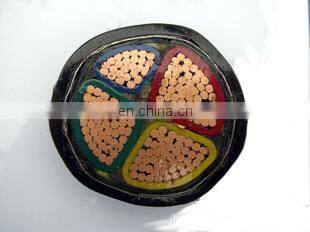

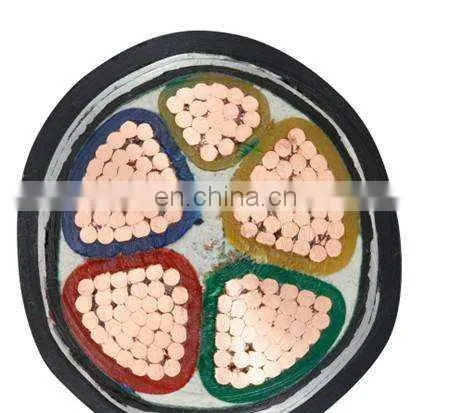

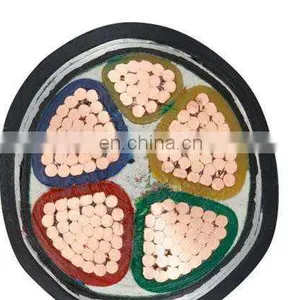

5 copper core PVC insulated VVGNG-FRLS 1KV power cable
1.UsingFeature:
(1.) The long-time working temperature of cable should not be highter than 70 oC
(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 oC
a.For single no-armored cable, it is not less than 20 times of outer diameter
b.For single-core armored cable, it is not less than 15 times of outer diameter
c.For multi-core no-armored cable, it is not less than 15 times of outer diameter
d.For multi-core armored cable, it is not less than 12 times of outer diameter
2. The description:
|
Type |
Name |
Application |
|
|
CU |
AL |
||
|
VV |
VLV |
PVC insulation&sheathed Power cable
|
For laying indoors, in tunnel and in ducts, unable to bear extarnal mechanical forces |
|
VV22 |
VLV22 |
PVC insulation&sheathed steel tape armour power cable |
Laying in the ground, afire-resistant, unable to bear extarnal mechanical forces |
3. Specification Size and Technical Data:
|
Core number |
Nominal Section(mm²) |
D.C.Resistance in 20 oC(Ω/km) |
O.D.(mm) |
Reference Weight(Kg/km) |
||
|
CU |
AL |
Cu |
Al |
|||
|
1 core |
1.5 |
24 |
- |
6.1 |
49.2 |
46.6 |
|
2.5 |
34 |
25 |
6.5 |
61.6 |
61.5 |
|
|
4 |
44 |
33 |
7.4 |
85.4 |
74.3 |
|
|
6 |
57 |
44 |
8.0 |
109 |
90.1 |
|
|
10 |
76 |
58 |
9.6 |
151 |
116 |
|
|
16 |
103 |
78 |
10.2 |
223 |
173 |
|
|
25 |
129 |
108 |
12.0 |
331 |
212 |
|
|
35 |
172 |
131 |
13.1 |
432 |
272 |
|
|
70 |
268 |
207 |
16.0 |
780 |
472 |
|
|
150 |
435 |
335 |
22.1 |
1609 |
821 |
|
|
185 |
493 |
380 |
24.2 |
1966 |
1028 |
|
|
240 |
585 |
451 |
26.9 |
2513 |
1265 |
|
|
2 core |
1.5 |
802 |
624 |
33.5 |
4108 |
|
|
2.5 |
20 |
|
10.2 |
116 |
117 |
|
|
4 |
27 |
21 |
11.0 |
148 |
159 |
|
|
6 |
36 |
27 |
12.8 |
207 |
194 |
|
|
10 |
46 |
35 |
13.8 |
262 |
228 |
|
|
16 |
62 |
48 |
15.4 |
351 |
301 |
|
|
25 |
83 |
63 |
18.5 |
532 |
456 |
|
|
50 |
131 |
101 |
24.3 |
1017 |
573 |
|
|
70 |
164 |
127 |
22.4 |
1201 |
735 |
|
|
95 |
208 |
160 |
25.2 |
1615 |
956 |
|
Please contact me freely; maybe I’ll give you a big surprise. ^.^
