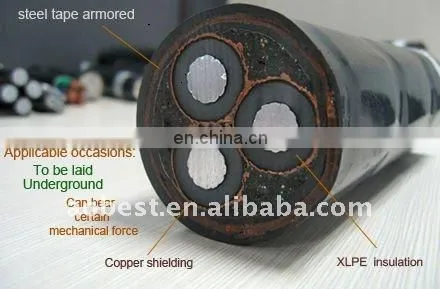

Best Price 3core 50mm2 11KV XLPE Steel Armored power Cable for Vietnam market

Name: Best Price 3core 50mm2 11KV XLPE Steel Armored power Cable for Vietnam market
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

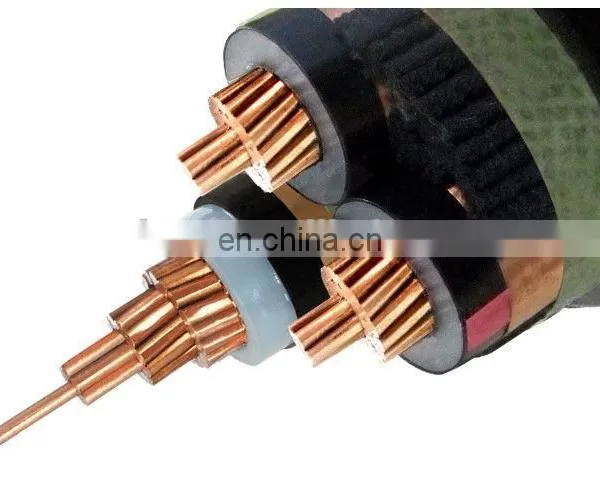

Best Price 3*50mm2 11KV XLPE Steel Armored Cable for Vietnam market

1.Product advantage

A. Excellent electric properties and chemical resistance

B. Simple construction, easy to operate, small overall diameter, light weight and installation irrespective of drop in elevation.

C. Rated voltage U0/U 0.6/1KV. 1.8/3kV 3.6/6kV 6/6kV 6/10kV 8.7/10kV 8.7/15kV 12/20kV 21/35kV 26/35kV

2.Service characteristics

The long-tem permissible operating temperature of the conducter shall be 90°c

The conductor temperature in short circuit; lower than 250°c,lasting time:lower than 5S

Min.allowable bending radius

20times earble overall diameter, for single core cables

15times cable overall diameter .for multi core cables

The ambient temperature for cable installation shall be not less than 0°c

The cable may be installed irrespective the drop in elevati

3.Cable type

TYPE		Description	Application
Cu core	Al Core	Description	Application
YJV	YJLV	Cu or Al conductor XLPE insulated PVC sheathed power cable	Installed in indoor/outdoor tunnel. cable trench or buried in loose soil. Single core cable is not allowed to be installed in magnetic conduit
YJY	YJLY	Cu or Al conductor XLPE insulated PE sheathed power cable

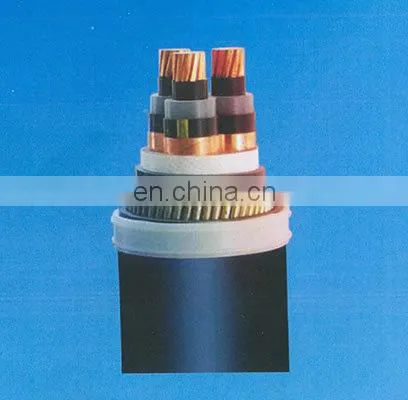

YJV22	YJLV22	Cu or Al conductor sheathed power cable XLPE insulated steel tape armoured PVC sheathed power cable	Installed outdoors or buried. the cable may endure external mechanical force
YJV23	YJLV23	Cu or Al conductor XLPE insulated steel tape armoured PVC sheathed power cable	/

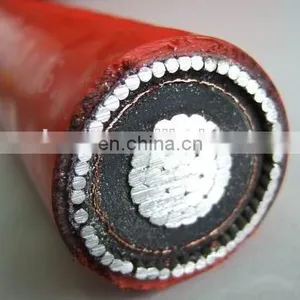

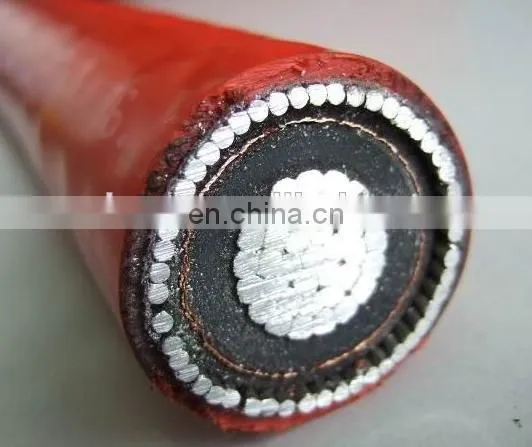

YJV32	YJLV32	Cu or Al conductor XLPE insulated fine steel wire armoured PVC sheathed power cable	Installed in shaft ,water or where with high drop in elevation .the cable may endure external mechanical force and certain pulling force
YJV33	YJLV33	Cu or Al conductor XLPE insulated armoured PE sheathed power cable	/
YJV42	YJLV42	Cu or Al conductor XLPE insulated armoured PVC sheathed power cable	Installed in shaft, undersea or where with high drop in elevation. the cable my endure high pressure and pulling force
YJV43	YJLV43	Cu or Al conductor XLPE insulated thick steel wire armoured PE sheathed power cable	/

4.Type and size

Type		Nominal cross-sectional area
Type		Single-core	2-core	3-core	4-core	5-core
YJV ZR-YJV	YJLV ZR-YJLV	1.5-800	1.5-300	1.5-300	1.5-300	1.5-300
YJV22 ZR-YJV22	YJLV22 ZR-YJLV22	10-800	4-300	4-300	4-300	4-300
YJV32 ZR-YJV32	YJLV32 ZR-YJLV32	10-800	4-300	4-300	4-300	4-300

Please contact me freely; maybe I’ll give you a big surprise. ^.^
