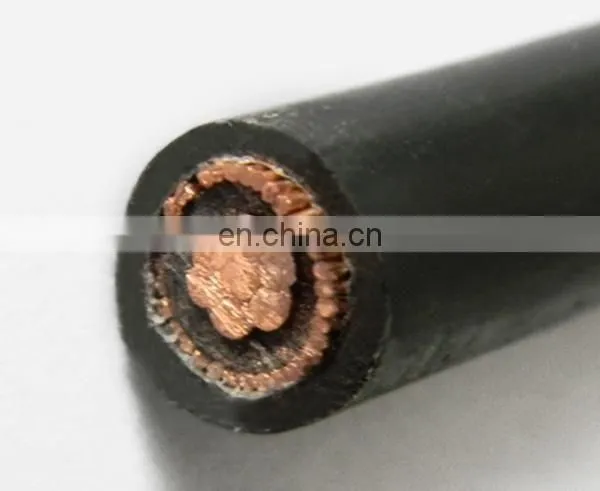

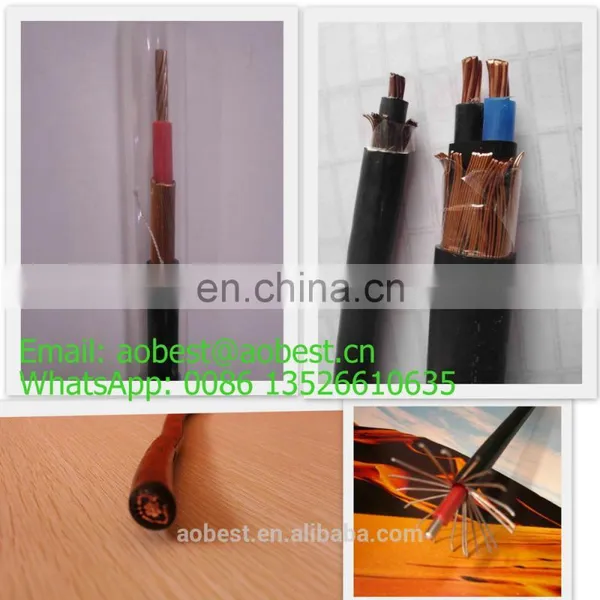

IEC Standard 2*10mm2 0.6/lKV Voltage YJV type XLPE insulated power cable

Steel Wire armoured cables can be laid indoors,In channels,in cable conduit and direct burial.it can endure mechanical force but can not bear great pull.General Characteristics:The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A.C.50HZ and voltage rating of up to or including 6KV.

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

The flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies (peroxide, silane and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogenated and three classes of A,B,C.

Packing in wooden drum or steel wooden drum or as your request.

Product Description:

1. Conductors: copper or aluminum.

2. Both armored and non-armored type power cables are available.

3. Voltage rating: 6/10kV 8.7/15kV 26/35kV.

4. PVC or PE sheathed.

5. Number of cable cores: one core(Single core),two cores(Double cores),three cores,

Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),

Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).

6. Standards: IEC 60502. IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

Application conditions

1. The long-time permissible operation temperature of conductor shall not be higher than 90^oC.

2. Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 250 ^oC.

3. The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 ^oC.

If so, the cable should to be preheated.

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Details of Different types below:
