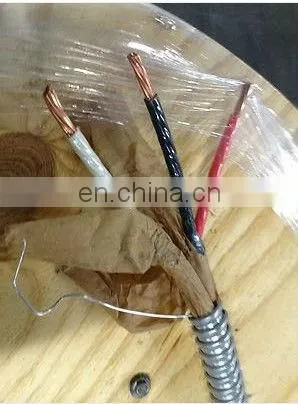

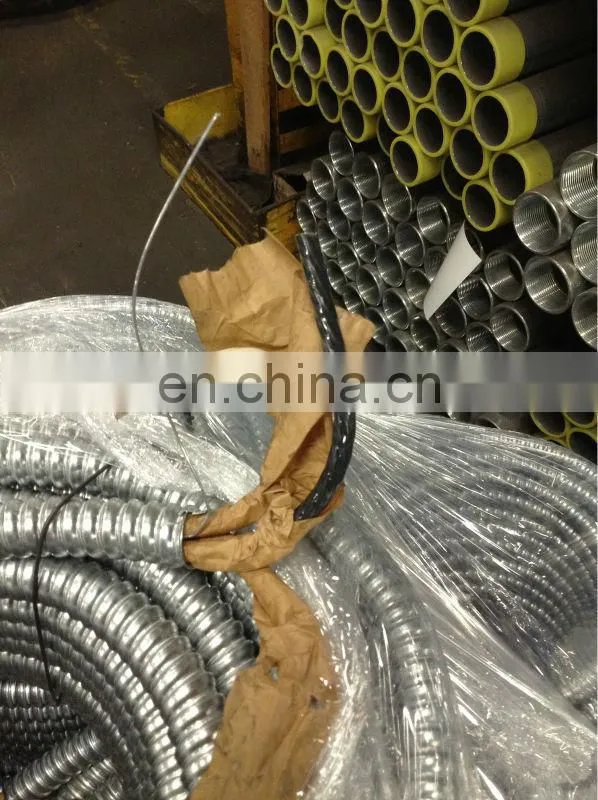

12/2 12/3 14/2 14/3 AC cable Aluminum armor power cable
AC cable -- technically known as armored cable or "BX" has a flexible aluminum or steel sheath
over the conductors and is fairly resistant to damage.
- Used as feeder and service power distributor
- Used in: commercial, industrial, institutional, and multi-residential buildings
- Ideal for use in power, lighting, control and signal circuits
- Fished or embedded in plaster
- Copper conductors with interlocking aluminum armor
- Aluminum bond wire placed inside the armor
| Type | BX cable |
| Number of Conductors | 2.0 |
| Conductor Material | Copper |
| Number of Strands | 1.0 |
| Armor Material | Aluminum |
| Armor Thickness in Mils | 25.0 |
| Cable Length (Feet) | 250.0 |
| Cable Gauge | 12 AWG |
| Ground Wire | Bare aluminum bond wire |
| Max Amps | 20.0 |
| Volt Rating | 600.0 |
| UL Safety Listing | Yes |
| CSA Safety Listing | No |
| ETL Safety Listing | No |
Type |
Name |
Usage |
VV |
PVC insulated PVC sheathed power cable |
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force |
VLV | ||
VY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VLY | ||
|
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VLV22 | ||
VV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VLV23 | ||
VV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force |
VLV32 | ||
VV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground .Cable can under take mechanism outside force |
VLV33 | ||
VV42 |
PVC insulated thick steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground,mining well. Cable can under take mechanism outside force |
VLV42 | ||
VV43 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
We also can manufacture many other specifications, if you have interest, welcome your enquiry!
