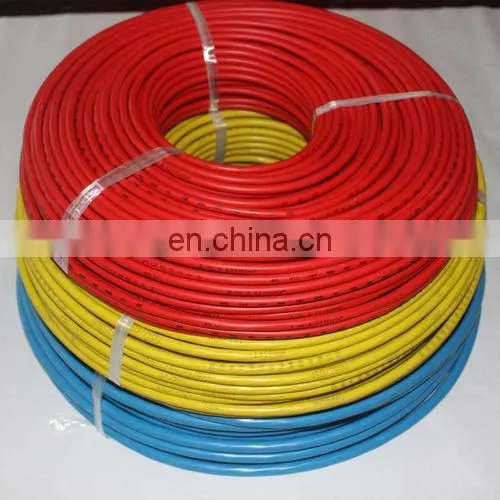

4mm 6mm 10mm Single Core PVC Insulated Tri-Rated Cable for Oversea Market
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale 3 CORES XLPE 11KV POWER CABLENegotiableMOQ: 1 -
HV High Voltage Underground Cable Armored Cable 1KV-35KVNegotiableMOQ: 1
-
Henan Manufacturer YJV YJLV Power Cable 300mm2 Power CableNegotiableMOQ: 1
-
For Saudi Arabia Best Price STA Armoured CABLENegotiableMOQ: 1
-
Aluminum Core Steel Tape Armoured Cable for South Africa---0.6/1KV 3.6/6KV 12/20KV 18/35KV STA CablesNegotiableMOQ: 1
Single core PVC insulated Tri-Rated Cable
| AWG | Size |
Nominal Overall Diameter MM |
Part Reference |
| 22 | 0.50mm2 | 2.6 | TRI / 0.50 / colour. |
| 20 | 0.75mm2 | 2.8 | TRI / 0.75 / |
| 18 | 1.00mm2 | 3 | TRI / 1.00 / |
| 16 | 1.50mm2 | 3.3 | TRI / 1.50 / |
| 14 | 2.50mm2 | 3.7 | TRI / 2.50 / |
| 12 | 4.00mm2 | 4.4 | TRI / 4.00 / |
| 10 | 6.00mm2 | 5.1 | TRI / 6.00 / |
| 8 | 10.00mm2 | 6.9 | TRI / 10.00/ |
| 6 | 16.00mm2 | 8.6 | TRI / 16.00/ |
| 4 | 25.00mm2 | 10.5 | TRI / 25.00 / |
| 2 | 35.00mm2 | 11.9 | TRI / 35.00 / |
| 1 | 50.00mm2 | 14.4 | TRI / 50.00 / |
| 2/0 | 70.00mm2 | 16.7 | TRI / 70.00 / |
| 3/0 | 95.00mm2 | 19 | TRI / 95.00 / |
| - | 120.00mm2 | 20.5 | TRI / 120.00 / |
| - | 150.00mm2 | 23.14 | TRI / 150.00 / |
| - | 185.00mm2 | 25.4 | TRI / 185.00 / |
| - | 240.00mm2 | 28.66 | TRI / 240.00 / |
| - | 300.00mm2 | 31.5 | TRI / 300.00 / |
Ordering example : TRI / 6.0 / G/Y = Tri-rated cable 6.0mm2 diameter green/yellow
Sizes 10mm2 and above can be supplied cut to length.
The following table shows colours which are kept in stock for the different sizes of cable:
| Size mm | Size AWG | Max Amp | Yell | White | Violet | Red | Pink | Orange | L/Blue | Grey | G | Green | D/Blue | Brown | Blue | Black |
| Y | ||||||||||||||||
| 0.50 | 22 | 11 | ||||||||||||||
| 0.75 | 20 | 14 | ||||||||||||||
| 1.00 | 18 | 17 | ||||||||||||||
| 1.50 | 16 | 21 | ||||||||||||||
| 2.50 | 14 | 30 | ||||||||||||||
| 4.00 | 12 | 41 | ||||||||||||||
| 6.00 | 10 | 53 | ||||||||||||||
| 10.00 | 8 | 75 | ||||||||||||||
| 16.00 | 6 | 100 | ||||||||||||||
| 25.00 | 4 | 136 | ||||||||||||||
| 35.00 | 2 | 167 |
