Home > Products > Medium&High Voltage Cable > 18/20/30kv 3core 50MM2 CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power Cable

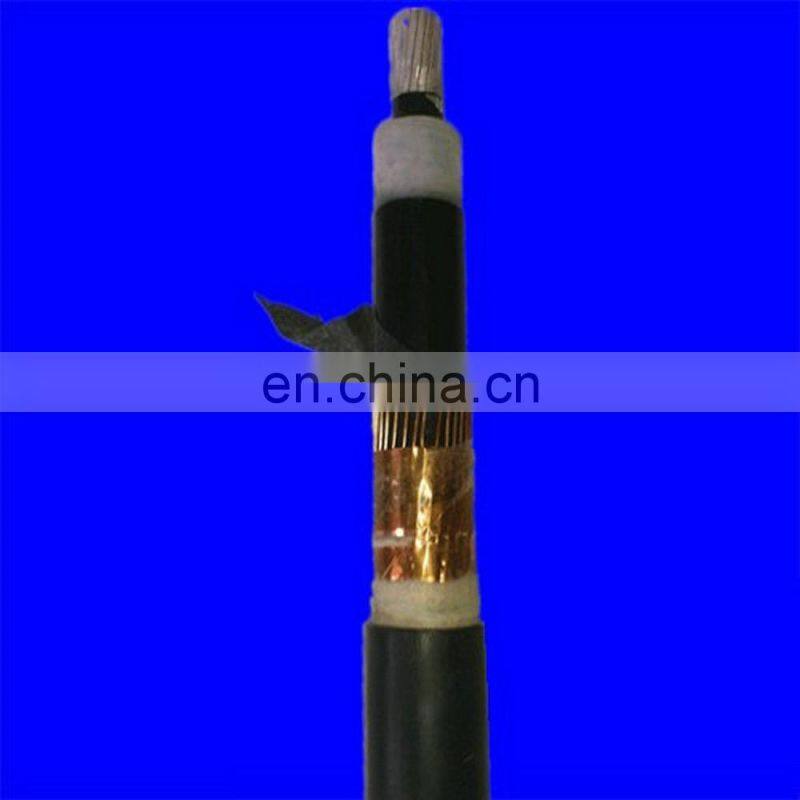

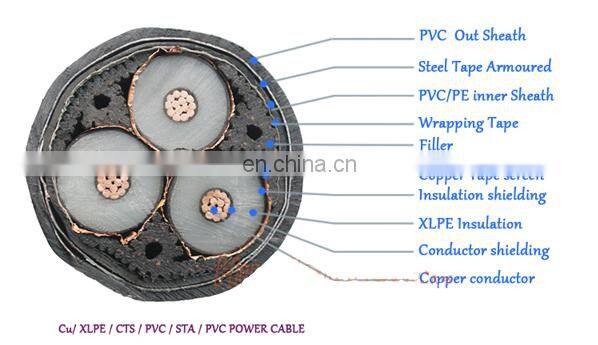

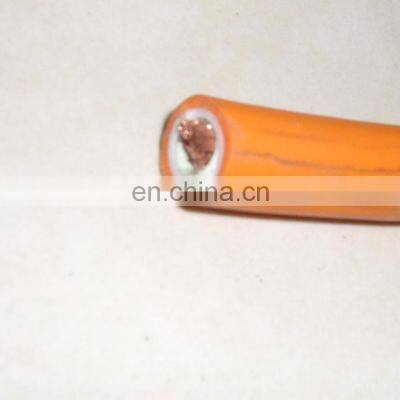

18/20/30kv 3core 50MM2 CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
18/20/30kv 3core 50MM XLPE YJV32 YJLV32 YJV33 YJLV33 Power Cable
-
High Voltage 3core 240MM XLPE YJV32 YJLV32 YJV33 YJLV33 Power Cable
-
18/20/30kv 1core CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power Cable
-
High Voltage 150mm2 3 Core CU /AL XLPE Insulated YJV YJLV YJY YJLY Power Cable
-
18/20/30kv 3core CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power Cable
-
High Voltage Copper Conductor 6KV Power Cable 70mm2 LSZH Sheath Power Cable
Product Description
Company Information
About Company:https://aobest.en.china.cn/?spm=a2700.8304367.0.0.cjXsPq
Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:
1: Electric Wire 450/750V
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV
10:Glass insulator LXAP-70/120 LXAP-160/240
11:Glass insulator LXDP-70/100
Product Description
| Cross-sectional area mm2 | conductor | weight kg/km | ||||
| number | diameter mm | YJV22 | YJLV22 | YJV23 | YJLV23 | |
| 50 | 9 | 8.30 | 2128 | 1812 | 2020 | 1704 |
| 70 | 19 | 10.00 | 2421 | 1979 | 2307 | 1865 |
| 95 | 19 | 11.6 | 2770 | 2170 | 2645 | 2046 |
| 120 | 19 | 13.00 | 3107 | 2349 | 2972 | 2214 |
| 150 | 19 | 14.60 | 3507 | 2560 | 3366 | 2630 |
| 185 | 37 | 16.2 | 3951 | 2783 | 3978 | 2934 |
| 240 | 36 | 18.6 | 4611 | 3096 | 4449 | 3265 |
| 300 | 36 | 20.6 | 5336 | 3442 | 5159 | 3762 |
| 400 | 60 | 23.8 | 6484 | 3959 | 6288 | 4347 |
| 500 | 60 | 26.60 | 7693 | 4567 | 7473 | 4963 |
| 630 | 60 | 30.24 | 9145 | 5207 | 8902 | 5748 |
| 800 | 89 | 34.00 | 11030 | 6028 | 10750 | |
Packaging & Shipping
1:standard export wooden drum/steel wooden drum
2: upon your request
Certifications
