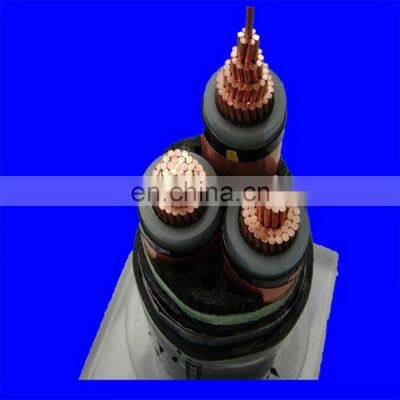

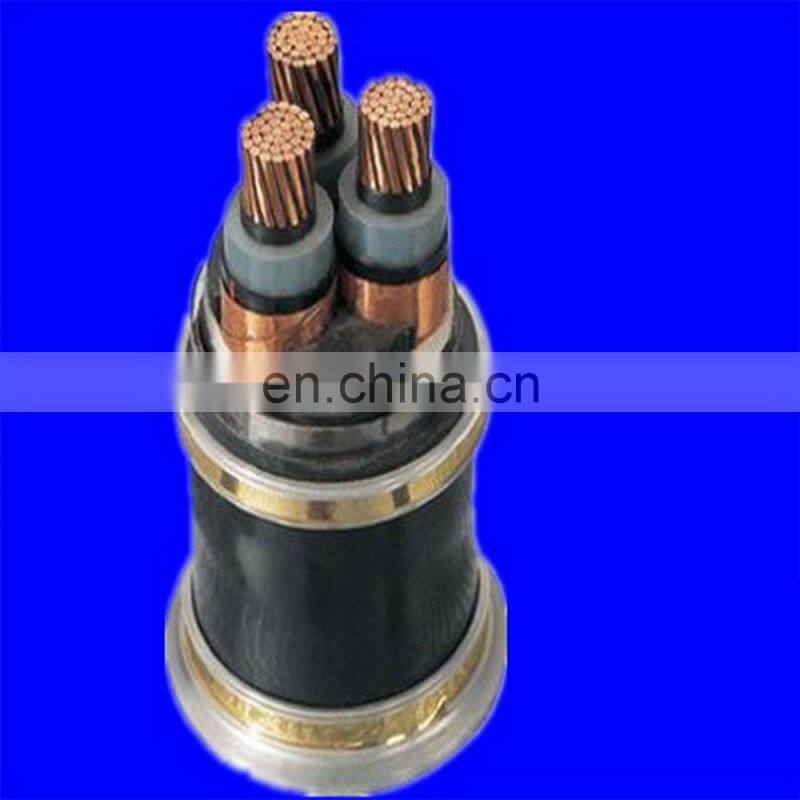

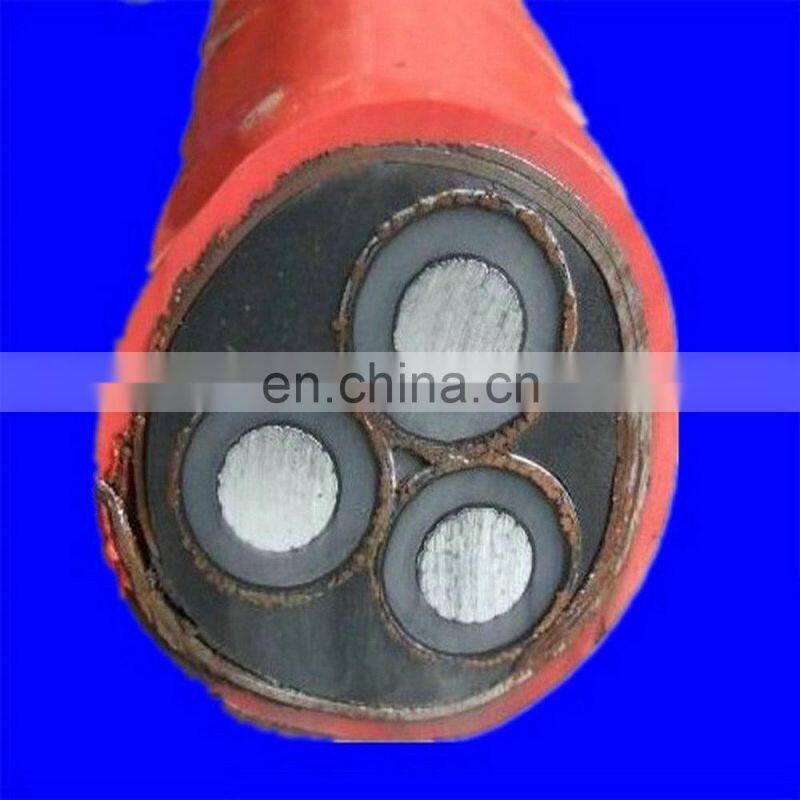

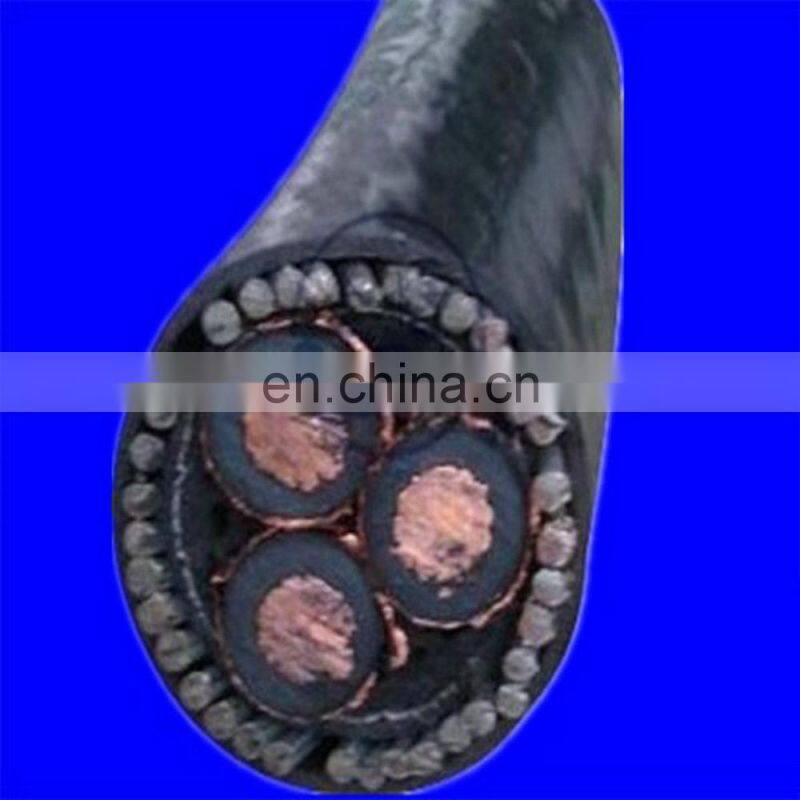

12/20kv 3 Core CU /AL Conductor XLPE Insulated YJV32 YJLV32 YJV33 YJLV33 Power Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18/20/30kv 3core 50MM2 CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power CableNegotiableMOQ: 1 -
18/20/30kv 3core 50MM XLPE YJV32 YJLV32 YJV33 YJLV33 Power CableNegotiableMOQ: 1
-
High Voltage 3core 240MM XLPE YJV32 YJLV32 YJV33 YJLV33 Power CableNegotiableMOQ: 1
-
18/20/30kv 1core CU /AL XLPE YJV22 YJLV22 YJV23 YJLV23 Power CableNegotiableMOQ: 1
-
High Voltage 150mm2 3 Core CU /AL XLPE Insulated YJV YJLV YJY YJLY Power CableNegotiableMOQ: 1
Company Information
About Company:https://aobest.en.china.cn/?spm=a2700.8304367.0.0.cjXsPq
Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:
1: Electric Wire 450/750V
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV
2: AAC, ACSR, AAAC, Copper Clad Aluminum,
3: Galvanized Steel Wire strand, Guy wire
4: PVC insulated Cable. 600/1000V
5: XLPE insulated Cable 600/1000V
6: Over head cable, ABC cable (Duplex, Triplex, Quadruplex cable)
7: Rubber cables
8: Control cable, instrument cable
9: High voltage cable, 11KV, 20KV, 33KV, up to 100KV
10:Glass insulator LXAP-70/120 LXAP-160/240
11:Glass insulator LXDP-70/100
Product Description
| Cross-sectional area mm2 | conductor | weight kg/km | ||||
| number | diameter mm | YJV32 | YJLV32 | YJV33 | YJLV33 | |
| 35 | 7 | 7.20 | 5915 | 5248 | 5671 | 5003 |
| 50 | 9 | 8.30 | 6652 | 5698 | 6388 | 5434 |
| 70 | 19 | 10.00 | 7689 | 6354 | 7388 | 6053 |
| 95 | 19 | 11.6 | 8820 | 7008 | 8492 | 6680 |
| 120 | 19 | 13.00 | 10784 | 8495 | 10423 | 8134 |
| 150 | 19 | 14.60 | 12094 | 9232 | 11703 | 8842 |
| 185 | 37 | 16.2 | 13652 | 10123 | 13217 | 9689 |
| 240 | 36 | 18.6 | 15916 | 11338 | 15439 | 10861 |
| 300 | 36 | 20.6 | 18211 | 12489 | 17682 | 11960 |
| 400 | 60 | 23.8 | 22146 | 14517 | 21544 | 13914 |
Packaging & Shipping
1:standard export wooden drum/steel wooden drum
2: upon your request
