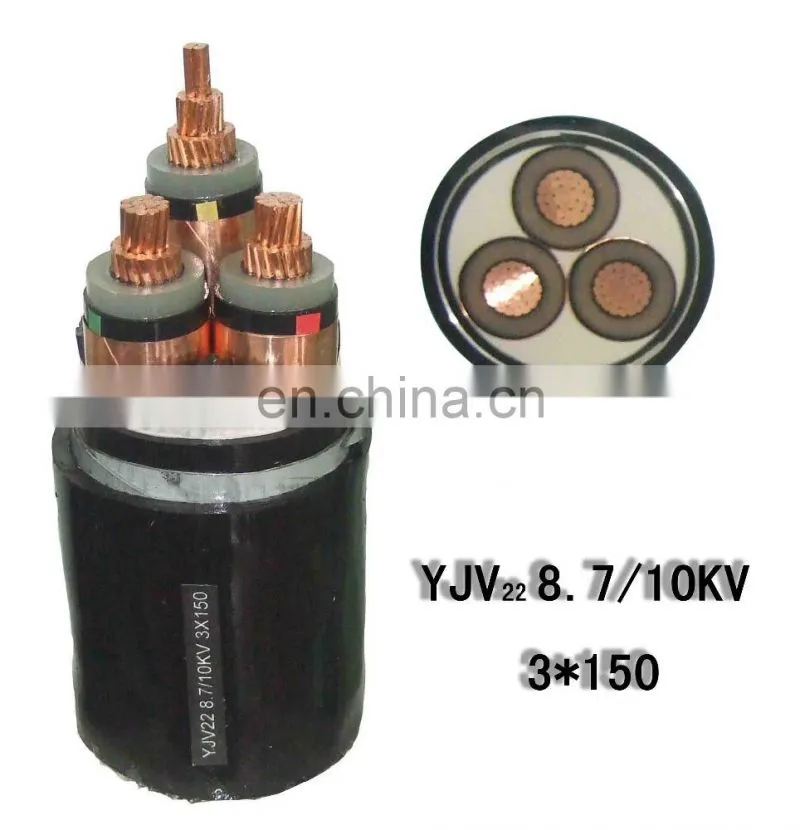

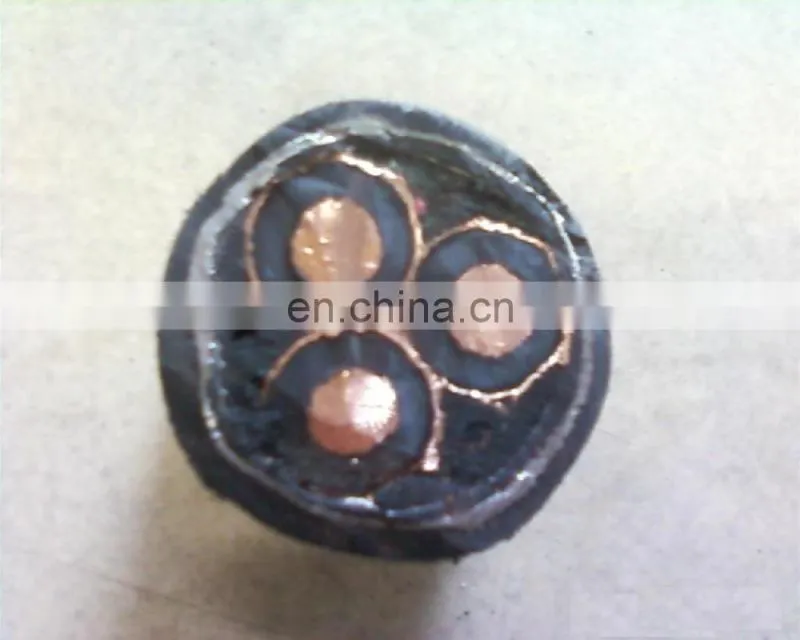

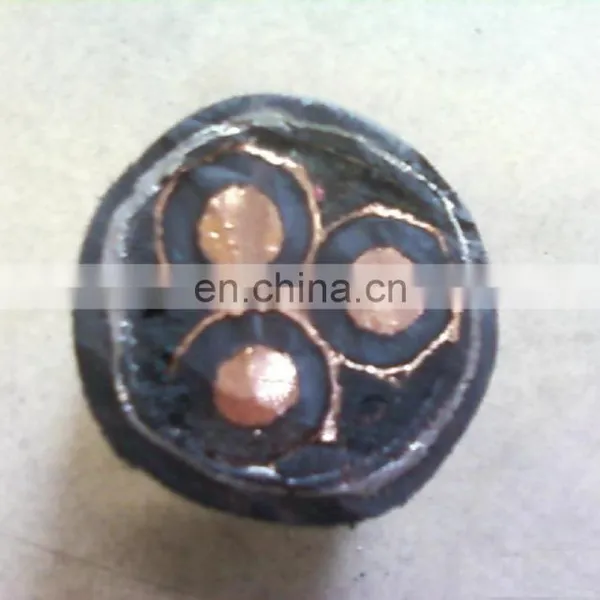

Help Center20kv PVC Insulated 3 Core Copper Conductor Power Cable
Related Products
-
20KV YJSV XLPE Insulated Copper Core Electric Power CableNegotiableMOQ: 1 -
12/20kv Single Core CU /AL Conductor XLPE Insulated Armoured YJV YJLV Power CableNegotiableMOQ: 1
-
12/20kv Single Core CU /AL Conductor XLPE Insulated Armoured YJSV YJLSV Power CableNegotiableMOQ: 1
-
12/20kv Single Core CU /AL Conductor XLPE Insulated d YJSV YJLSV Power CableNegotiableMOQ: 1
-
12/20kv 3 Core CU /AL XLPE Insulated YJV32 YJLV32 YJV33 YJLV33 Power CableNegotiableMOQ: 1
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cable
PVC insulatedd power cable VV VV22 VV32
Using Feature:
(1.) The long-time working temperature of cable should not be highter than 70 °c
(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 °c.
(3) While installation the ambient temperature should not be lower than 0 °c, bending radius of the cable;
For single no-armored cable, it is not less than 20 times of outer diameter
For single-core armored cable, it is not less than 15 times of outer diameter
For multi-core no-armored cable, it is not less than 15 times of outer diameter
For multi-core armored cable, it is not less than 12 times of outer diameter.
3. Specification Size and Technical Data:
|
Core number |
Nominal Section(mm²) |
D.C.Resistance in 20 °c(Ω/km) |
O.D.(mm) |
Reference Weight(Kg/km) |
||
|
CU |
AL |
Cu |
Al |
|||
|
3 core |
1.5 |
17 |
— |
10.7 |
141 |
— |
|
2.5 |
23 |
17 |
11.5 |
180 |
134 |
|
|
4 |
30 |
23 |
13.6 |
255 |
183 |
|
|
6 |
39 |
30 |
14.9 |
341 |
228 |
|
|
10 |
54 |
41 |
16.3 |
470 |
285 |
|
|
16 |
71 |
55 |
19.6 |
697 |
363 |
|
|
25 |
99 |
76 |
23.4 |
1049 |
568 |
|
|
35 |
120 |
92 |
25.8 |
1370 |
702 |
|
|
70 |
186 |
143 |
28.7 |
2350 |
1031 |
|
|
95 |
227 |
175 |
32.8 |
3144 |
1355 |
|
|
120 |
262 |
203 |
34.9 |
3882 |
1624 |
|
|
185 |
352 |
272 |
43.9 |
5945 |
2464 |
|
|
240 |
420 |
324 |
49.2 |
7647 |
3132 |
|
|
3+1 core |
3×4+1×2.5 |
31 |
23 |
14.2 |
289 |
202 |
|
3×6+1×4 |
40 |
31 |
15.8 |
386 |
262 |
|
|
3×10+1×6 |
54 |
42 |
17.3 |
548 |
329 |
|
|
3×16+1×10 |
72 |
56 |
20.5 |
793 |
408 |
|
|
3×25+1×16 |
98 |
75 |
24.6 |
1196 |
608 |
|
|
3×35+1×16 |
122 |
94 |
26.9 |
1518 |
744 |
|
|
3×50+1×25 |
153 |
118 |
27.9 |
2032 |
931 |
|
|
3×95+1×50 |
231 |
178 |
35.1 |
3683 |
1583 |
|
|
3×120+1×70 |
267 |
207 |
37.9 |
4617 |
1924 |
|
|
3×150+1×70 |
315 |
242 |
41.7 |
5563 |
2306 |
|
|
3×185+1×95 |
362 |
279 |
46.4 |
6929 |
2854 |
|
packing:export standard by wooded drum or as your requ
shipping:Shipped in 10 days after payment
