Help CenterGolden Supplier Copper Core Instrument Control Cable
Related Products
-
HOT SALE! Fire Resistance Instrument CableNegotiableMOQ: 1 -
CHINA OAM/SWA Instrument CableNegotiableMOQ: 1
-
Best Price Copper Conductor Pairs Twisted Plastic Control Cable and Instrument CableNegotiableMOQ: 1
-
Best Price Copper Conductor Pairs Twisted Screened Flexible Instrument CableNegotiableMOQ: 1
-
Best Price Copper Conductor Pairs Twisted Charger Cable for Ps3 Controller and Instrument CableNegotiableMOQ: 1
-standard:GB,IEC,AS ,DIN
-Approval:CQC,ABS,GL ,QMS
-10ys experience
Application:
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 70°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
PVC Insulated Control Cable Parameter:
Type |
Name |
Section Area(mm2) |
No. of Core |
KVV |
Copper Conductor, PVC Insulated and Sheathed control cable | 0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP |
Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||

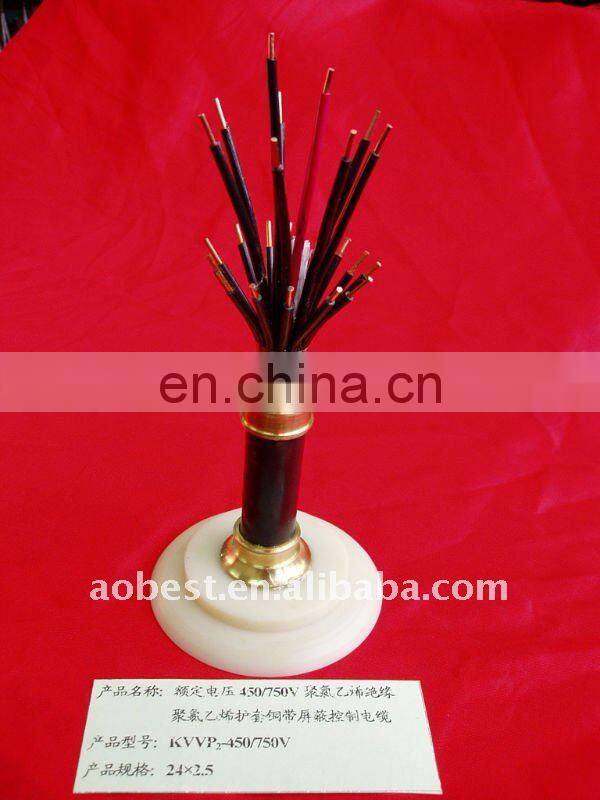

KVVP2 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP2-22 |
Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVV22 |
Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVR |
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVRP |
Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
About Us:
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires.
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, aluminum sheets, etc.
The international standard we can follow: ASTM, IEC, BS, GB, DIN and AS/NZS standards and other standards.
We can provide OEC service.
Since our establishment, we have insisted on the tenet of "scientific management" and tried our best to improve product quality. We control every chain especially the process of production strictly, ensuring the unqualified raw materials and semi-finished products not enter into the next operation. We guarantee that all the finished products meet the requirements of our clients.
Our sales networks cover the whole world. Our products sell well in Australia, the Philippines, Vietnam, Thailand, Myanmar, Kenya, South Africa, Nigeria, Tanzania, the USA, Singapore, the UK, Italy, Bolivia, Chile and European countries. Our company has established long-term cooperation and friendship with clients worldwide.
