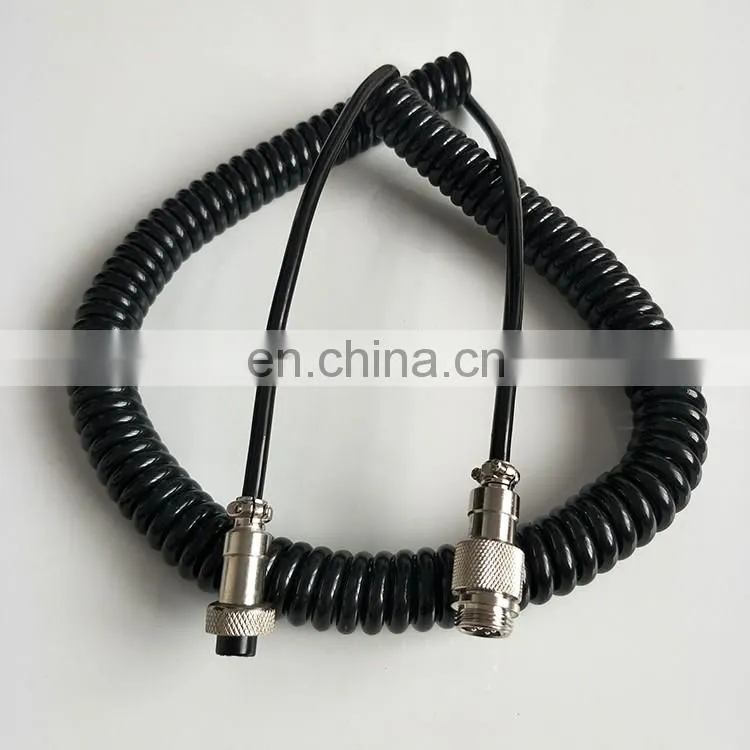

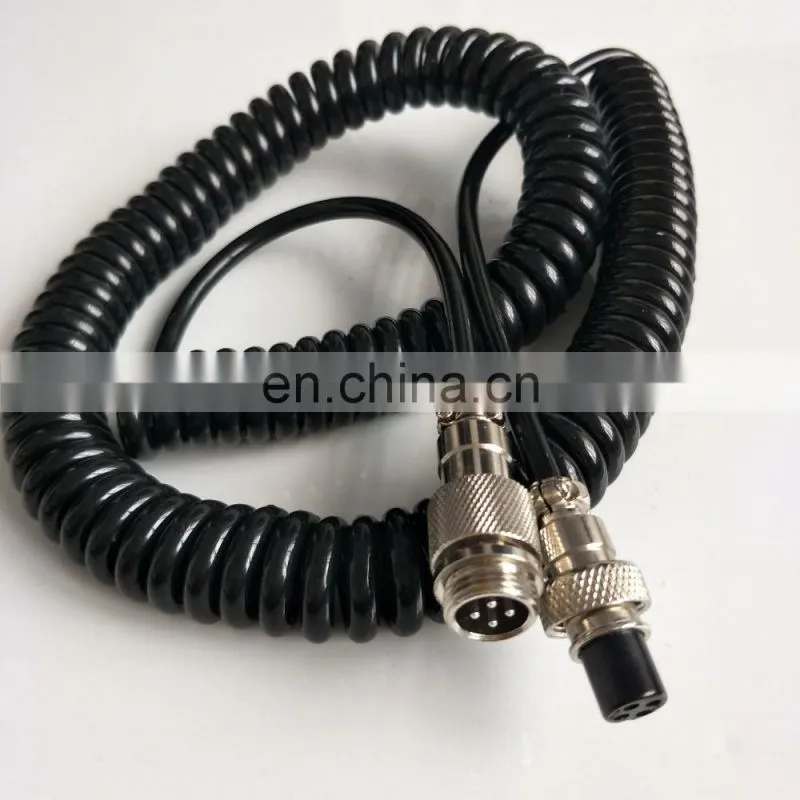

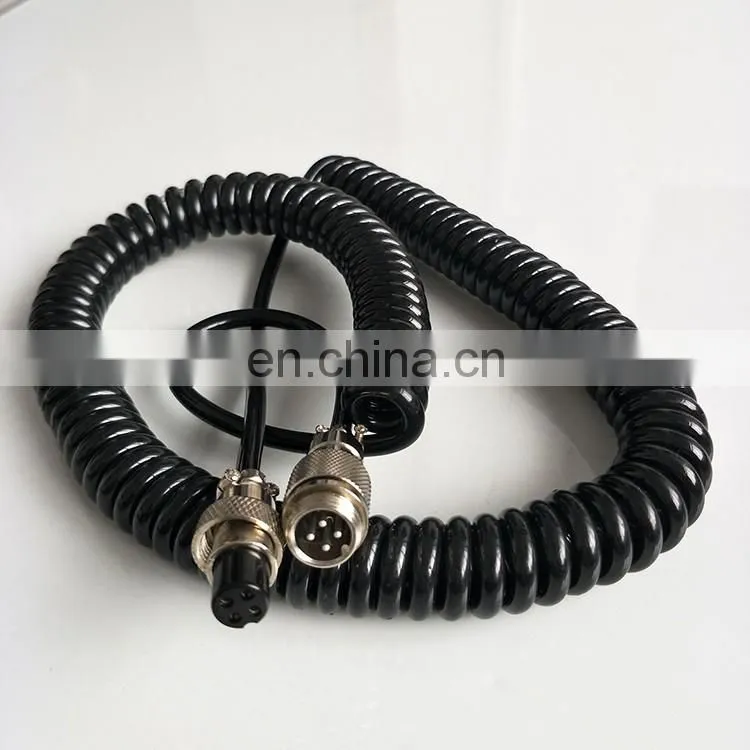

Help CenterHigh Elasticity Cnc Spiral Cable Coiled Cable Spiral Cable With 4 Pin Connector
Related Products
-
High Elasticity Cnc Spiral Cable Trailer Spiral Cable Spring CableNegotiableMOQ: 1 -
High Elasticity Trailer Spiral Cable Cnc Spiral Cable Coiled CableNegotiableMOQ: 1
-
Trailer Spiral Cable Cnc Spiral Cable High Elasticity Coiled CableNegotiableMOQ: 1
-
Trailer Spiral Cable 6 Cores Spiral Extension Cable Cnc Coiled CableNegotiableMOQ: 1
-
Curly Coiled Cable Spiral Extension Cable 6 Cores Cnc Spiral CableNegotiableMOQ: 1
Product Application
Spiral cables are mainly used for the most rigorous situations such as intensive use robots, electric doors, heavy duty machine, lifting ramps and drilling machines. They are suitable for both indoor and outdoor use and will provide long service life in very high duty applications. PUR outer sheath has resistance to abrasion, mineral oil, cooling liquid and gas. Additionally, PUR can be used all day long and anti microorganism and hydrolysis.
Main Features
Construction
Conductor: Fine stranded bare/tinned copper
Insulation: PVC/PE/TPE/TPU
Core color: TBD acc. to DIN 47100 standard. Wire gauge>0.5mm2, black insulation and white serial number with protective conductor.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
Rated voltage: 300V ( <0.34mm2), 300/500V (≥0.5mm2)
Testing volatge: 1200V ( <0.34mm2), 3000V (≥0.5mm2)
Temperature range: -5℃ till +70℃
Operating temperature: -5℃ till +70℃
Bending radius: Fixed installation 5xOD, In motion 7xOD
Additional information
Closed spiral length: max 4000mm
Extended spiral length: up to 4x closed length
Cable tails: normally ends 200mm / 200mm. Straight ends available up to 25m
Spiral OD: varies from 40mm to 150mm
Spiral ID: varies from 20mm to 130mm
Above information is norminal and it can be adjusted as per your requirements.

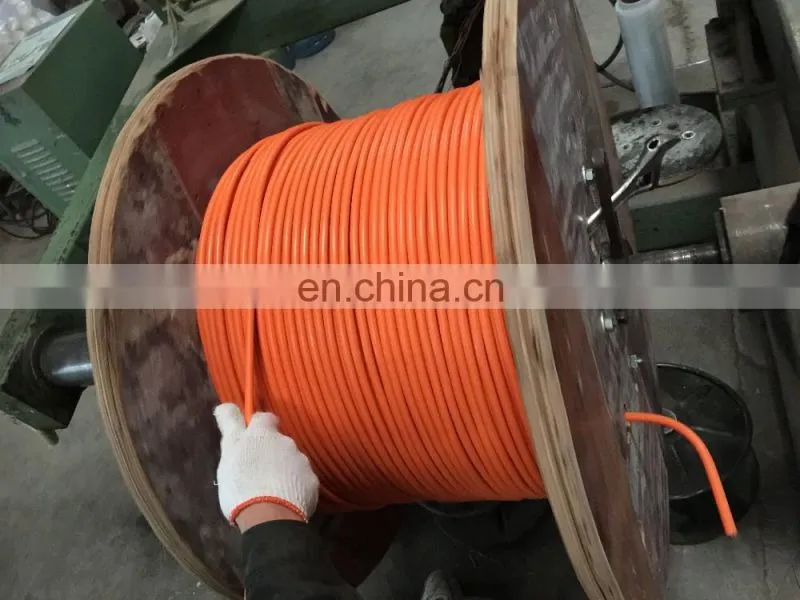

Wooden Drum

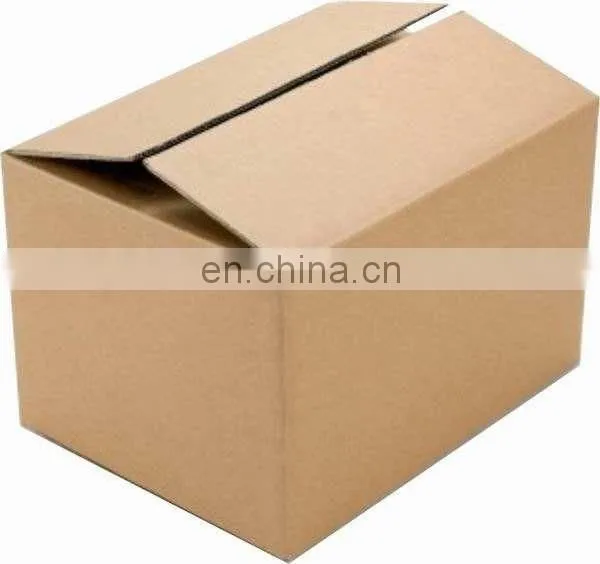

Carton Box
Plastic waterproof film
