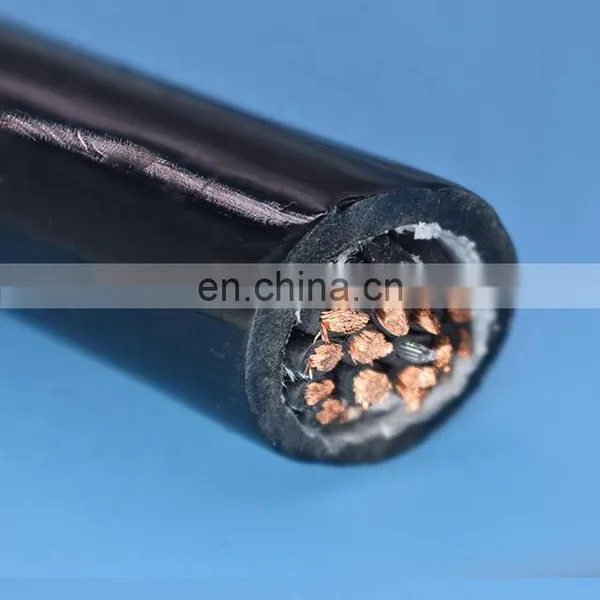

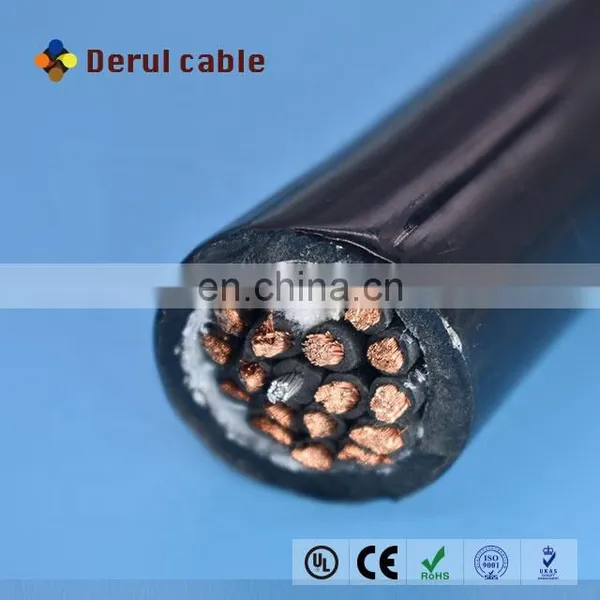

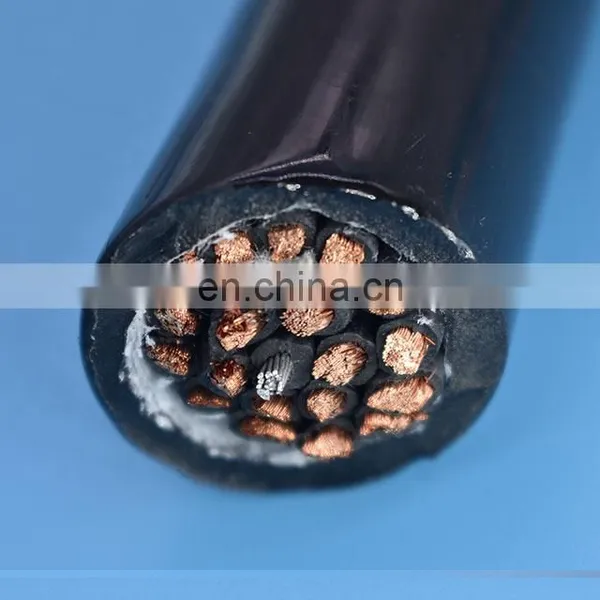

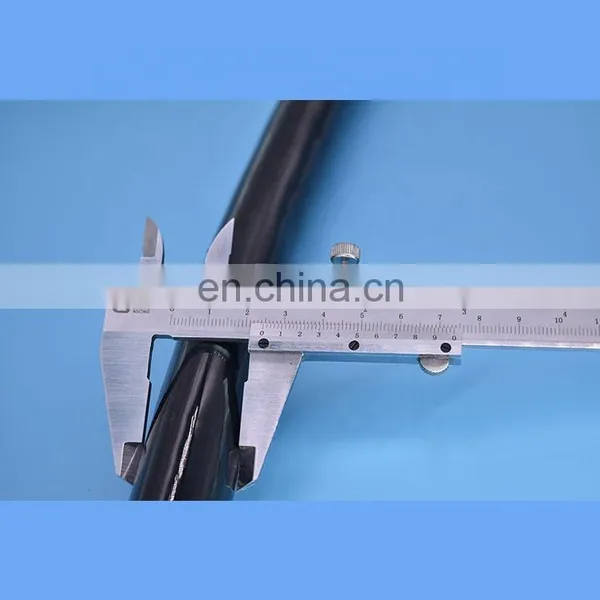

Help Center18 Cores Flexible Rubber Feston Cable High Tensile Strength Spreader Cable Drum Reeling Cable With Steel Wire
Related Products
-
2pnct Cable Spreader Cable Power Cable ManufacturersNegotiableMOQ: 1 -
Flexible Rubber Power Protolon Cable for Drum Reel ApplicationNegotiableMOQ: 1
-
Drum Reeling Cable for Electrical Cable Used for Large Tower Cranes and Open-air Elevators and Vertical Lifting DevicesNegotiableMOQ: 1
-
VCT Cable Used in the Power Circuit Device for Many Oils Place for Electrical Equipment Attached With MachineNegotiableMOQ: 1
-
Flex Spreader Cable for Electrical WiresNegotiableMOQ: 1
Spreader cable
Spreader cable for low and moderate mechanical stress,not only for power tow chains, but also for cable, reel cable and traction cable <BR> overall load weaving, preventing unnecessary distortion of the cable and forming a so-called spiral effect
Application range
For lifts, conveyors, spreaders and conveyor systems/Winding and unwinding without fixing/dry and wet indoor and outdoor use as well as industrial water
Technical Parameters
Conductor: Stranded thin wire in accordance with VDE 0295 Class 5 / IEC 60228 Category 5
Minimum bending radius:Cable with outer diameter <21.5mm 5 x OD
Cable with outer diameter >21.5mm 6.25 x outer diameter
Flexible application for reel rotation:7.5x outer diameter
Rated voltage: U0/U: 600/1000 V
Test voltage: 3000 V
Grounding protection core: yellow/green two-color grounding protection core
Temperature range: highest conductor temperature: +80 °C

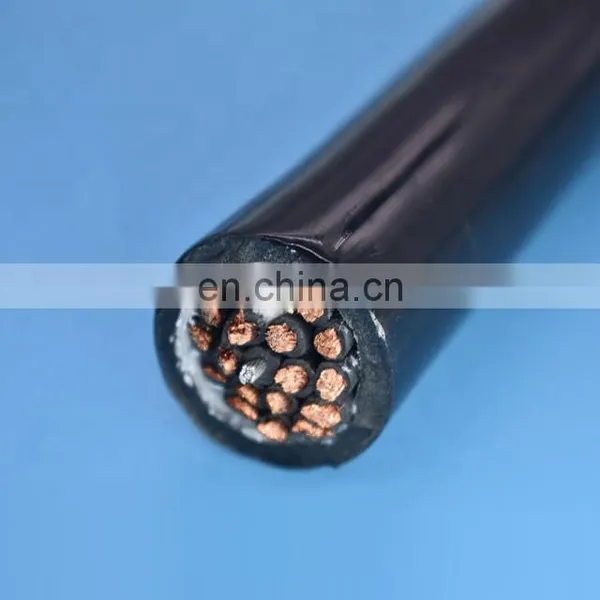

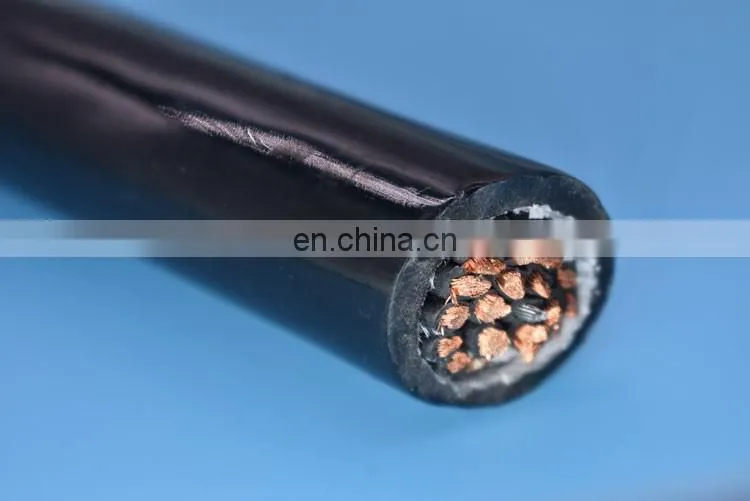

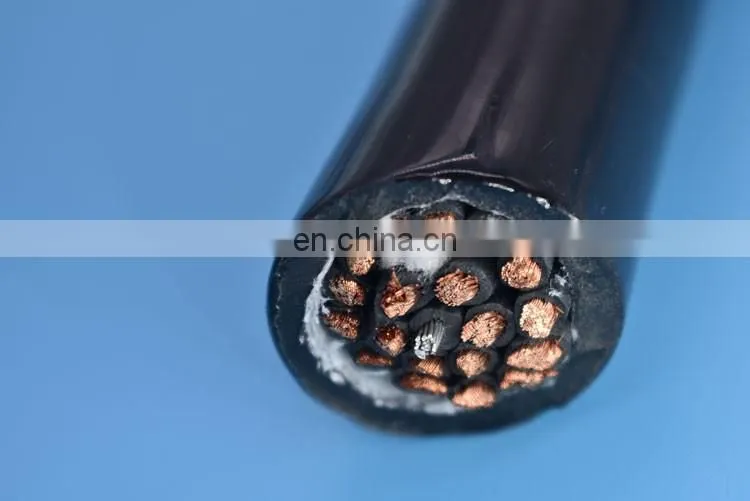

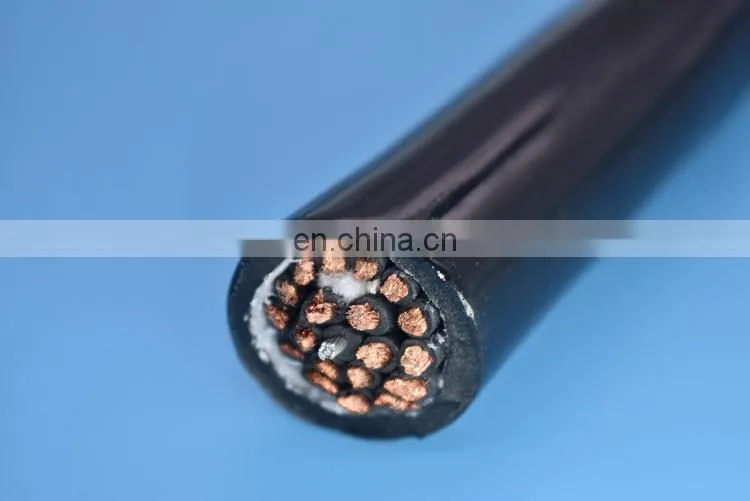

Cable structure
Bare copper/Tinned copper wire stranded wire
Core insulation: 3GI3 rubber
Outer sheath composite reinforced layer
5GM 3 rubber outer sheath
product features
Flame retardant in accordance with IEC 60332-1-2
Oil resistance according to EN 60811-2-1
Good chemical resistance, heat resistance and mechanical stress resistance
Suitable for connection of mobile devices in hazardous areas in accordance with DIN VDE 0165
