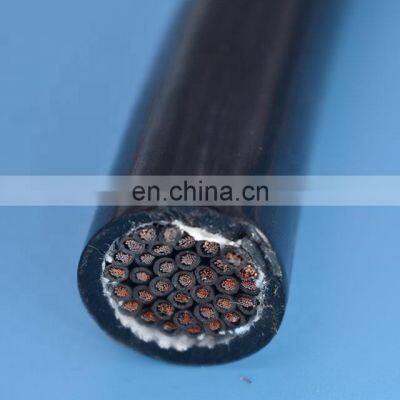

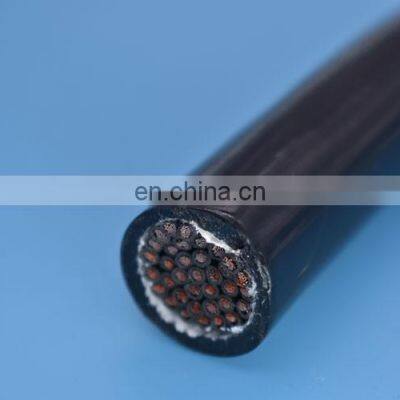

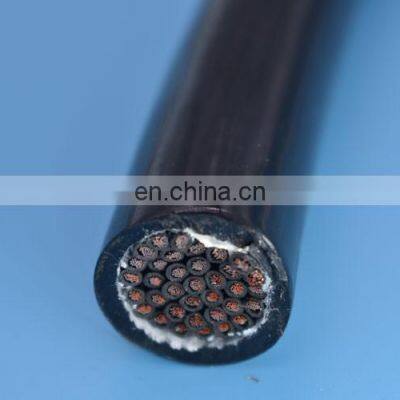

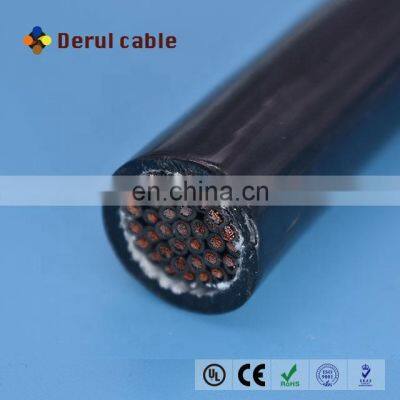

30x1.5 Flexible Spreader Cable for Crane Basket Reel Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2005
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Spreader Cable Reeling CableNegotiableMOQ: 1 -
3+1 Flexible Reeling Cable Grdgcgoeu (n)grdgcgoeuNegotiableMOQ: 1
-
Flexible PVC Trailing Cable Copper Conductor Rubber Cable Reeling CableNegotiableMOQ: 1
-
PROTOLON 4*16MM2 Crane Pendant Control Cable Construction Heavy Duty Port CableNegotiableMOQ: 1
-
Flexible PUR Cable Tower Crane Hoisting Machine Cable Spreader Basket CableNegotiableMOQ: 1
Product Description
Bending life above 1000,0000 times cables for drag chain for High Flexible Control Cables
Application:
Application range:
Trailing cables are used for high mechanical stress, especially for applications with frequent winding and unwinding with simultaneous tensile and torsional stress.
Trailing cables are frequently used in building machinery, conveyors and lifting systems, and cranes.
Trailing cables are mainly used in industrial electronic systems, automatic generation lines, warehousing equipment, robots, fire fighting systems, cranes, CNC machine tools and metallurgical industry. When equipment units need to move back and forth, in order to prevent cable entanglement, abrasion, pull-off, hanging and scattering, cables are often placed in cable tow chains to protect the cables, and the cables can also move back and forth with the tow chains.
Trial in dry or wet rooms, without the installation of free continuous reciprocating motion with strong stress relief or forced guidance, especially in frequent reciprocating motions in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveyor systems, crane applications and so on.
Shielding, PVC insulation, digital identification core wire, PVC inner and outer sheath, proven to be reliable, economical solution
information
Core products in power towline applications
Meets electromagnetic interference requirements
Application range
For power tow chains or moving mechanical parts
For measuring, controlling and regulating circuits
Power circuit in automation engineering electrical equipment
Assembly line, production line, all machines
Equipment installation engineering
Cable structure
Ultra-thin bare copper wire stranded conductor (6 types)
Core insulation: PVC
The core wire is twisted with a short pitch
PVC inner sheath, grey
Tinned copper braided shield
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)
Technical certification
Core wire based on VDE 0245 / 0285
Outer sheath in accordance with VDE 0245/0285
Transmission distance ≤ 10 m
Product Features
Low viscosity surface
Flame retardant in accordance with IEC 60332-1-2
For wet indoors
Designed for bending cycles up to 2-8 million times in a power chain
Can be used outdoors only in the specified temperature range, UV protection
*Above specifications can be adjusted to customers' needs.
Application range:
Trial in dry or wet rooms, without the installation of free continuous reciprocating motion with strong stress relief or forced guidance, especially in frequent reciprocating motions in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveyor systems, crane applications and so on.
Shielding, PVC insulation, digital identification core wire, PVC inner and outer sheath, proven to be reliable, economical solution
information
Core products in power towline applications
Meets electromagnetic interference requirements
Application range
For power tow chains or moving mechanical parts
For measuring, controlling and regulating circuits
Power circuit in automation engineering electrical equipment
Assembly line, production line, all machines
Equipment installation engineering
Cable structure
Ultra-thin bare copper wire stranded conductor (6 types)
Core insulation: PVC
The core wire is twisted with a short pitch
PVC inner sheath, grey
Tinned copper braided shield
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)
Technical certification
Core wire based on VDE 0245 / 0285
Outer sheath in accordance with VDE 0245/0285
Transmission distance ≤ 10 m
Product Features
Low viscosity surface
Flame retardant in accordance with IEC 60332-1-2
For wet indoors
Designed for bending cycles up to 2-8 million times in a power chain
Can be used outdoors only in the specified temperature range, UV protection
*Above specifications can be adjusted to customers' needs.
Detailed Images
4 CORES CABLE |
|||
No. |
DERUL00003 |
Vlotage |
300/500V |
Spec. |
4 cores |
Application |
industrial electronic systems,cranes |
Cable diameter. |
8MM |
Certification |
CE, ISO9001 |
