Product Spotlights
Its density is only about one third that of copper.
Suitable for household appliances, fans, small motors, power tools and other products that pursue lightness.
Related Products
-
Enameled Wire Enamelled Aluminum Wire Aluminum Wire WireUS$ 4.02MOQ: 500 Kilograms -
EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification SudanUS$ 4.15 - 4.25MOQ: 500 Kilograms
-
Class 180 Aluminum Wire Factory PriceUS$ 3.96 - 4.02MOQ: 500 Kilograms
-
Enameled WireUS$ 4.02MOQ: 500 Kilograms
-
Enameled Wire Enamelled Aluminum Wire Aluminum Wire WireUS$ 4.02MOQ: 500 Kilograms
Dear friend:
Hi ,kind of day!
This is Jane from Shandong Huilong Electrical Material Co.,ltd.(China)
We are a manufacture of Enamelled aluminum wire for more than 50 years. which can meet any of your needs.Our product information is as follows:
* Conductor:aluminum
* Diameter: 0.2-6.0mm Winding wire
* Standard: IEC, NEMA, GB,JIS
* Thermal Class: 130/155/180/200/220 centigrade
* Enamelled types : PEW,EIW,EI/AIW,PE/AIW and so on.
* Certification: , UL Approved, iso9001, iso14001,RoHS
As you know ,we are a manufacture ,So can save money form the middleman.
If your need, I can quote the details price to your.
maybe ，could you help me transfer it to the relevant person in charge.
Looking forward to hearing from your soon.
Best regards.
Product Description
Round Wire Diameter: 0.5mm-6(3awg-24awg)

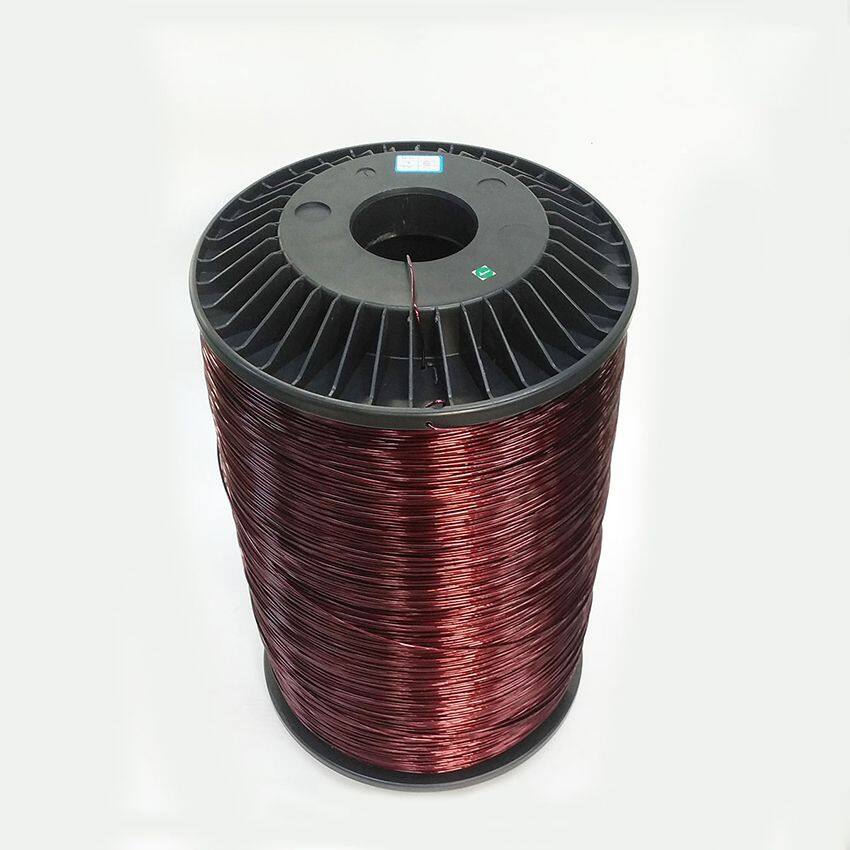

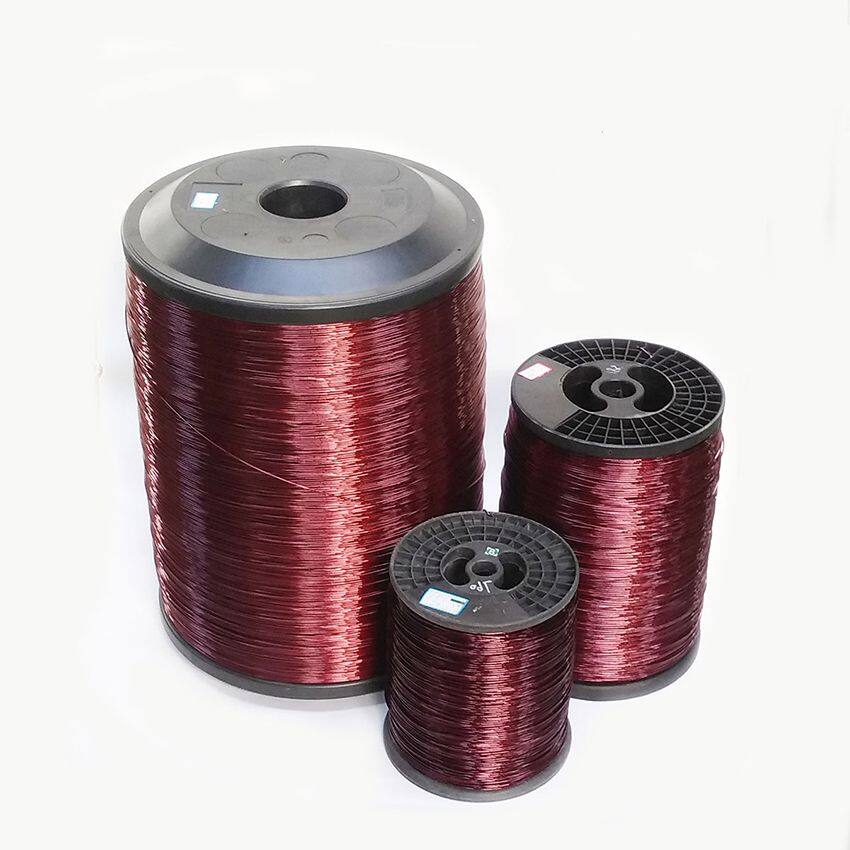

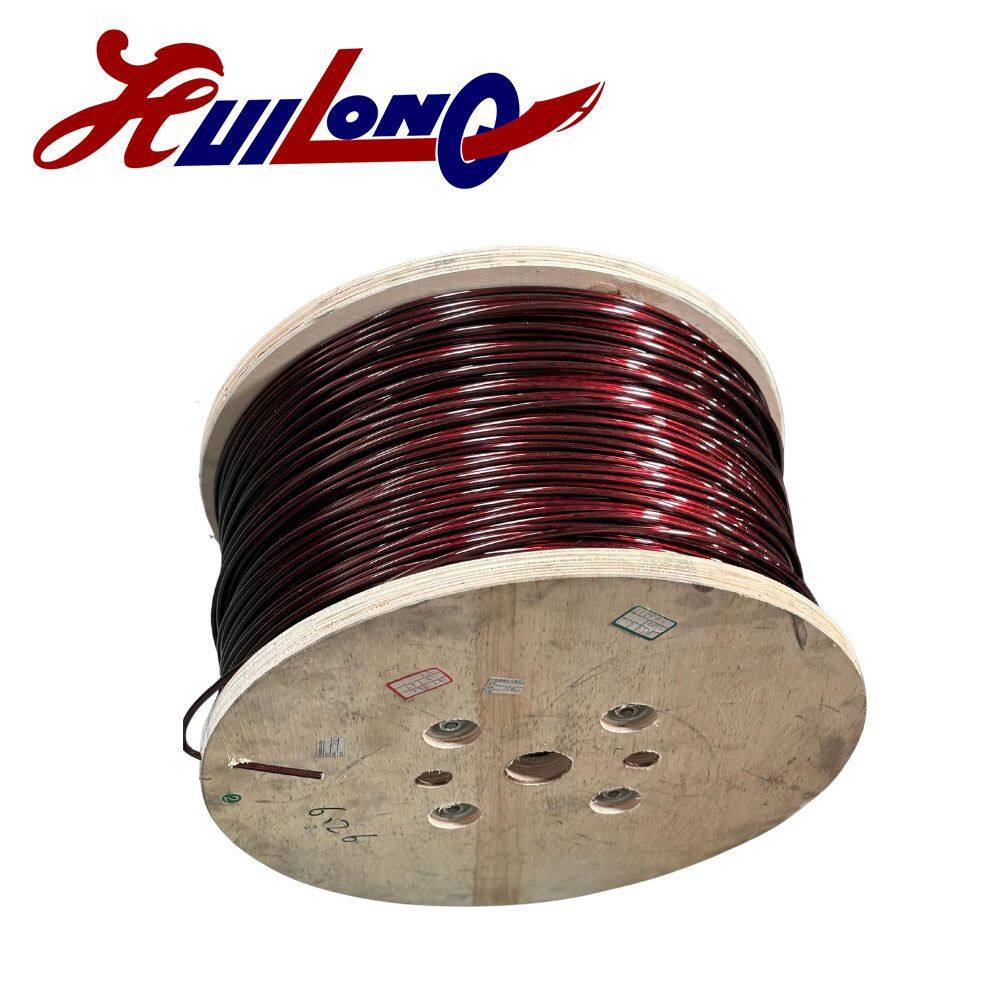

Product Name:Enameled aluminum round wire for transformer polyester imide-polyamide imide
| Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
| Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
| Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
| Cross Section Range (mm) | 0.50-6.00 |
0.50-6.00 |
0.50-6.000.50-6.00 |
0.20-6.00 |
| Insulation Thickness (IEC) |
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
| Standard |
GB/T6109.2 GB/T23312.4 IEC60317-3 |
GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 |
GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 |
GB/T6109.22 IEC60317-46 NW16 |
